Park/Neutral Position Switch
WARNING: This page is about a different car, the 2002 Toyota Avalon and 2001 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For circuit reference, see WIRING DIAGRAMS and/or CONNECTOR IDENTIFICATION
.

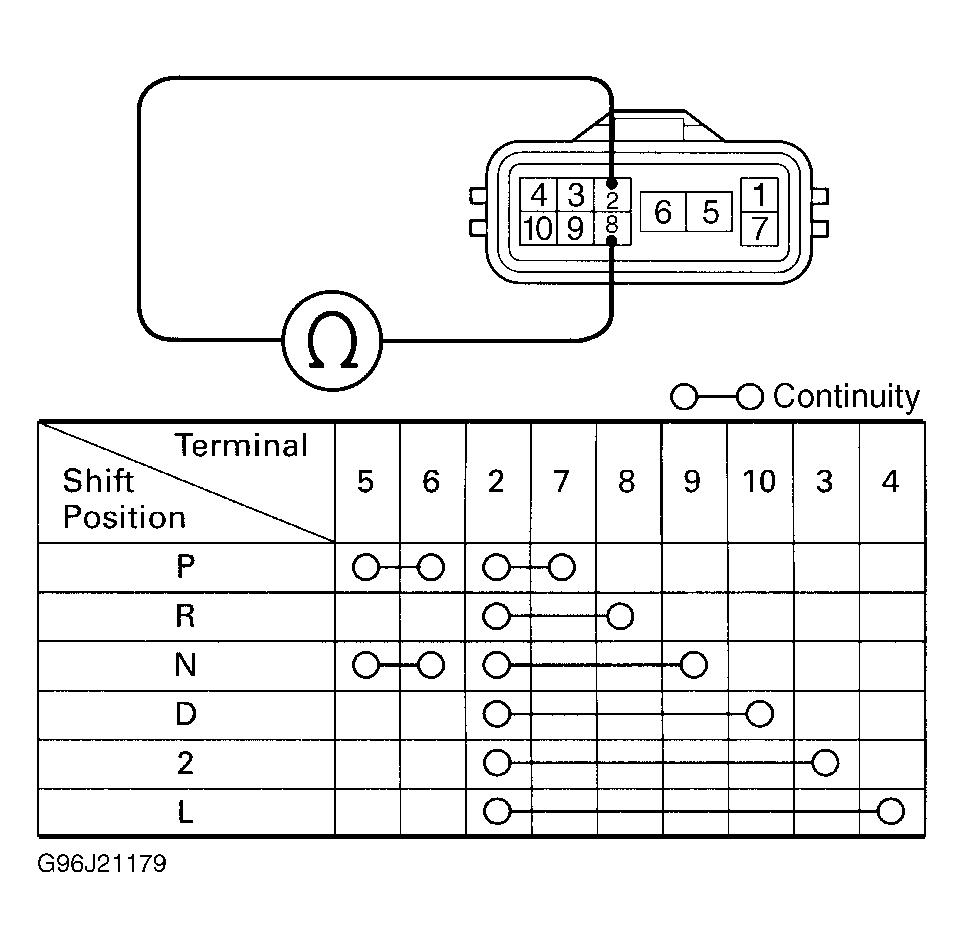

Disconnect the harness connector at Park/Neutral Position (PNP) switch. PNP switch is located on side of transaxle. Using DVOM, check for continuity between specified PNP switch terminals with gearshift lever in appropriate position. See Fig 1. Replace PNP switch if defective.
