Removal & Installation (Land Cruiser, Sequoia & Tundra V8)
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

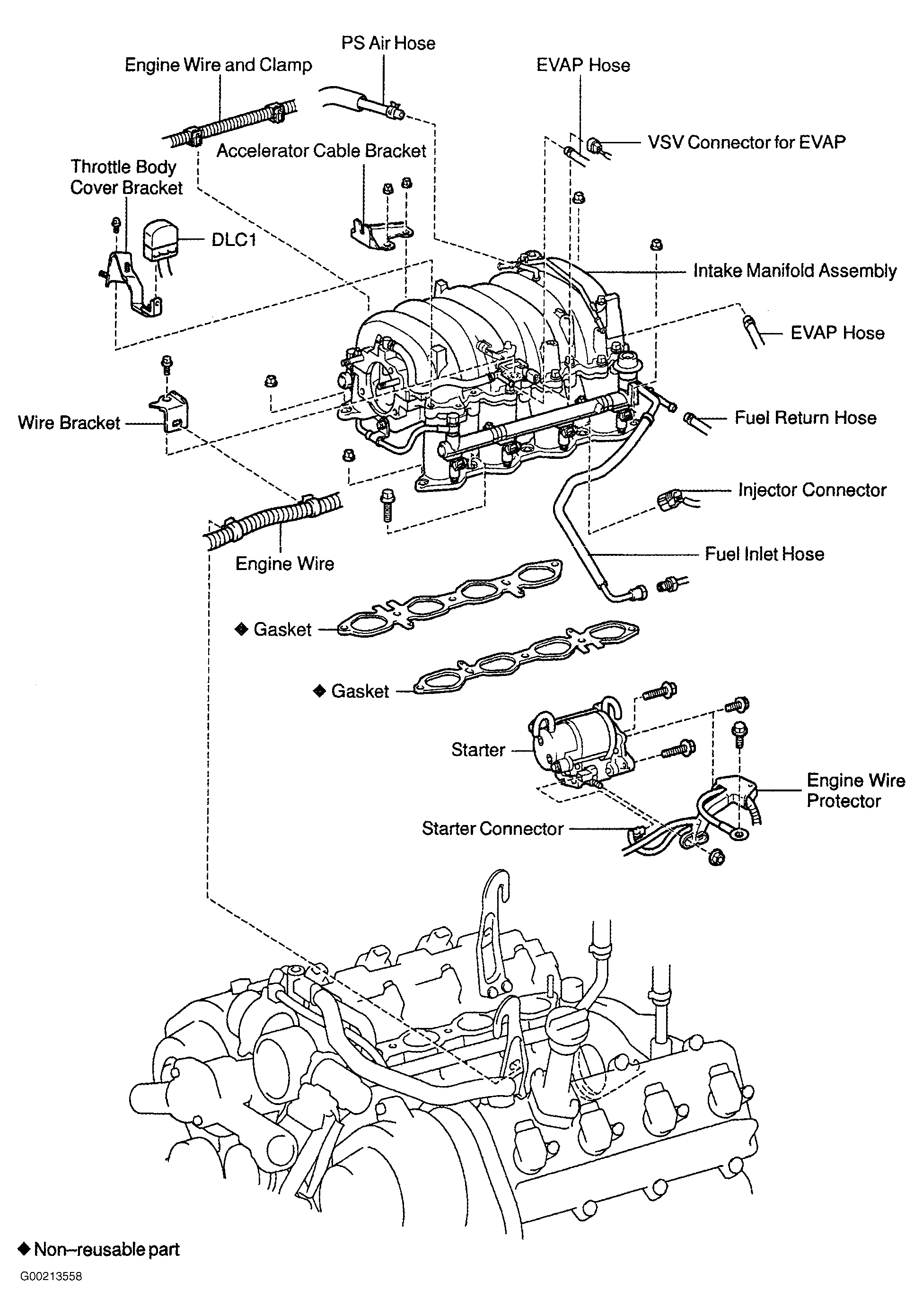

- Starter is located underneath intake manifold. See Fig 1. Disconnect negative battery cable. Remove cover from top of engine. Remove air cleaner intake hose. Disconnect accelerator cable. Remove intake manifold. See CYLINDER HEAD & MANIFOLDS in 4.7L article in ENGINES.
- Remove starter wires and remove starter. To install, reverse removal procedure. Tighten starter bolts to specification. See TORQUE SPECIFICATIONS .
