Buzzers, Relays & Timers
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
BUZZERS, RELAYS & TIMERS LOCATION
| Component | Component Location |
|---|---|
| ACC Relay | On instrument panel J/B. |
| Auto Antenna Motor Relay | Behind lower center of dash. See Figure. |
| BACK-UP LIGHT Relay | On instrument panel J/B. |

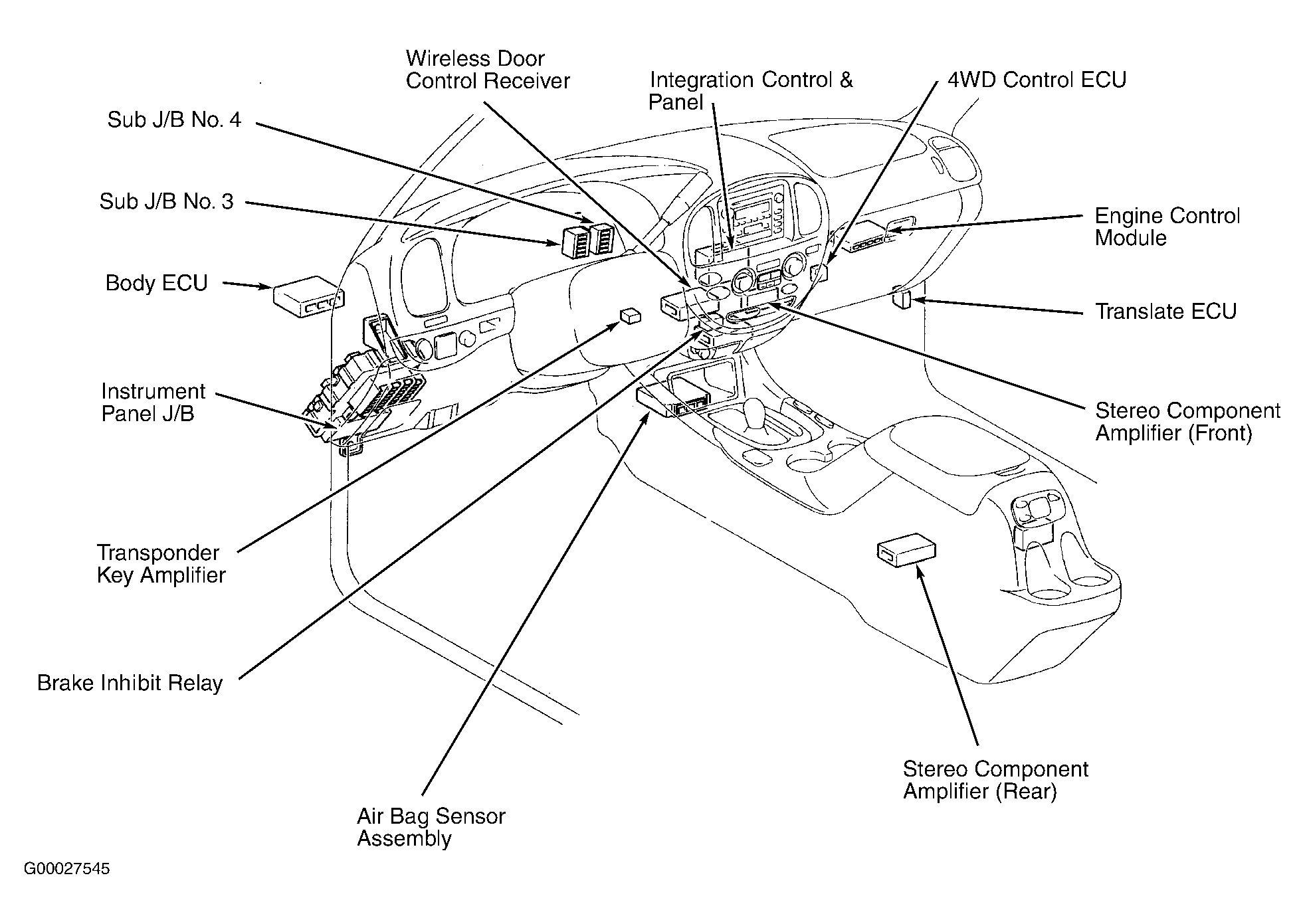

| Brake Inhibit Relay | Behind left center of dash. See Figure. |
| CDS FAN Relay | On engine room R/B No. 2. |
| C/OPN Relay | On engine room J/B. |
| DEFOG Relay | On engine room J/B. |
| DIMMER Relay | On engine room R/B No. 2. |
| DRL No. 4 Relay | On engine room R/B No. 2. |
| EFI Relay | On engine room J/B. |
| FOGLIGHT Relay | On instrument panel J/B. |
| FUEL PUMP Relay | On engine room J/B. |
| HEAD Relay | On engine room J/B. |
| HEATER Relay | On engine room R/B No. 2. |
| HORN Relay | On engine room J/B. |
| MG CLT Relay | On engine room R/B No. 2. |
| Mirror Heater Relay | Behind left end of dash, beside instrument panel J/B. See Figure. |
| POWER MAIN Relay | On instrument panel J/B. |
| RR HEATER Relay | On engine room R/B No. 2. |
| Seat Heater Relay | Behind left end of dash, below instrument panel J/B. See Figure. |
| ST Relay | On engine room R/B No. 2. |
| TAILLIGHT Relay | On instrument panel J/B. |
| Towing Converter Relay | On left side of cargo area, behind trim panel. See Figure. |
| Turn Signal Flasher Relay | Behind left end of dash, below instrument panel J/B. See Figure. |
| VSC Warning Buzzer | Behind left end of dash. See Figure. |
| Wireless Door Lock Control Buzzer | On left front of engine compartment, behind headlight. See Figure. |
