Rear Door Belt Moulding ASSY LH: Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

In the RH side, work in the same procedure as in the LH side.

REMOVE REAR DOOR BELT MOULDING ASSY LH
1. Put protective tape under the rear door belt moulding assembly LH.
2. Using a moulding remover or scraper, remove the claws and rear door belt moulding assembly LH.
HINT:

Tape the scraper tip before use.

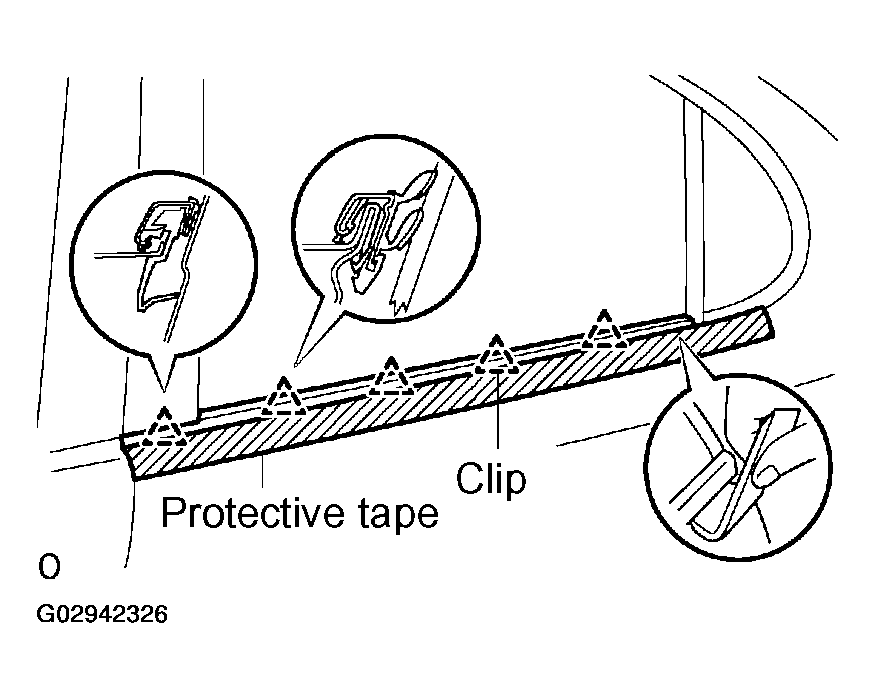

Fig 1: Removing Rear Door Moulding Assy LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
