Luggage Compartment Door Garnish Sub-ASSY Outside: Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE LUGGAGE COMPARTMENT DOOR COVER
1. Remove the 12 screws and luggage compartment door cover.
REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSY OUTSIDE
1. Remove the 4 screws.
2. Using a screwdriver, remove the luggage compartment door garnish outside.
HINT:

Tape the screwdriver tip before use.

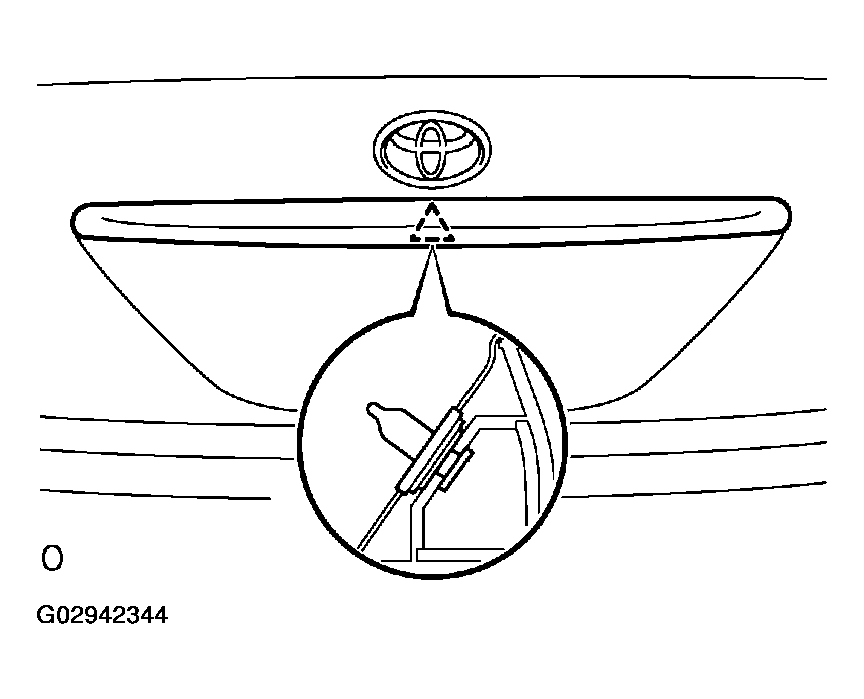

Fig 1: Removing Screws & Luggage Compartment Door Garnish Outside
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
