Front Door Belt Moulding ASSY LH: Replacement
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
In the RH side, work in the same procedure as in the LH side.
- REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY (See OVERHAUL )
- REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH (See OVERHAUL )
- REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH (See OVERHAUL )
- REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH (See OVERHAUL )
- REMOVE FRONT DOOR SERVICE HOLE COVER LH (See OVERHAUL )
- REMOVE OUTER REAR VIEW MIRROR ASSY LH (See OVERHAUL )
- REMOVE FRONT DOOR BELT MOULDING ASSY LH
- Put protective tape under the front door belt moulding assembly LH.

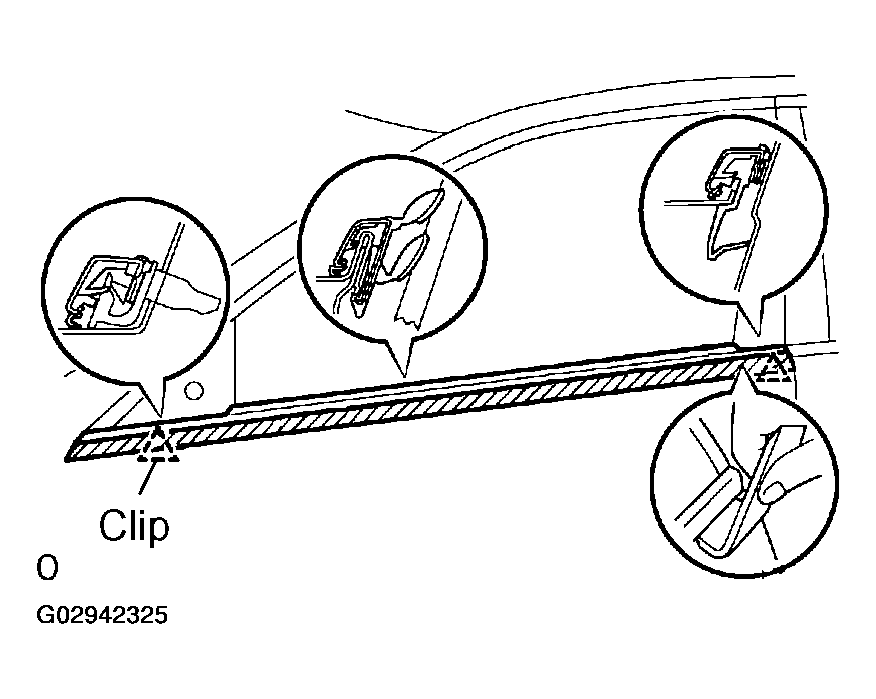

- Using a moulding remover or scraper, remove the claws and front door belt moulding assembly LH.
HINT:
Tape the scraper tip before use.
