Seat Belt Warning System (From July, 2003): Inspection

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FRONT SEAT INNER BELT ASSY LH

When fastening the seat belt (Buckle switch is OFF):

Measure the resistance between the terminals.

Standard:

FRONT SEAT INNER BELT ASSY LH (BUCKLE SWITCH OFF) TERMINAL RESISTANCE CHART

Tester connection	Specified condition
2-3	Below 1Ω

If the result is not as specified, replace the front seat inner belt assembly.

When releasing the seat belt (Buckle switch is ON):

Measure the resistance between the terminals.

Standard:

FRONT SEAT INNER BELT ASSY LH (BUCKLE SWITCH ON) TERMINAL RESISTANCE CHART

Tester connection	Specified condition
2 - 3	10 kΩ or higher

If the result is not as specified, replace the front seat inner belt assembly.

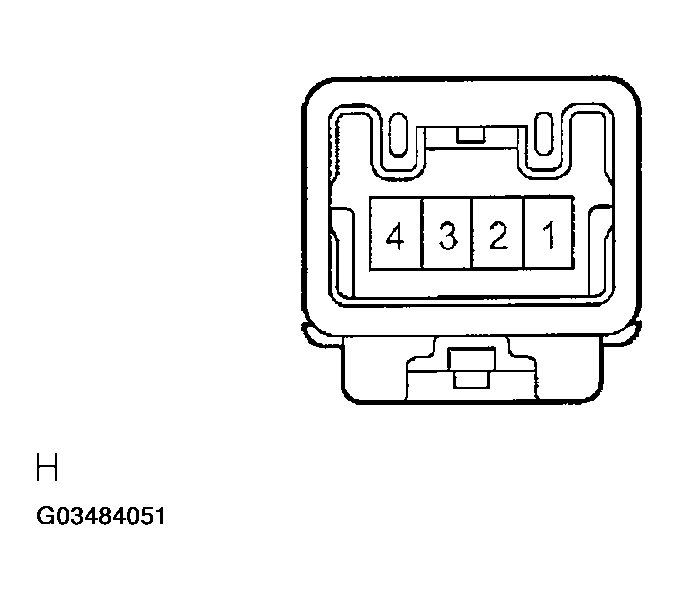

Fig 1: Identifying Front Seat Inner Belt Assy LH Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT FRONT SEAT INNER BELT ASSY RH

When fastening the seat belt (Buckle switch is ON):

Measure the resistance between the terminals.

Standard:

FRONT SEAT INNER BELT ASSY RH (BUCKLE SWITCH ON) TERMINAL RESISTANCE CHART

Tester connection	Specified condition
3 - 4	Below 1 Ω

If the result is not as specified, replace the front seat inner belt assembly.

When releasing the seat belt (Buckle switch is OFF):

Measure the resistance between the terminals.

Standard:

FRONT SEAT INNER BELT ASSY RH (BUCKLE SWITCH OFF) TERMINAL RESISTANCE CHART

Tester connection	Specified condition
3 - 4	10 kΩ or higher

If the result is not as specified, replace the front seat inner belt assembly.

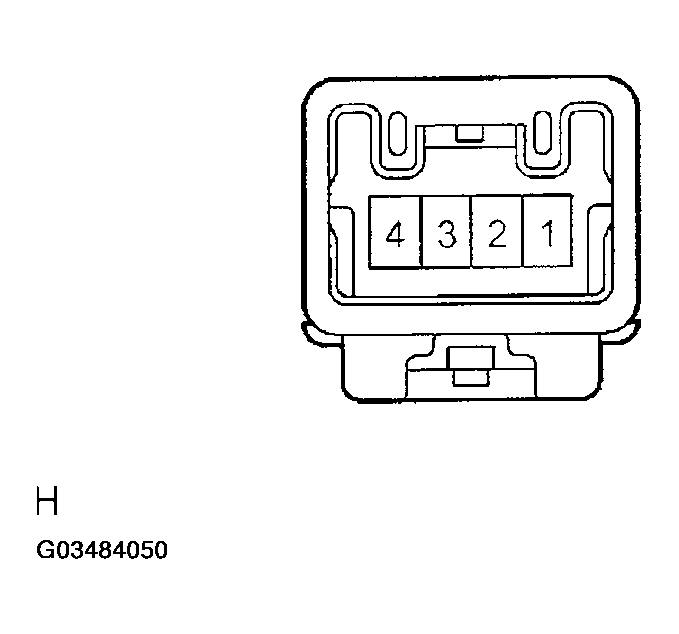

Fig 2: Identifying Front Seat Inner Belt Assy RH Connector Terminal
