Rear Seat Belt: Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

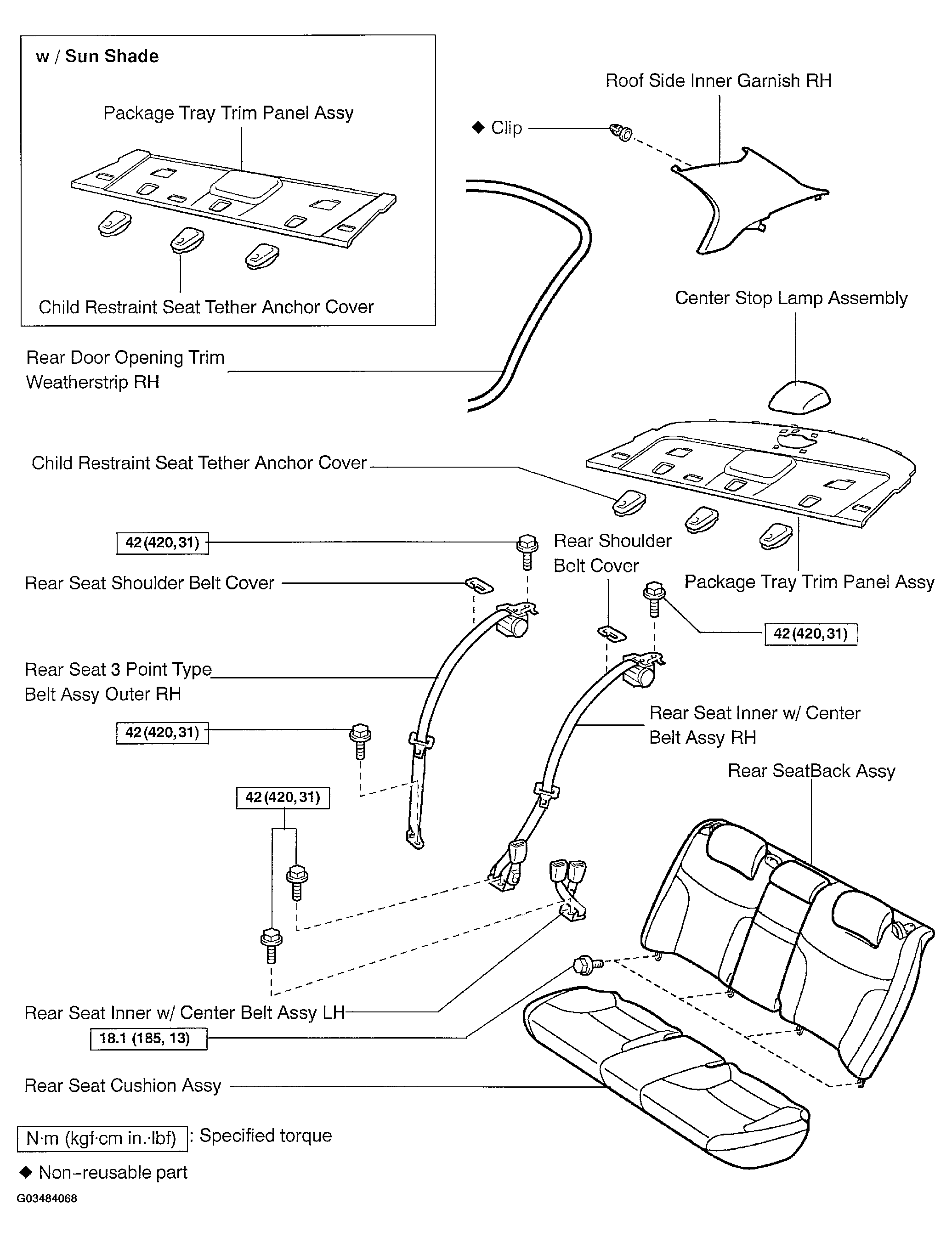

Fig 1: Identifying Rear Seat Belt Components
G03484068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
