Section 522 (Tire & Wheel): Inspection

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TIRE

Check the tires for wear and proper inflation pressure.

Cold tire inflation pressure:

INFLATION PRESSURE SPECIFICATION

Tire Size	Front, Rear kPa (kg/cm² , psi)
P215/60R16 94V	200 (2.0, 29)

Using a dial indicator, check the tire runout.
Tire runout: 1.0mm (0.039 in.) or less

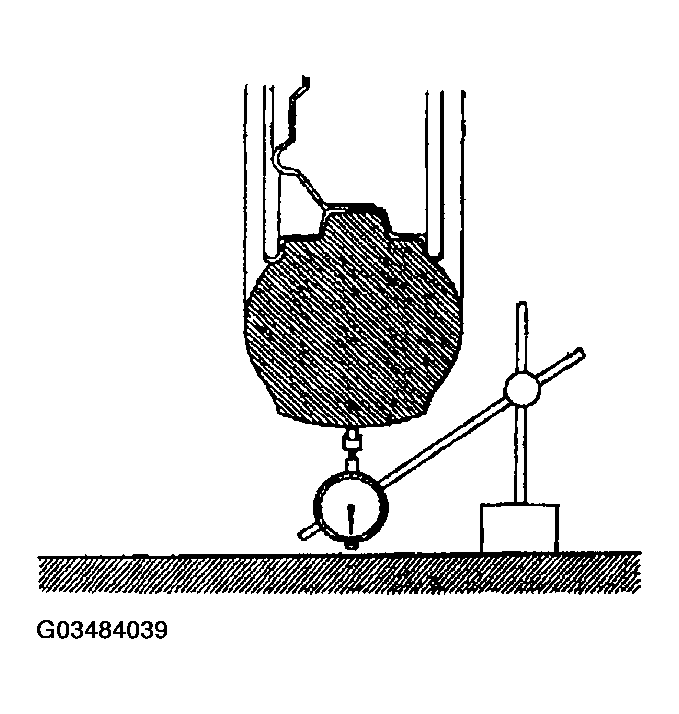

Fig 1: Checking Tire Runout Using Dial Indicator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ROTATE TIRE
HINT:
- Rotate tires as shown in Fig 2.
- Rotate as shown in (B) if the spare tire is included in the rotation.

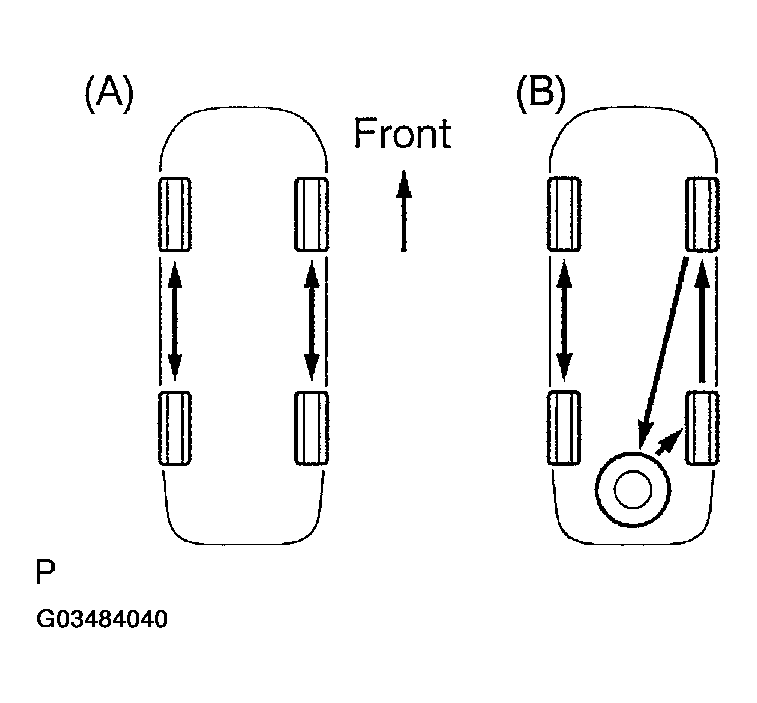

  Fig 2: Identifying Tire Rotation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT WHEEL BALANCE
1. Check and adjust the Off-the-car balance.
2. If necessary, check and adjust the On-the-car balance.
  Imbalance after adjustment: 8.0 g (0.018 lb) or less

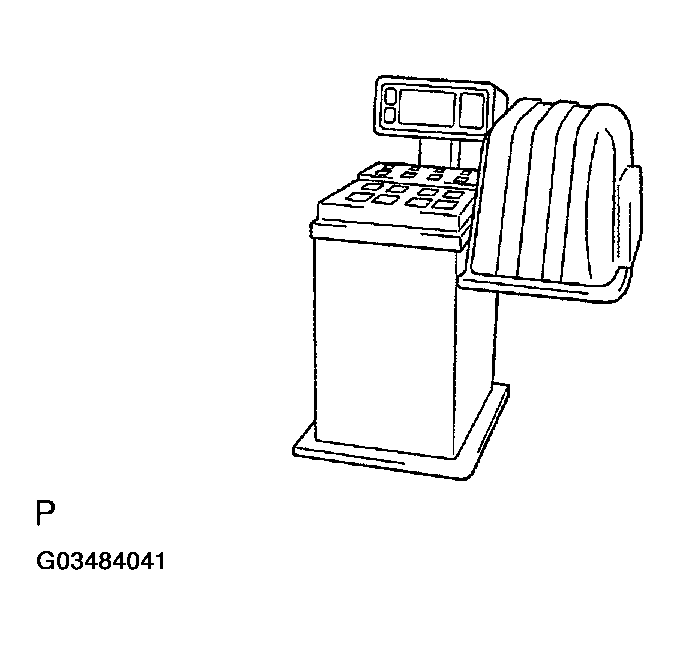

  Fig 3: Identifying Wheel Balancing Equipment
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT BEARING BACKLASH
INSPECT BEARING BACKLASH
INSPECT AXLE HUB DEVIATION
INSPECT AXLE HUB DEVIATION
