Automatic Transmission Unit: Components

WARNING: This page is about a different car, the 2003 Lexus LS 430 and 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

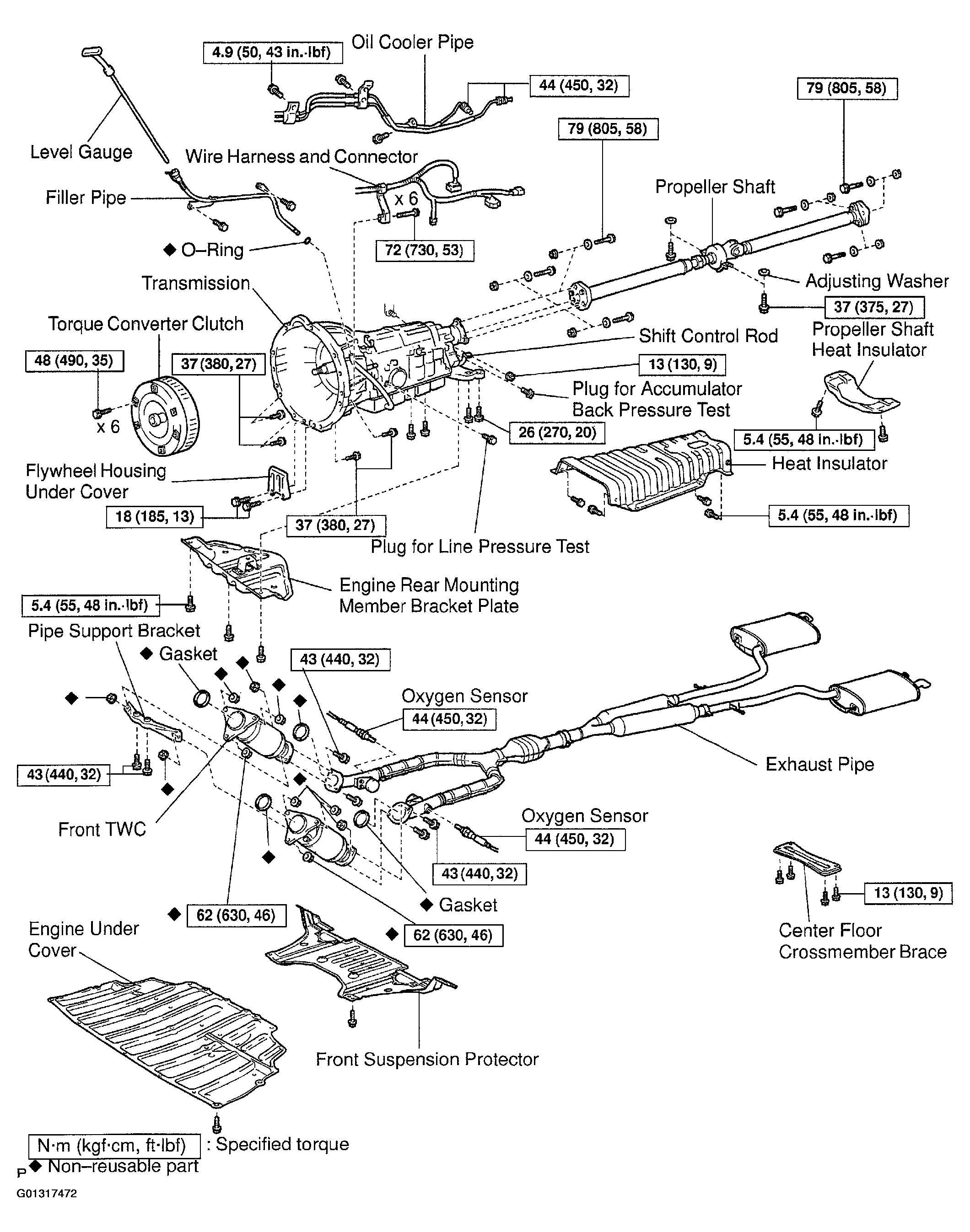

Fig 1: Automatic Transmission Unit Components With Torque Specifications
G01317472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
