Removal (RX 300)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Lexus SC 430, 2002 Lexus RX 300, 2002 Lexus LX 470, 2002 Lexus LS 430, and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
- Remove master cylinder. See MASTER CYLINDER .

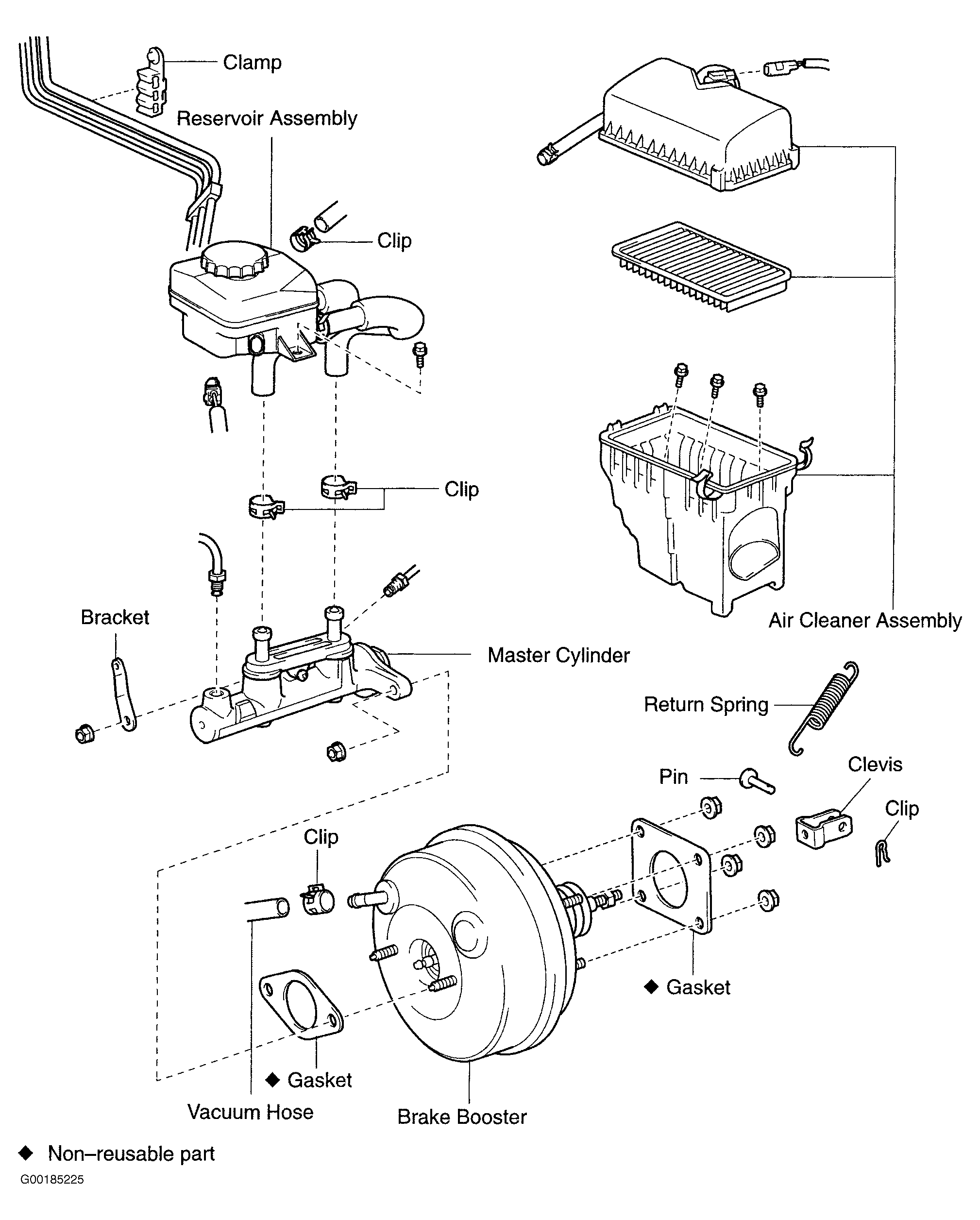

- Using pliers, slide clip and disconnect vacuum hose from brake booster and remove clip. See Fig 1.
- Disconnect brake lines from clamp and remove return spring.
- Remove clip and clevis pin.
- Remove nuts and clevis. Pull out brake booster and gasket.
