Power Brake Unit Push Rod: Es300
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Lexus SC 430, 2002 Lexus RX 300, 2002 Lexus LX 470, 2002 Lexus LS 430, and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

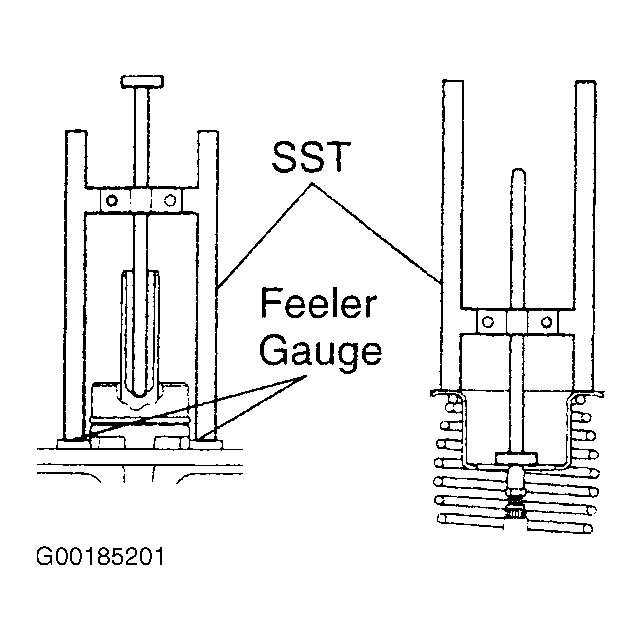

- Apply special tool (09737-00011) to master cylinder with 2 0.7 mm feeler gauges as shown in illustration. See Fig 1.
- Set special tool on master cylinder and lower pin until it slightly touches master cylinder piston.
- Apply chalk to flat surfaced tip of special tool pin. Turn special tool upside down and set it on power brake unit. Measure clearance between power brake unit push rod and pin. Clearance should be zero. If clearance is not zero, adjust power brake unit push rod length until push rod lightly touches pin head.
