Section 514 (Seat Belt PRETENSIONER (Front)): Disposal

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

When scrapping vehicles equipped with a seat belt pretensioner or disposing of a front seat outer belt (with seat belt pretensioner) always first activate the seat belt pretensioner in accordance with the procedure described below. If any abnormality occurs in the seat belt pretensioner operation, contact the SERVICE DEPT. of the TOYOTA MOTOR SALES, U.S.A., INC. When disposing of a front seat outer belt (with seat belt pretensioner) activated in a collision, follow the same procedure given in step (e) in "DISPOSAL".

CAUTION:

Never dispose of front seat outer belt which has an inactivated pretensioner.
The seat belt pretensioner produces a sizeable exploding sound when it activates, so perform the operation out-of-door and where it will not create a nuisance to nearby residents.
When activating the seat belt pretensioner, always use the specified SST. (SRS Airbag Deployment Tool) Perform the operation in a place away from electrical noise.

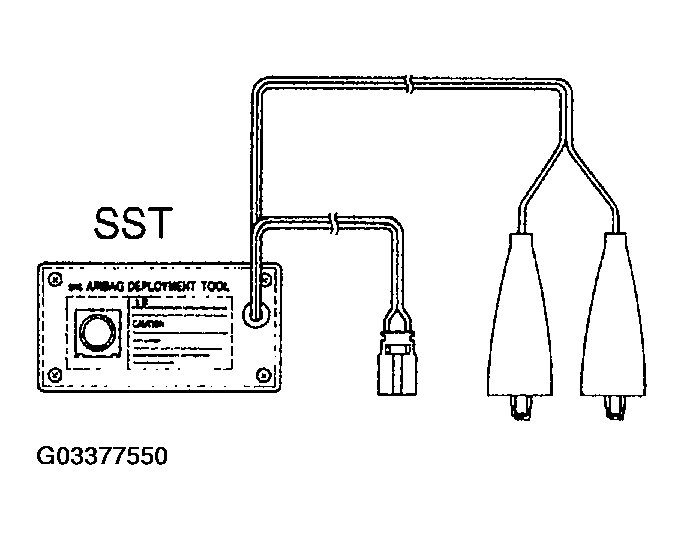

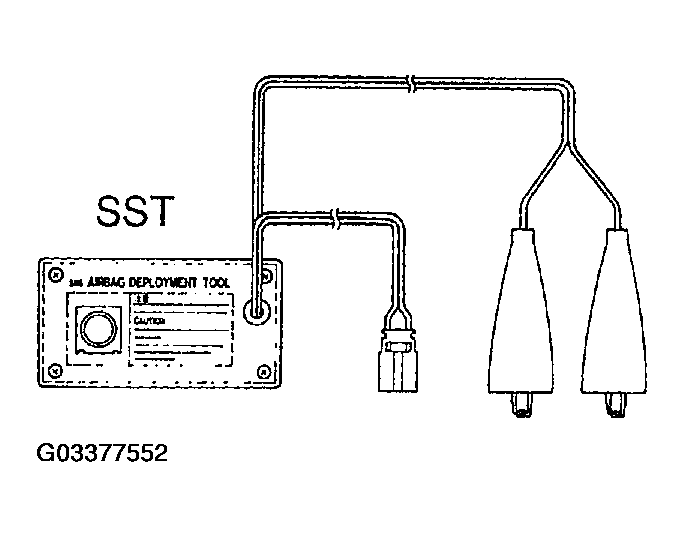

Fig 1: View Of SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09082-00700
When activating a front seat outer belt (with seat belt pretensioner), perform the operation at least 10 m (33 ft) away from the front seat outer belt.
Use gloves and safety glasses when handling a front seat outer belt with activated pretensioner.
Always wash your hands with water after completing the operation.
Do not apply water, etc. to a front seat outer belt with activated pretensioner.

SEAT BELT PRETENSIONER ACTIVATION WHEN SCRAPPING VEHICLE
HINT:

Have a battery ready as the power source to activate the seat belt pretensioner.

Fig 2: Activating Seat Belt Pretensioner
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Check the functioning of SST.
  CAUTION: When activating the seat belt pretensioner, always use the specified SST: SRS Airbag Deployment Tool.

  SST 09082-00700, 09082-00770

  Fig 3: Checking Functioning Of SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

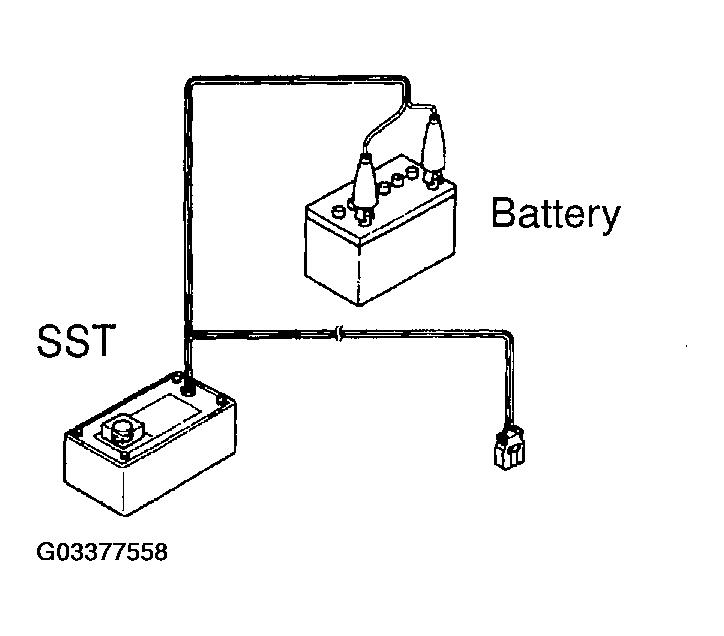

  1. Connect the SST to the battery.
    Connect the red clip of the SST to the battery positive (+) terminal and the black clip to the battery negative (-) terminal.

    HINT:

    Do not connect the yellow connector which will be connected with the seat belt pretensioner.

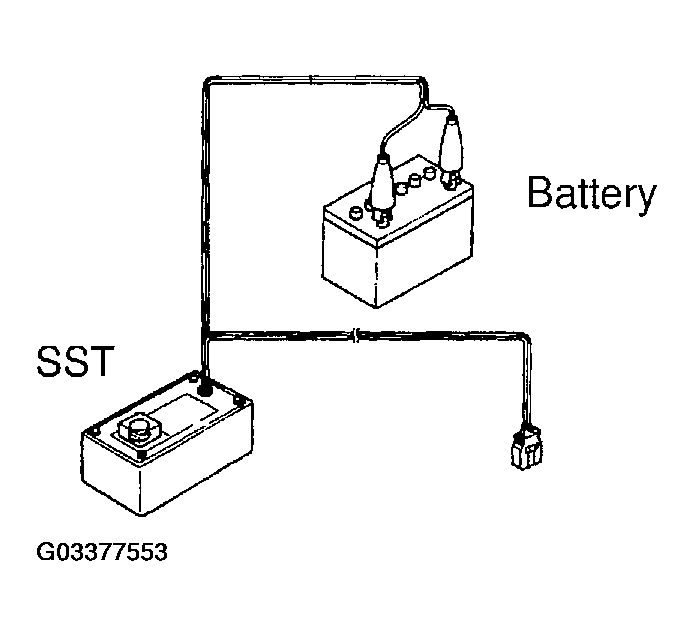

    Fig 4: Connecting SST To Battery
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Press the SST activation switch, and check the LED of the SST activation switch lights up.
  CAUTION: If the LED lights up when the activation switch is not being pressed, SST malfunction is probable, so definitely do not use the SST.
2. Disconnect the SST from the battery.
3. Disconnect the pretensioner connector.
  1. Remove the front door scuff plate.
  2. Remove the rear door scuff plate.
  3. Remove the rear part of front door opening trim.
  4. Remove the front part of rear door opening trim.
  5. Remove the center pillar lower garnish.

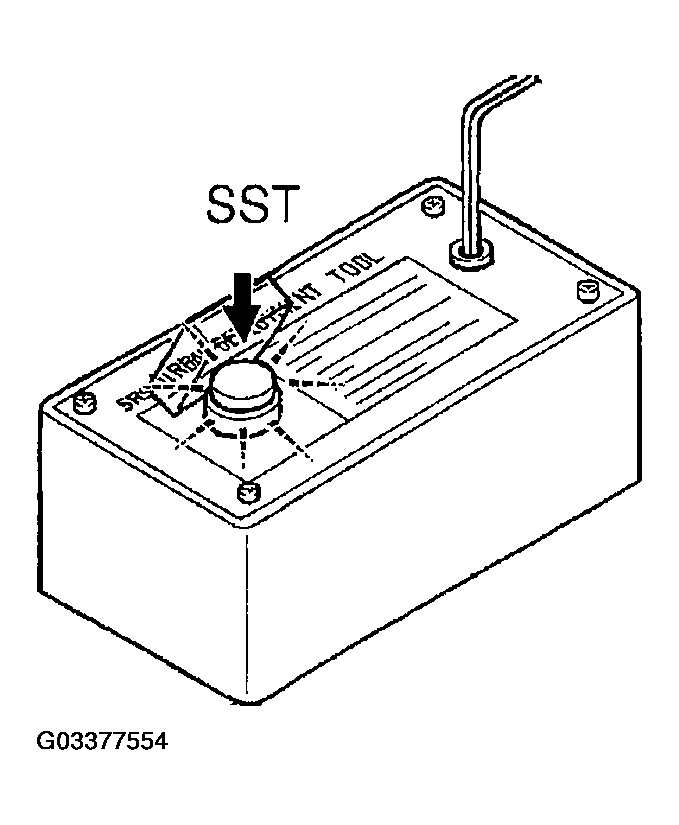

    Fig 5: Pressing SST Activation Switch
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Disconnect the pretensioner connector as shown in the illustration.
4. Install the SST.
  1. Buckle the front seat belt and check that there is no looseness and slack in the front seat inner belt and front seat outer belt.

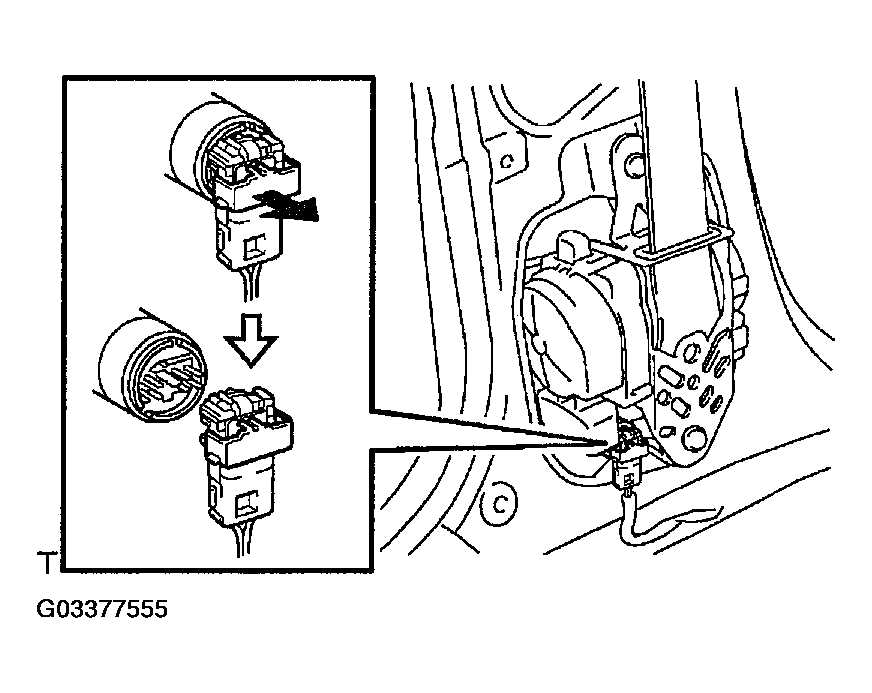

    Fig 6: Disconnecting Pretensioner Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

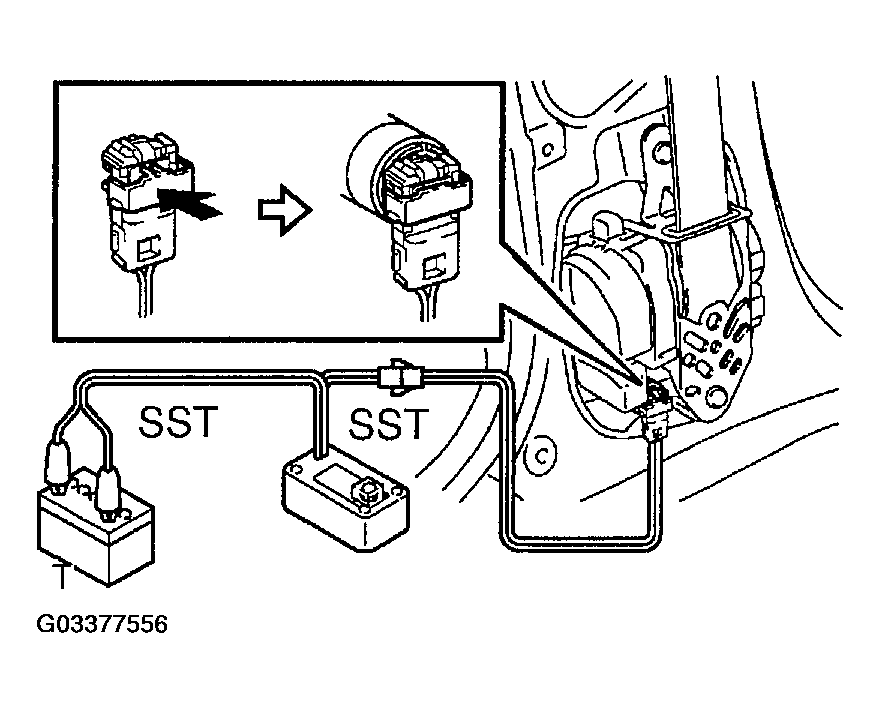

  2. Connect the 2 SST, then connect them to the seat belt pretensioner.
    SST 09082-00700, 09082-00770

    NOTE: When connecting SST to the front seat outer belt, set the locking button of the connector into the lock condition.

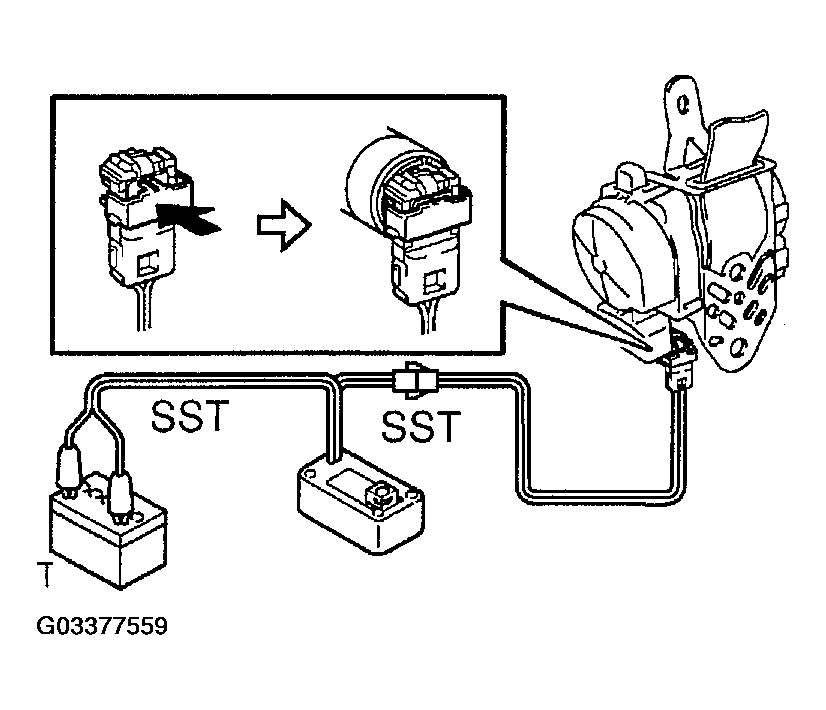

    Fig 7: Connecting 2 SST To Seat Belt Pretensioner
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Move the SST to at least 10 m (33 ft) away from the front of the vehicle.
  4. Close all the doors and windows of the vehicle.
    NOTE: Take care not to damage the SST wire harness.
  5. Connect the SST red clip to the battery positive (+) terminal and the black clip to the negative (-) terminal.
5. Activate the seat belt pretensioner.
  1. Confirm that no one is inside the vehicle or within 10 m (33 ft) area around the vehicle.
  2. Press the SST activation switch and activate the seat belt pretensioner.
  HINT:

  The seat belt pretensioner operates simultaneously as the LED of the SST activation switch lights up.
6. Dispose of front seat outer belt (with seat belt pretensioner).
  CAUTION:
  - The front seat outer belt is very hot when the seat belt pretensioner is activated, so leave it alone for at least 30 minutes after activation.
  - Use gloves and safety glasses when handling a front seat outer belt with activated seat belt pretensioner.
  - Always wash your hands with water after completing the operation.
  - Do not apply water, etc. to a front seat outer belt with activated seat belt pretensioner.

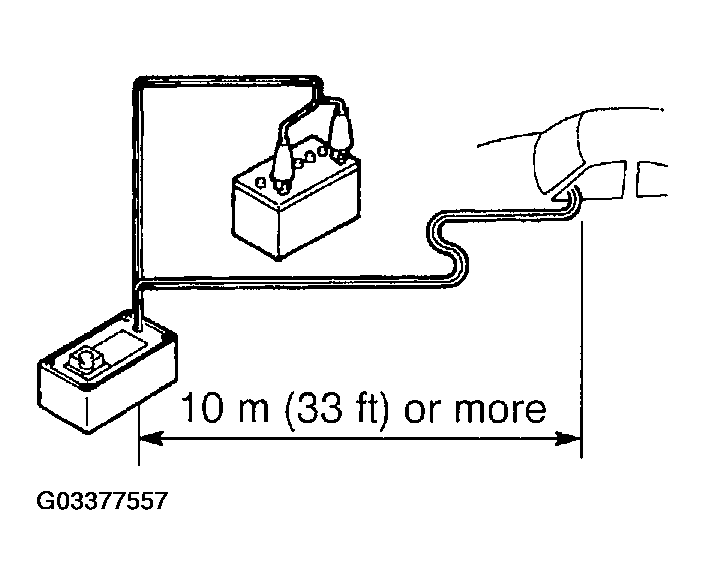

    Fig 8: Identifying Distance Of SST From Vehicle
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  HINT:

  When scrapping a vehicle, dispose the seat belt pretensioner and scrap the vehicle with activated front seat outer belt still installed.
ACTIVATION WHEN DISPOSING OF FRONT SEAT OUTER BELT ONLY
NOTE:
- When disposing of the front seat outer belt (with seat belt pretensioner) only, never use the customer's vehicle to activate the seat belt pretensioner.
- Be sure to follow the procedure given below when activating the seat belt pretensioner.
HINT:

Have a battery ready as the power source when activating the seat belt pretensioner.
1. Remove the front seat outer belt (See SEAT BELT ).
  HINT:

  Cut the belt near the seat belt retractor.
2. Check functioning of SST (See step a).
  SST 09082-00700,09082-00770

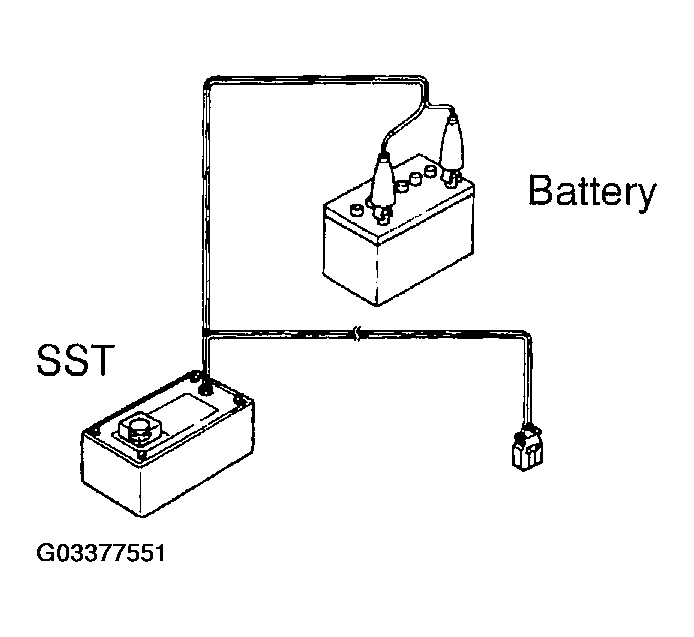

  Fig 9: Connecting SST To Battery
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the SST.
  1. Connect the 2 SST, then connect them to the seat belt pretensioner.
    SST 09082-00700, 09082-00770

    NOTE: When connecting SST to the front seat outer belt, set the locking button of the connector into the lock condition.

    Fig 10: Connecting 2 SST To Seat Belt Pretensioner
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Place the front seat outer belt on the ground and cover it with the disc wheel with tire.
    NOTE: lace the front seat outer belt as shown in the illustration.
  3. Move the SST as least 10 m (33 ft) away from the disc wheel.
    NOTE: Take care not to damage the SST wire harness.
4. Activate the seat belt pretensioner.

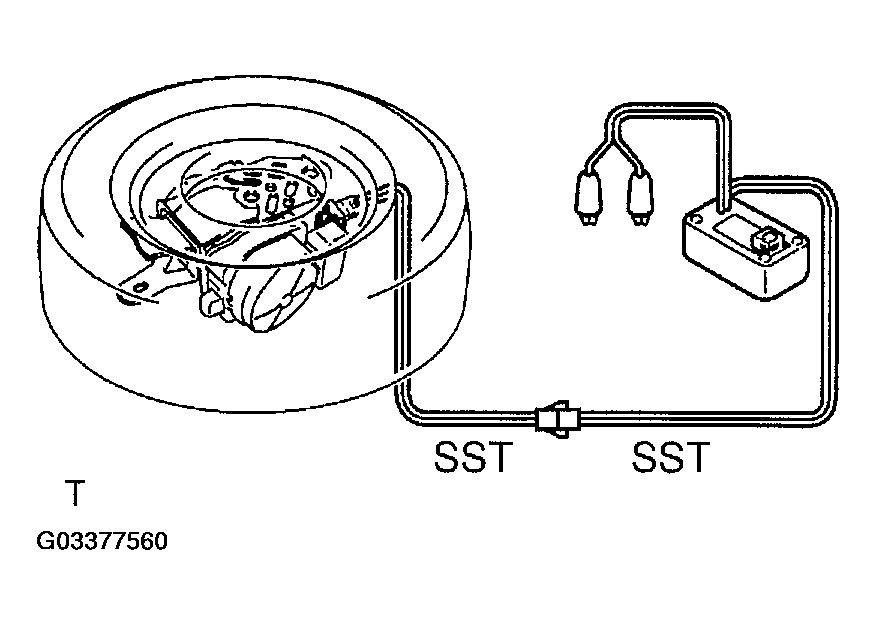

  Fig 11: Covering Front Seat Outer Belt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the SST red clip to the battery positive (+) terminal and black clip to the battery negative (-) terminal.
  2. Check that no one is within 10 m (33 ft) area around the disc wheel.
  3. Press the SST activation switch and activate the seat belt pretensioner.
    HINT:

    The seat belt pretensioner operates simultaneously as the LED of the SST activation switch lights up.

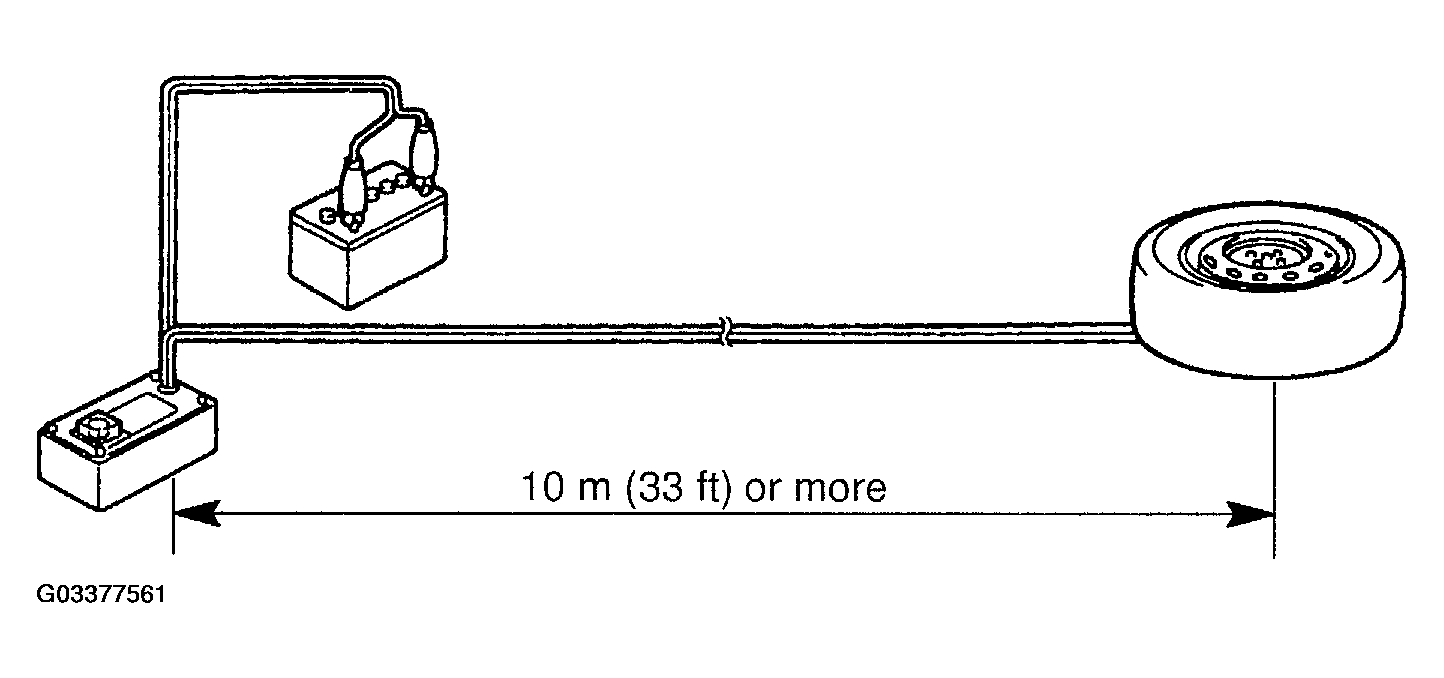

    Fig 12: Identifying Distance Between Disc Wheel And SST
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Dispose of front seat outer belt (with seat belt pretensioner).
  CAUTION:
  - The front seat outer belt is very hot when the seat belt pretensioner is activated, so leave it alone for at least 30 minutes after activation.
  - Use gloves and safety glasses when handling a front seat outer belt with activated seat belt pretensioner.
  - Always wash your hands with water after completing the operation.
  - Do not apply water, etc. to a front seat outer belt with activated seat belt pretensioner.
  1. Remove the disc wheel and SST.

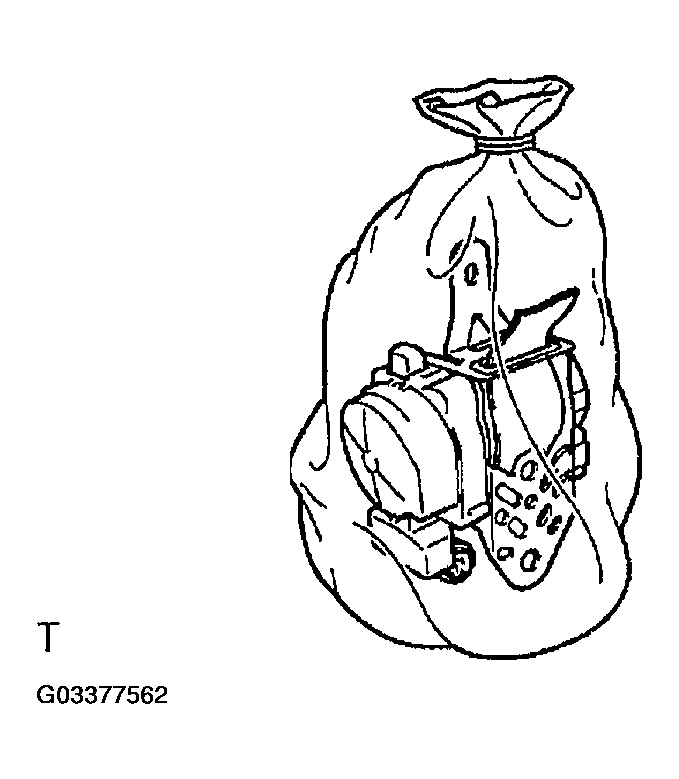

  2. Place the front seat outer belt in a vinyl bag, tie the end tightly and dispose of it in the same way as other general parts.

    Fig 13: Disposing Front Seat Outer Belt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
