Section 511 (Rear Seat (Fixed Type)): Components

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

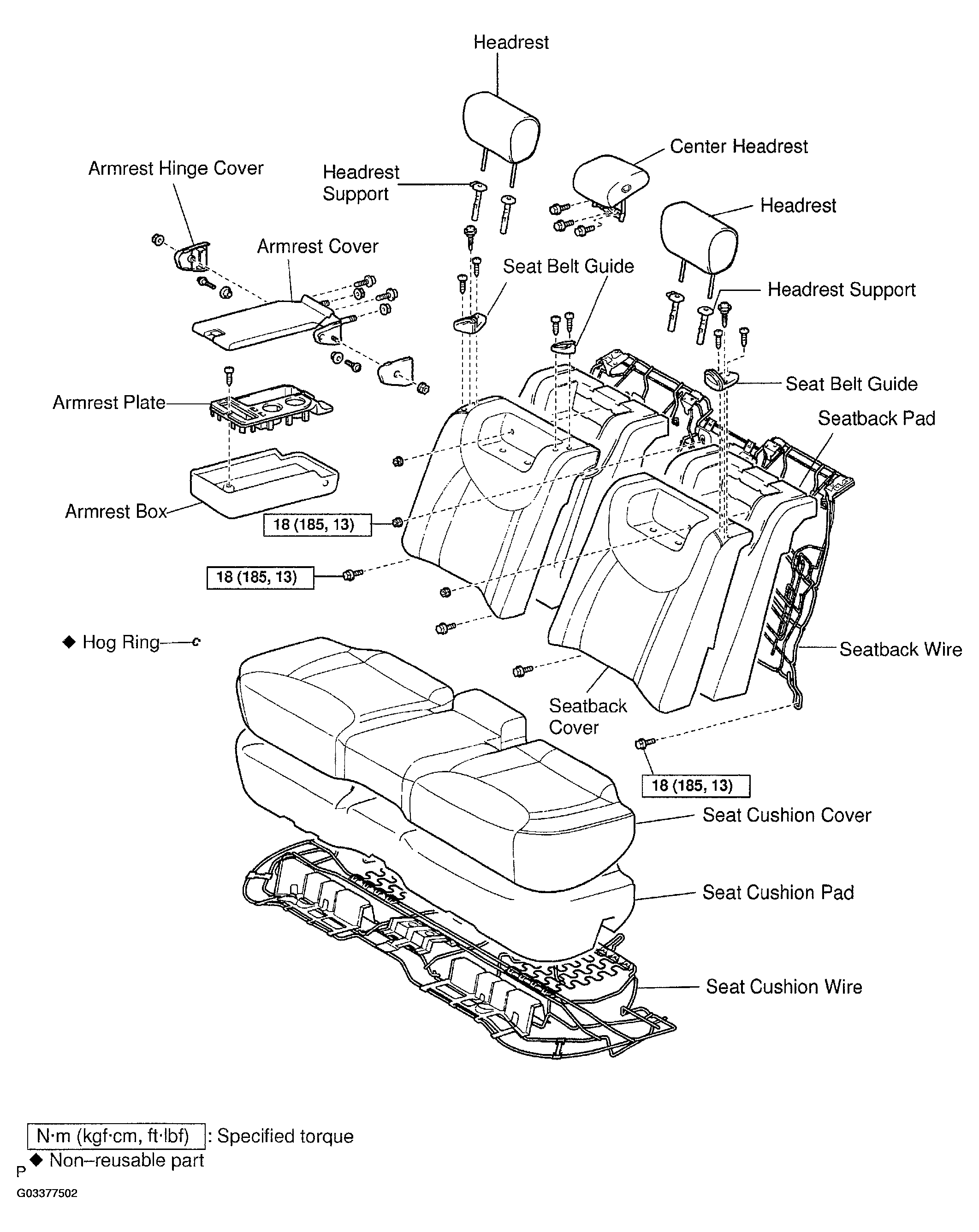

Fig 1: Identifying Rear Seat (Fixed Type) Components
G03377502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
