Inspect Sliding Roof Glass Alignment
WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
- Start the engine and check the operation time of the sliding roof.
Operation time:
Approx. 6 sees.
- Check for abnormal noise or binding during operation.
- With the sliding roof fully closed, check for water leakage.

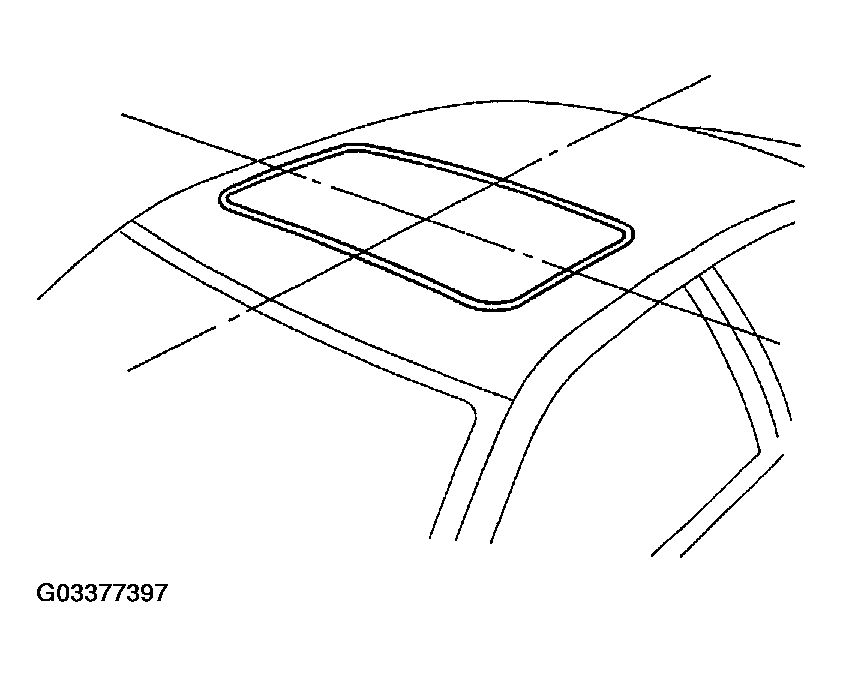

- Check for a difference in level between the sliding roof weatherstrip and roof panel.
Front end:
1.5 mm (-0.059 in.)
+ 0.5 mm ( + 0.020 in.)
Side end:
+/- 1.0 mm (+/- 0.039 in.)
Rear end:
- 0.5 mm (- 0.020 in.)
+ 1.5 mm (+ 0.059 in.)
