Section 507 (Garage Door Opener System): Inspection

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT GARAGE DOOR OPENER
Press the switch and check that each LED (red) lights up.

Even if only one switch is found not to light up, replace it.

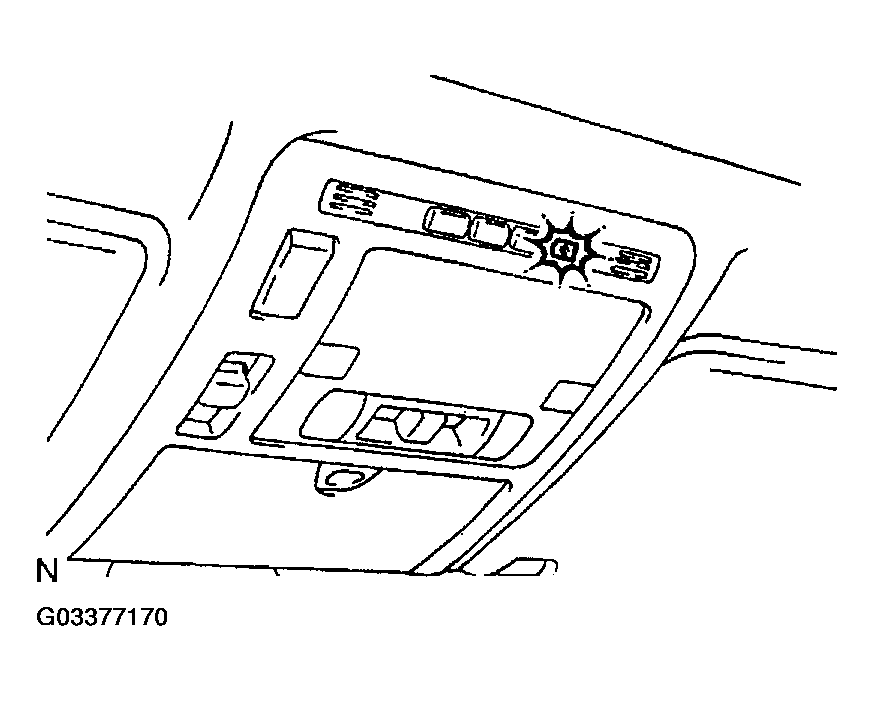

Fig 1: Identifying Led (RED) Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT GARAGE DOOR OPENER REGISTRATION AND TRANSMITTING
HINT:

Use the home link tester made by KENT MORE for this test. As it is necessary to record the code of the hand held transmitter, customer's code will be erased. When the inspection completes, please register the customer's again.
1. Check that the code of hand held transmitter for inspection can be recorded.
  If the code can not be registered, replace garage door opener.

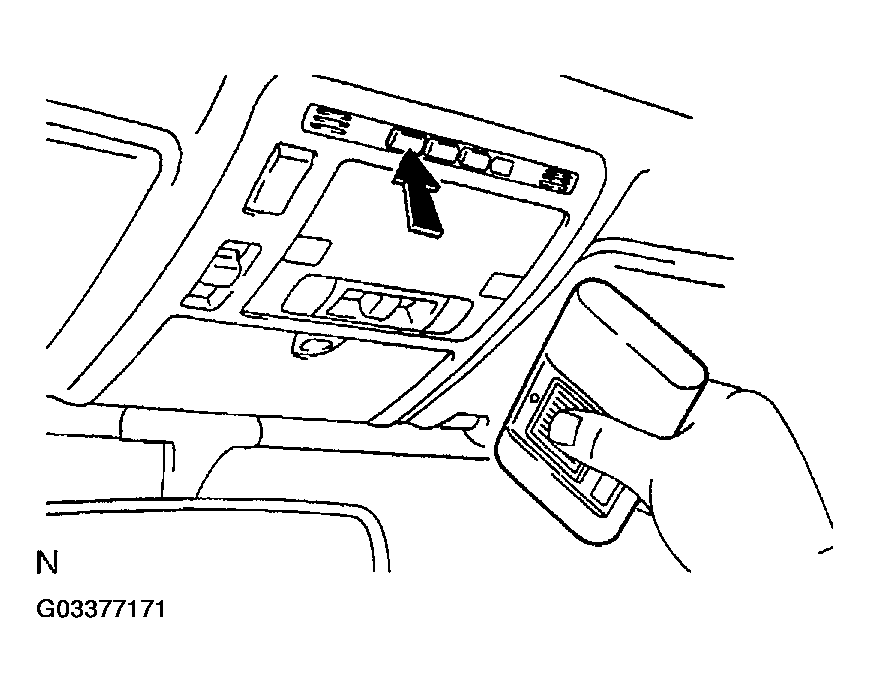

  Fig 2: Identifying Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Press the switch which an inspection code has been registered for and check that LED (green) of the home link tester lights up.
  If the LED (green) does not light up, replace the garage door opener.

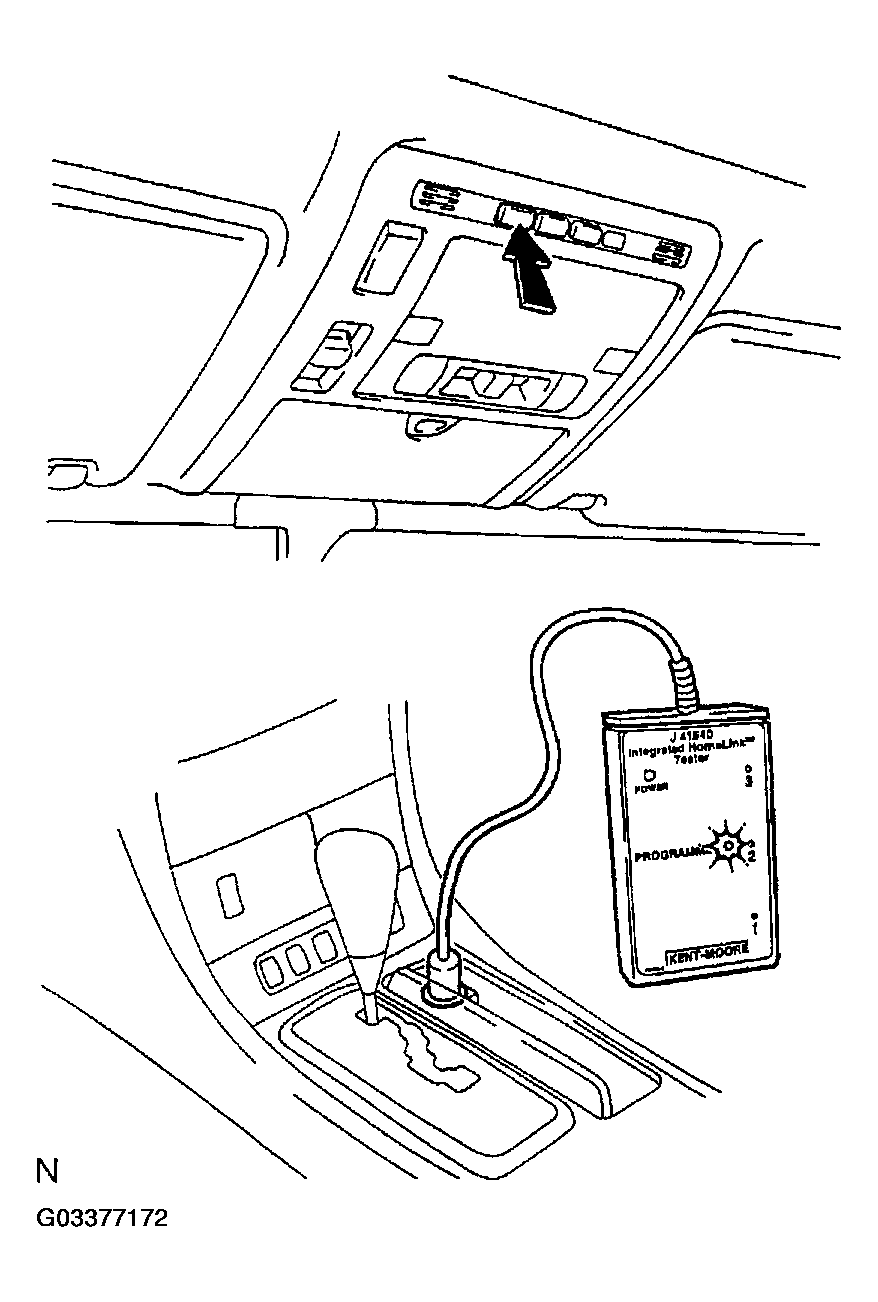

  Fig 3: Connecting Home Link Tester
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
