Section 502 (Luggage Compartment Door Closer System): Inspection

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

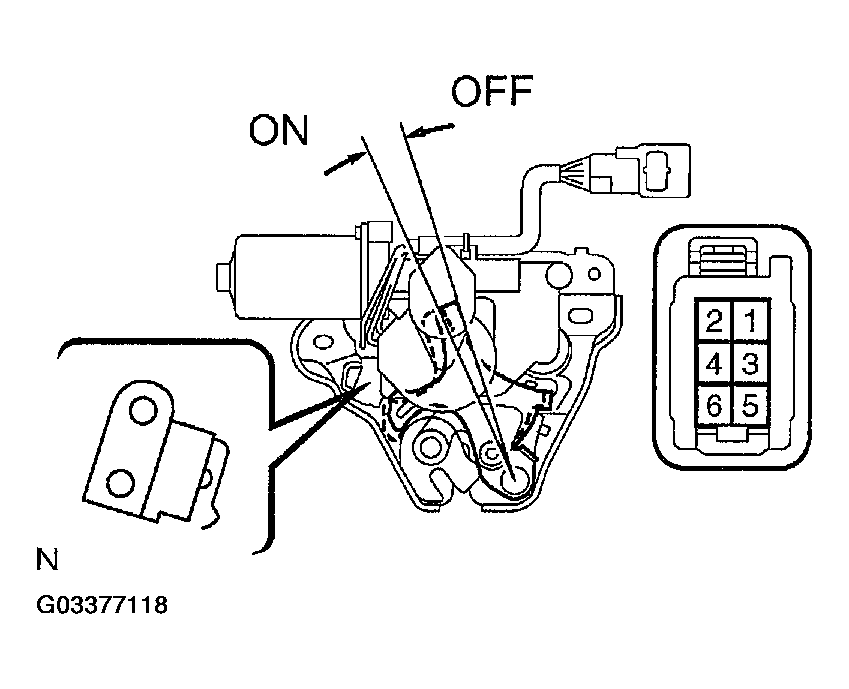

INSPECT LUGGAGE CLOSER (Courtesy switch)

INSPECTION LUGGAGE CLOSER (Courtesy switch)

Switch position	Tester connection	Specified condition
OFF	-	No continuity
ON	3 - 4	Continuity

If continuity is not as specified, replace the luggage closer assembly.

Fig 1: Inspecting Luggage Closer (Courtesy Switch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT LUGGAGE CLOSER MOTOR OPERATION

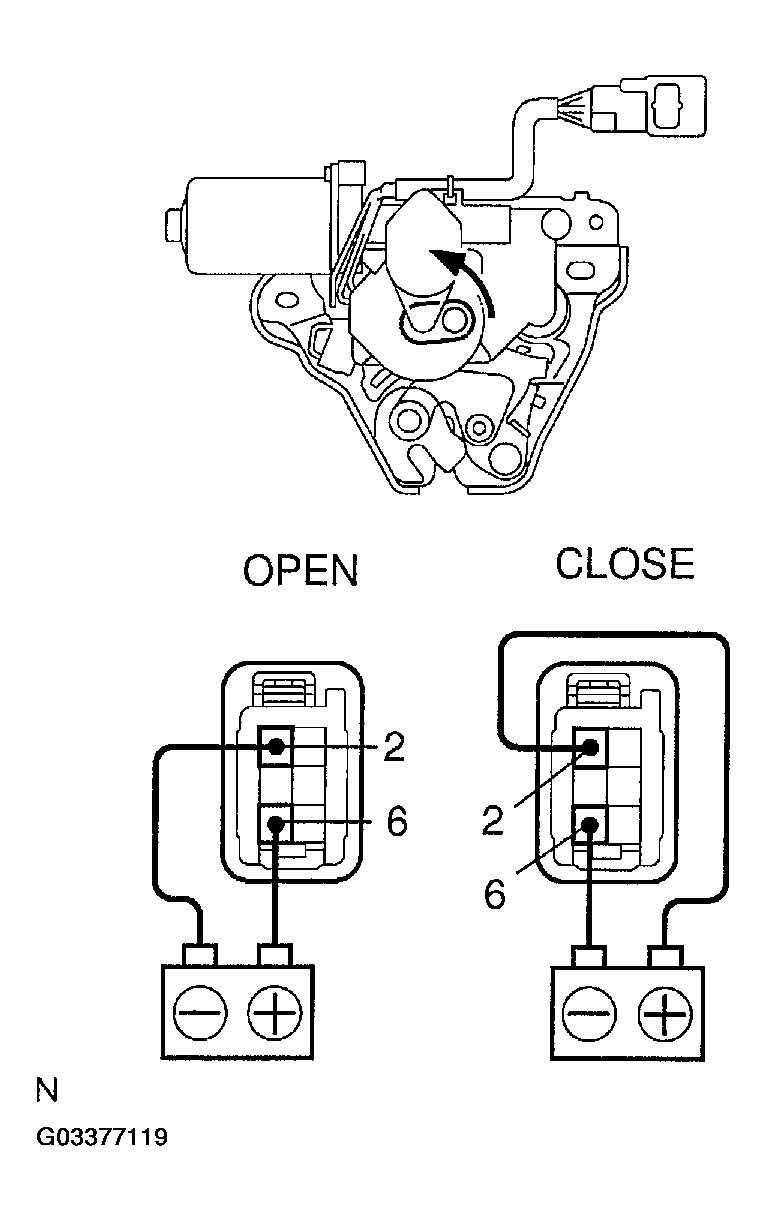

1. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 2, and check that the door lock link moves to OPEN position.
2. Reverse the polarity and check that the door lock link moves to CLOSE position.
  If operation is not as specified, replace the luggage closer assembly.

  Fig 2: Inspecting Luggage Closer Motor Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

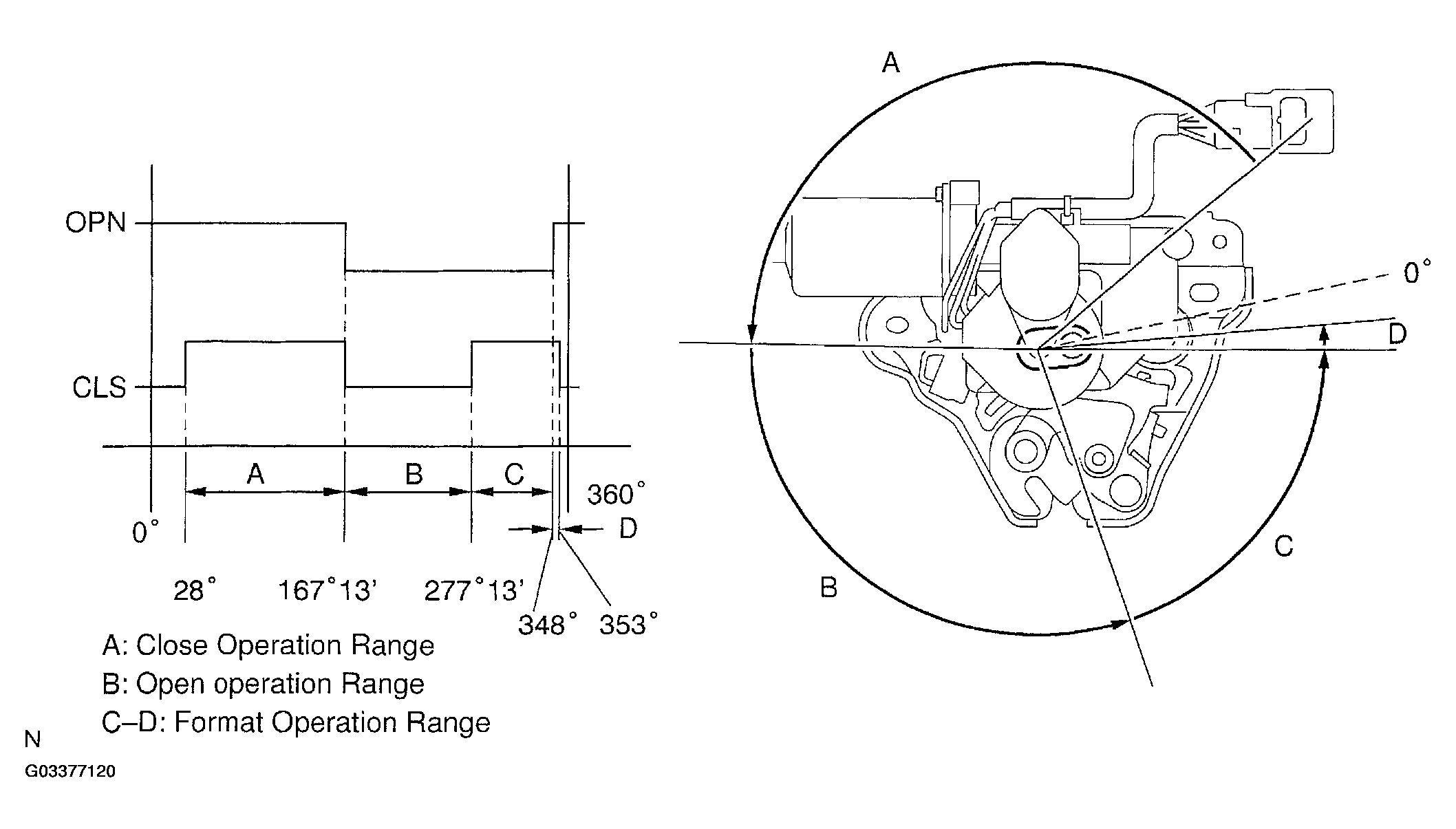

  Fig 3: Identifying Luggage Closer Motor Operation Angle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

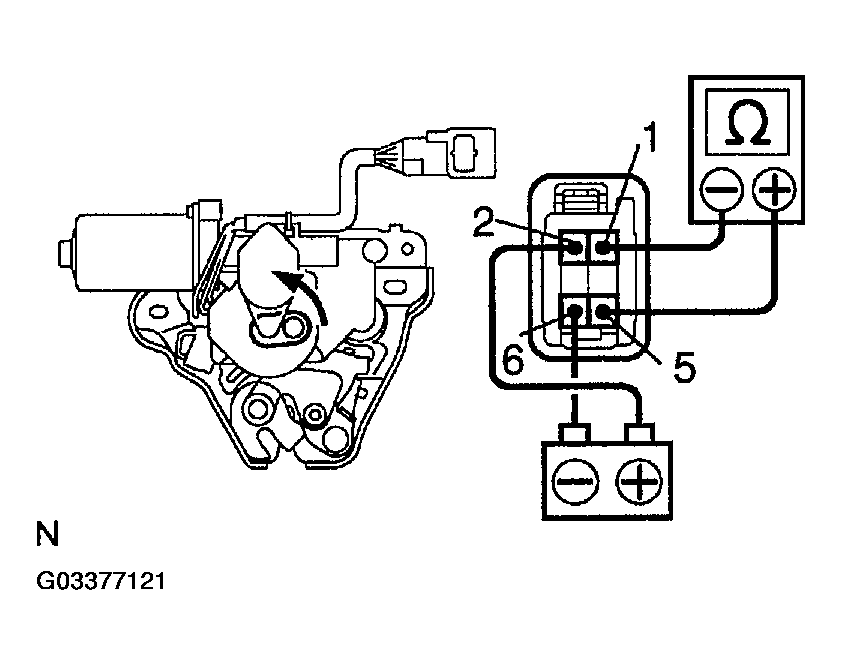

INSPECT LUGGAGE CLOSER UNLOCK POSITION SWITCH
1. Connect the positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 6.
2. Connect the positive (+) lead from the ohmmeter to terminal 5 and negative (-) lead to terminal 1.
3. Check that the continuity exists when the motor turns counter clockwise.

  Fig 4: Inspecting Luggage Closer Unlock Position Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

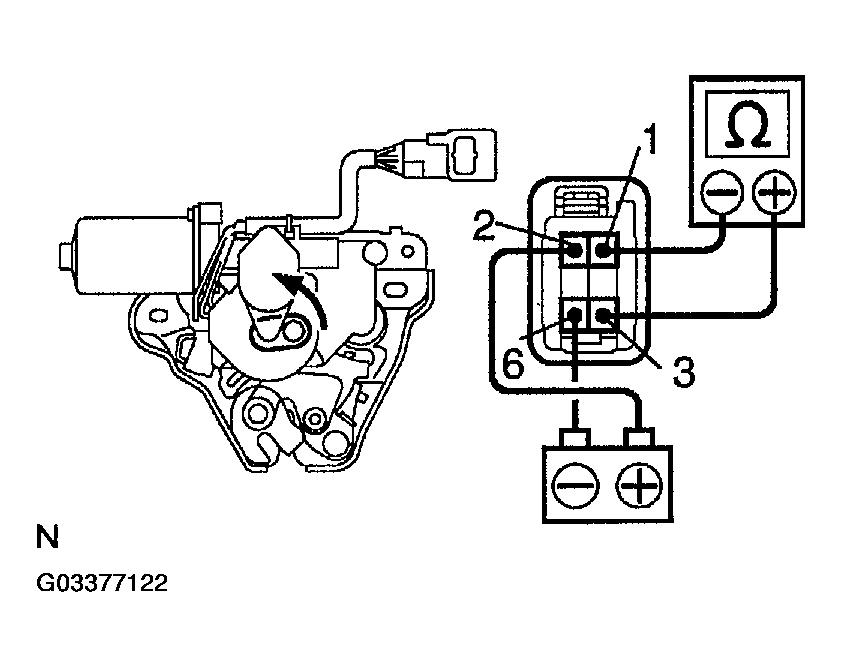

INSPECT LUGGAGE CLOSER LOCK POSITION SWITCH

Connect the positive (+) lead from the battery to terminal 3 and negative (-) lead to terminal 6.
Connect the positive (+) lead from the ohmmeter to terminal 5 and negative (-) lead to terminal 1.

Check that the continuity exists when the motor turns counter clockwise.

Fig 5: Inspecting Luggage Closer Lock Position Switch

SWITCH POSITION

Switch position	1 - 3 (Tester connection)	5 - 1 (Tester connection)
A	Continuity	No continuity
B	Continuity	No continuity
C	No continuity	Continuity
D	No continuity	Continuity

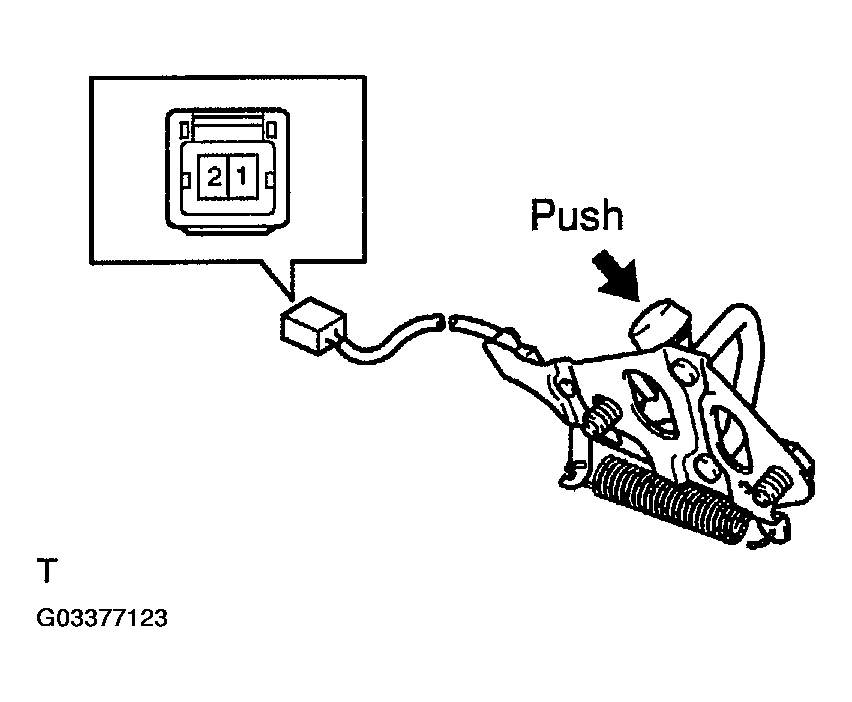

INSPECT STRIKER SWITCH
1. Check that continuity exists between terminals with the switch ON.
2. Check that no continuity exists between terminals with the switch OFF.

  Fig 6: Inspecting Striker Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
