Refrigerant Line: Location

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

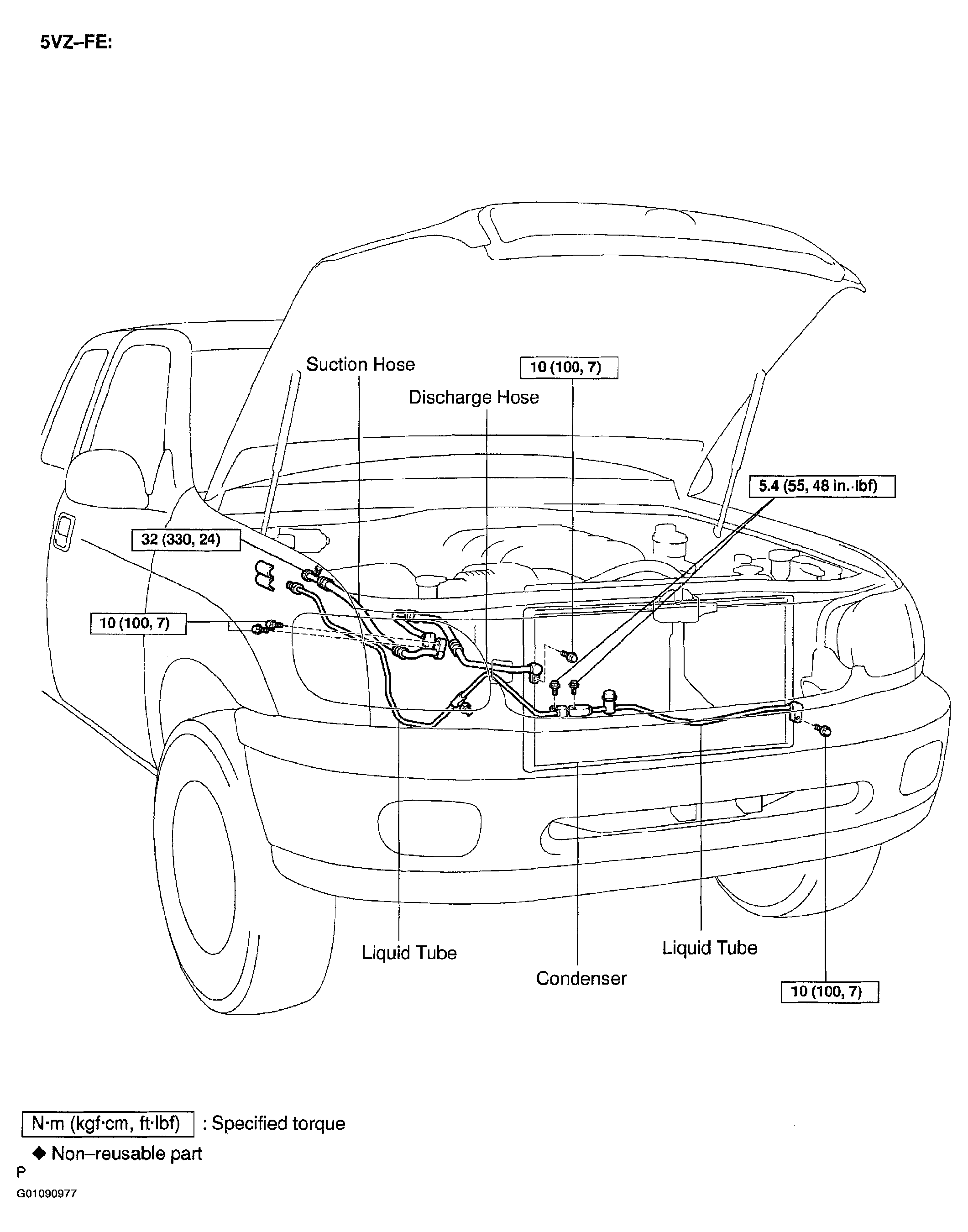

Fig 1: Locating Refrigerant Line Components (5VZ-FE)
G01090977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

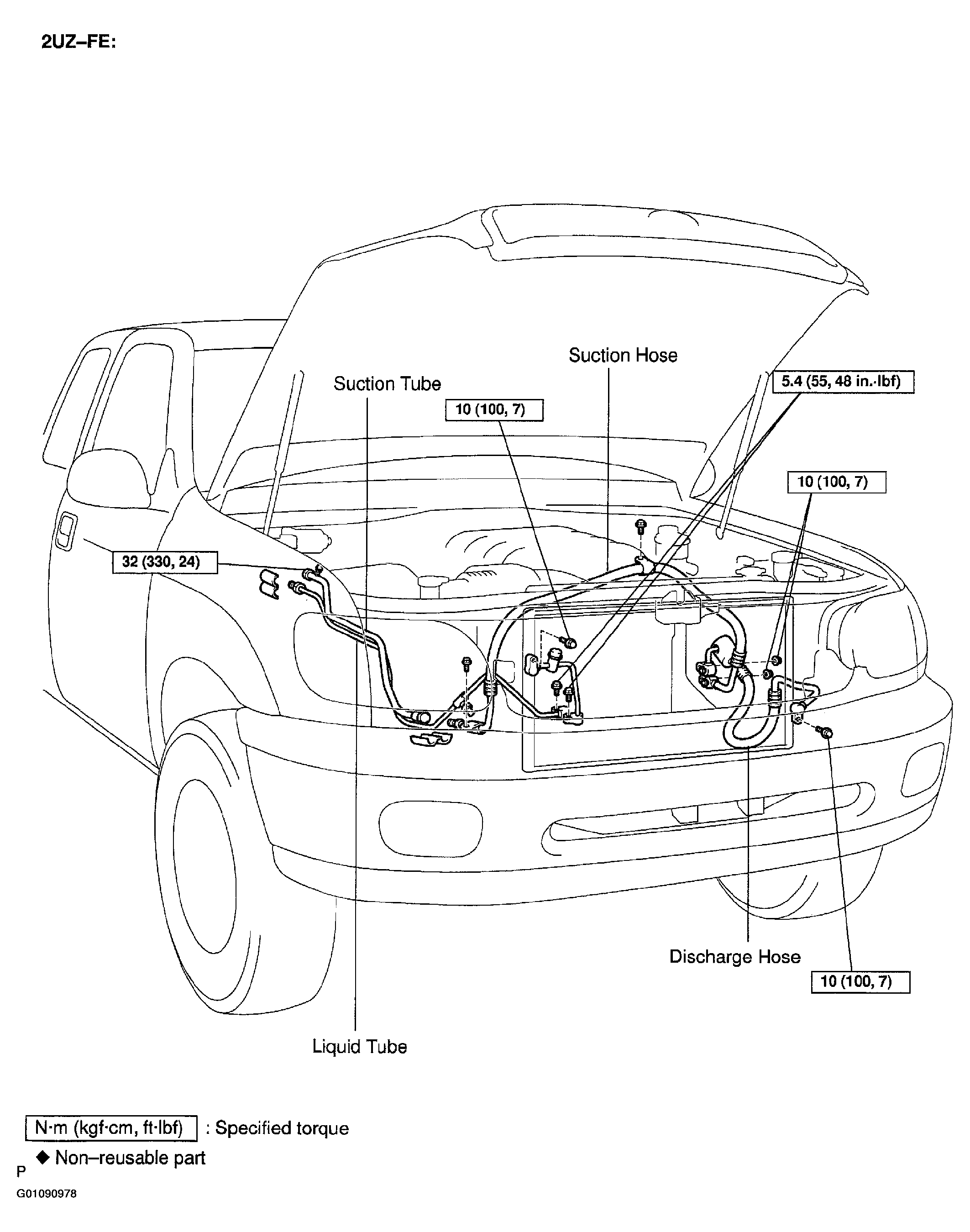

Fig 2: Locating Refrigerant Line Components (2UZ-FE)
G01090978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
