Set Up

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect charge hose to manifold gauge set.
    1. Tighten the nuts by hand.
    CAUTION: Do not connect the wrong hoses.
  2. Connect quick disconnect adapters to charging hoses.

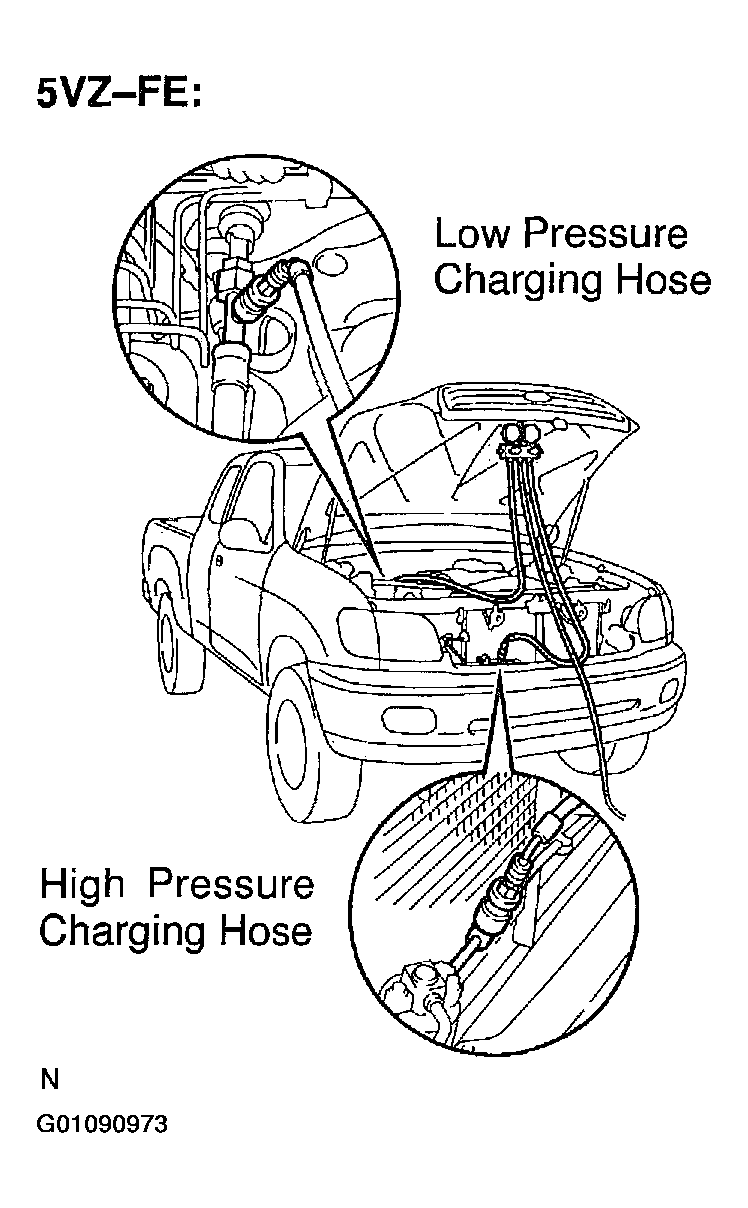

      Fig 1: 5VZ-FE Engine & Manifold Gauge Setup
      G01090973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

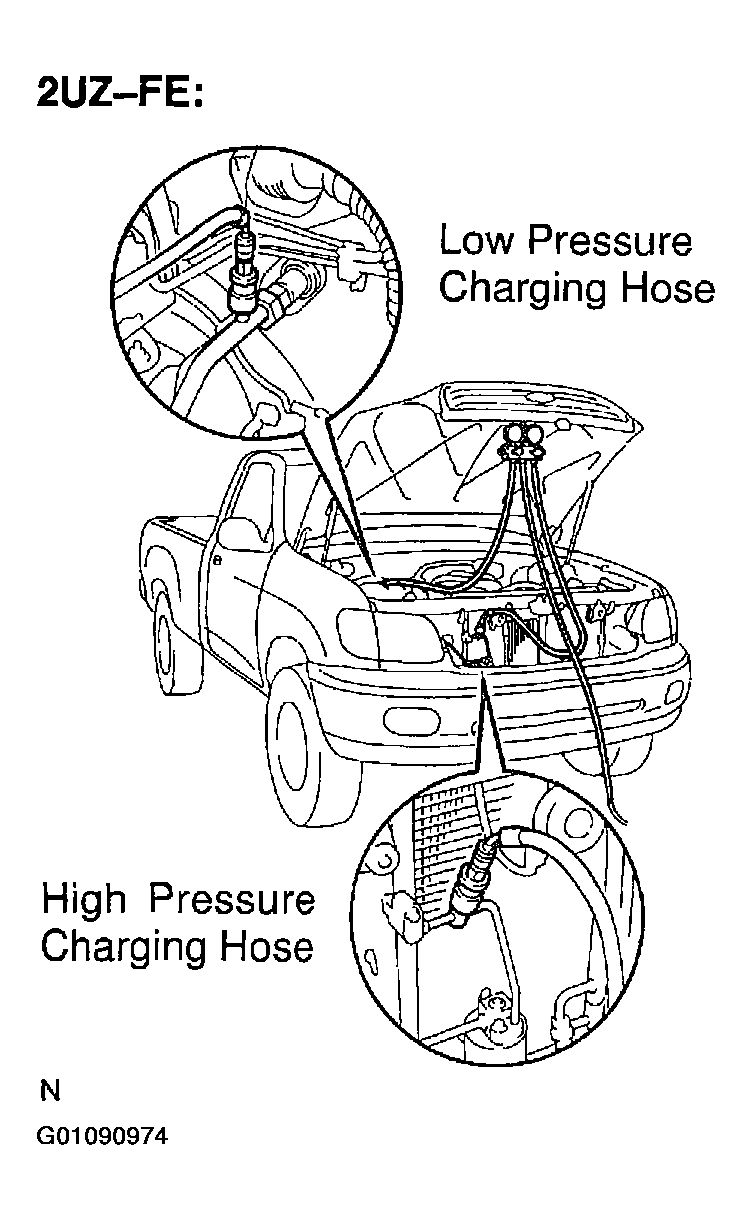

      Fig 2: 2UZ-FE Engine & Manifold Gauge Setup
      G01090974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Tighten the nuts by hand.
  3. Close both hand valves of manifold gauge set.
  4. Remove caps from service valves on refrigerant line.
  5. Connect quick disconnect adapters to service valves.
    NOTE: Push the quick disconnect adapter onto the service valve, then slide the sleeve of the quick disconnect adapter downward to lock it.
    Fig 3: Connecting Quick Disconnect Adapters
    G01090975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
