On-Vehicle Inspection

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Inspect drive belt's installation condition.
1. Check that the drive belt fits properly in the ribbed grooves.

  Fig 1: Displaying Fitting Of Drive Belt In Ribbed Grooves
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5VZ-FE engine: Inspect drive belt tension.
1. Using a belt tension gauge, check the drive belt tension.

  Fig 3: Displaying Belt Tension Gauges
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Drive belt tension:

  New belt 160 +/-25 lbf

  Used belt 100 +/- 20 lbf
NOTE:
- "New belt" refers to a belt which has been used less than 5 minutes on a running engine.
- "Used belt" refers to a belt which has been used on a running engine for 5 minutes or more.
- After installing the drive belt, check that it fits properly in the ribbed grooves.
2UZ-FE engine: Inspect drive belt tension
1. Check that the tension is within A range on the auto tensioner scale.

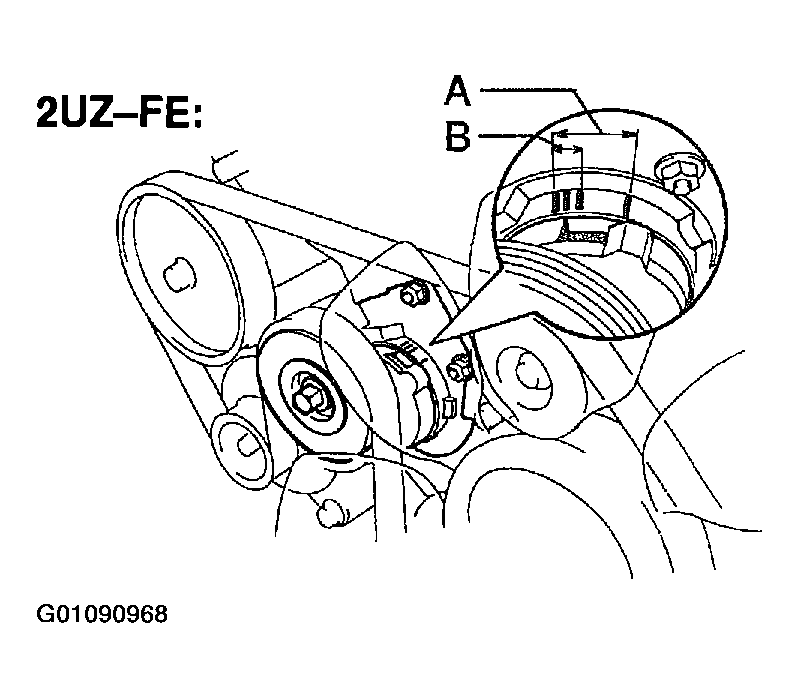

  Fig 4: Displaying Ranges For Auto Tensioner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. If the tension is not within the A range on the scale, replace the belt with a new one.
  NOTE: When replacing the drive belt with a new one, the belt's tension should be within the B range on the belt tensioner scale.
