Blower Resistor: Inspection

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove glove compartment parts.
  2. Remove lower No. 2 finish panel.
  3. Remove lower center cover.
  4. Remove lower LH finish panel.
  5. Remove lower cover. See step 22 underREMOVAL under INSTRUMENT PANEL.
  6. Remove no. 4 heater to register duct.
  7. Remove blower resistor.
    1. Disconnect the connector.
    2. Remove the 2 screws and blower resistor.
      Fig 1: Locating Screws For Removal Of Blower Resistor
      G01091031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Inspect blower resister resistance.
    Fig 2: Displaying Resistor
    G01091033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 3: Displaying Blower Resistor Resistance
    G01091032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If resistance is not as specified, replace the blower resistor.

  9. Install blower resistor.
    1. Install the blower resistor with the 2 screws.
    2. Connect the connector.

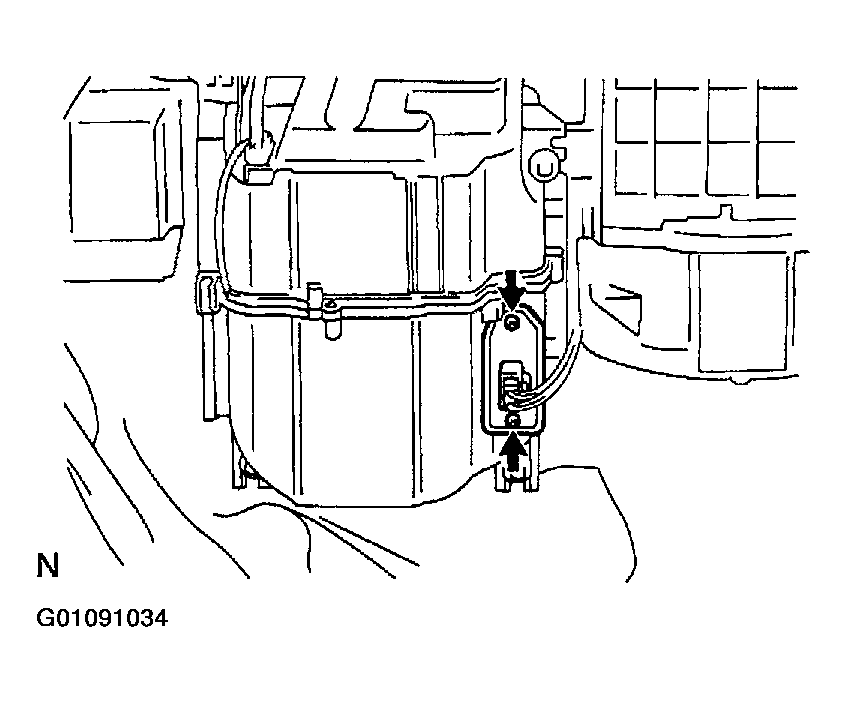

      Fig 4: Locating Screws For Installation Of Blower Motor
      G01091034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. Install No. 4 heater to register duct.
  11. Install lower cover.
  12. Install lower LH finish panel.
  13. Install lower center cover.
  14. Install lower No. 2 finish panel.
  15. Install glove compartment parts. See INSTALLATION .
