Blower Motor: Inspection

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Remove blower motor.
1. Disconnect the connector.
2. Remove the 3 screws and motor.

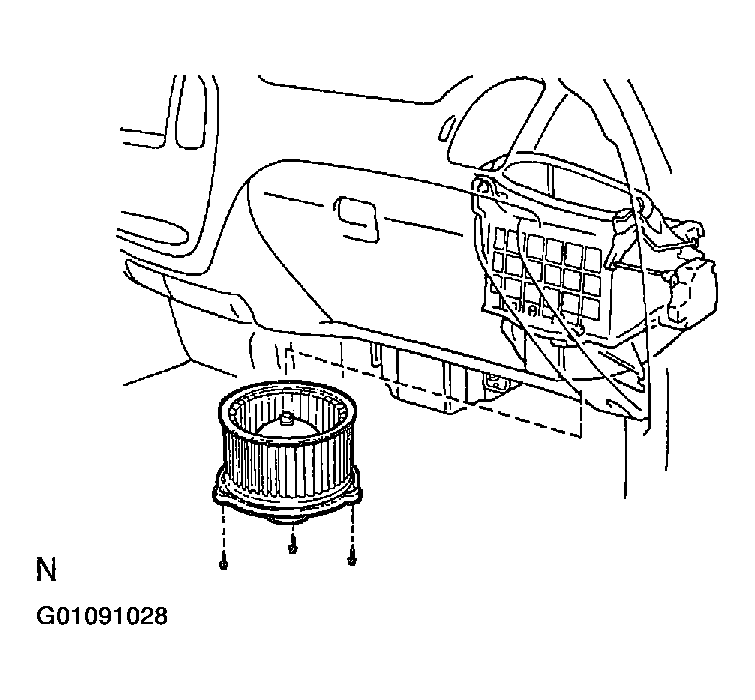

  Fig 1: Locating Screws For Removal Of Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Inspect blower motor operation.
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, then check that the motor operations smoothly.

  Fig 2: Inspecting Blower Motor Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. If operation is not as specified, replace the blower motor.
Install blower motor.
1. Install the motor with the 3 screws.
2. Connect the connector.

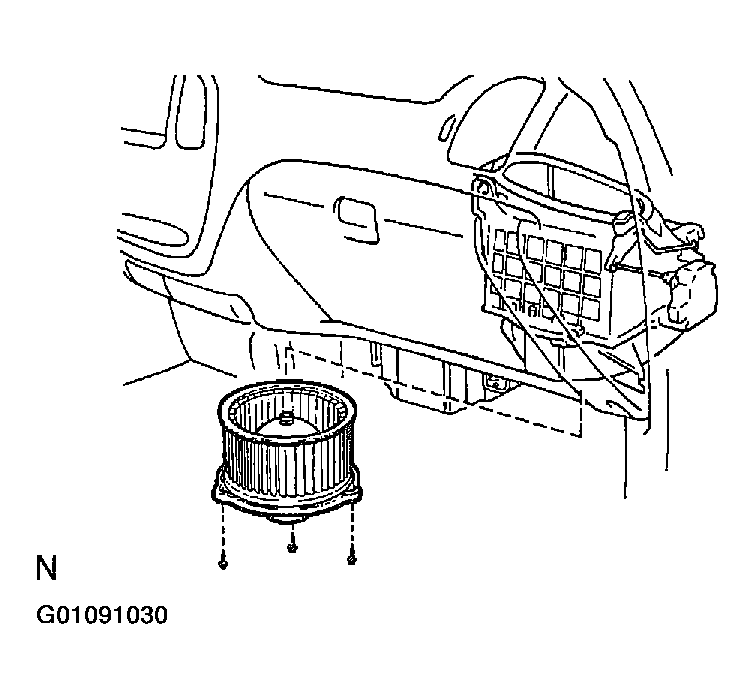

  Fig 3: Locating Screws For Installation Of Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
