Air Conditioning Control Assembly (Center Cluster Integration): Removal

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Remove center cluster integration panel.

  1. Remove the 3 heater control knobs.

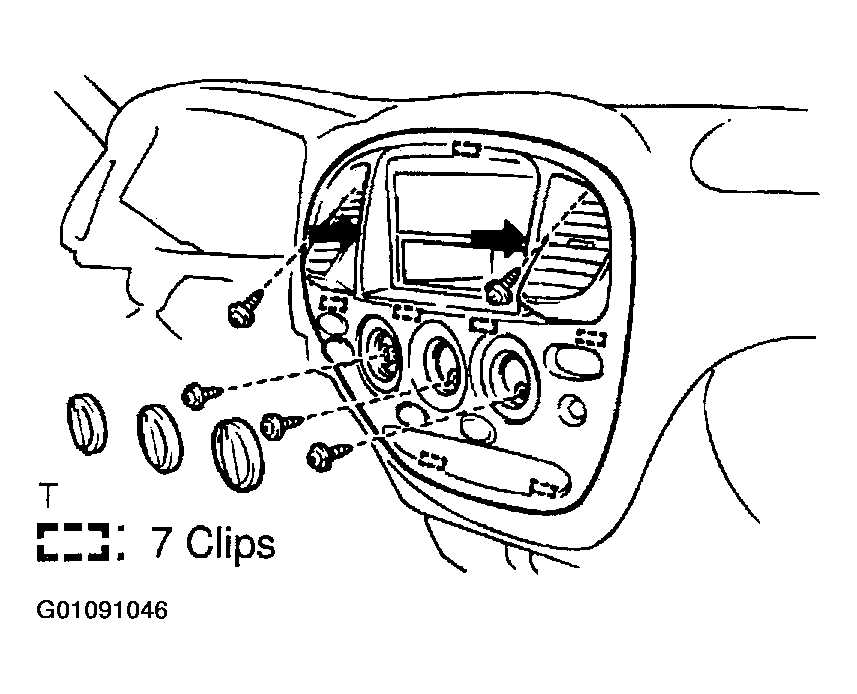

    Fig 1: Locating Knobs & Screws For Removal Of Center Cluster Integration Panel
    G01091046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the 5 screws.
  3. Remove integration control panel by pulling the portions indicated by arrows in the illustration.
  4. Disconnect the connector.
