Inspect Hazard Switch Continuity
WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

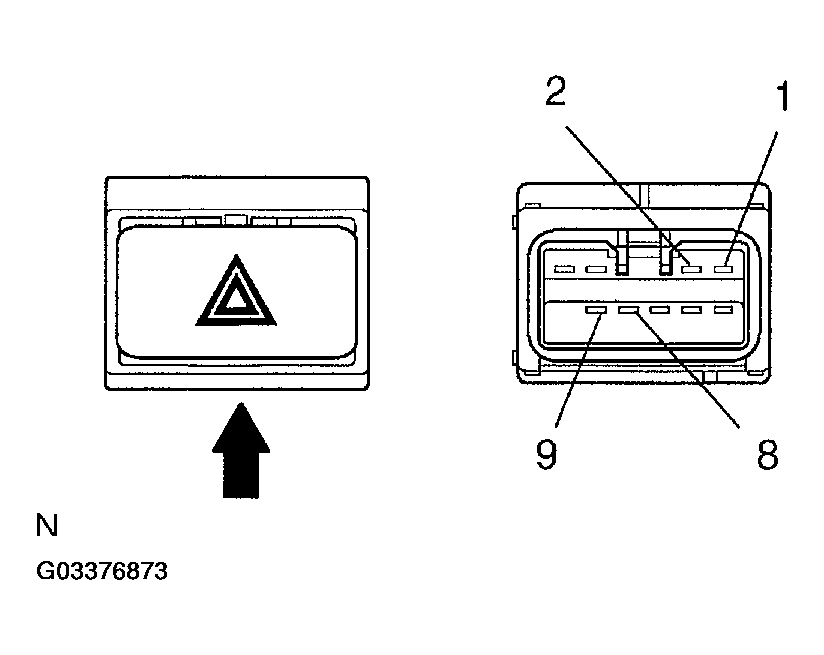

HAZARD SWITCH CONTINUITY
| Switch position |
Tester connection |
Specified condition |
| OFF |
- |
No continuity |
| ON |
1 - 2 |
Continuity |
| Illumination circuit |
8 - 9 |
Continuity |
If continuity is not as specified, replace the switch.
