Adjust Fog Light Aim

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

A-bolt: Vertical Direction

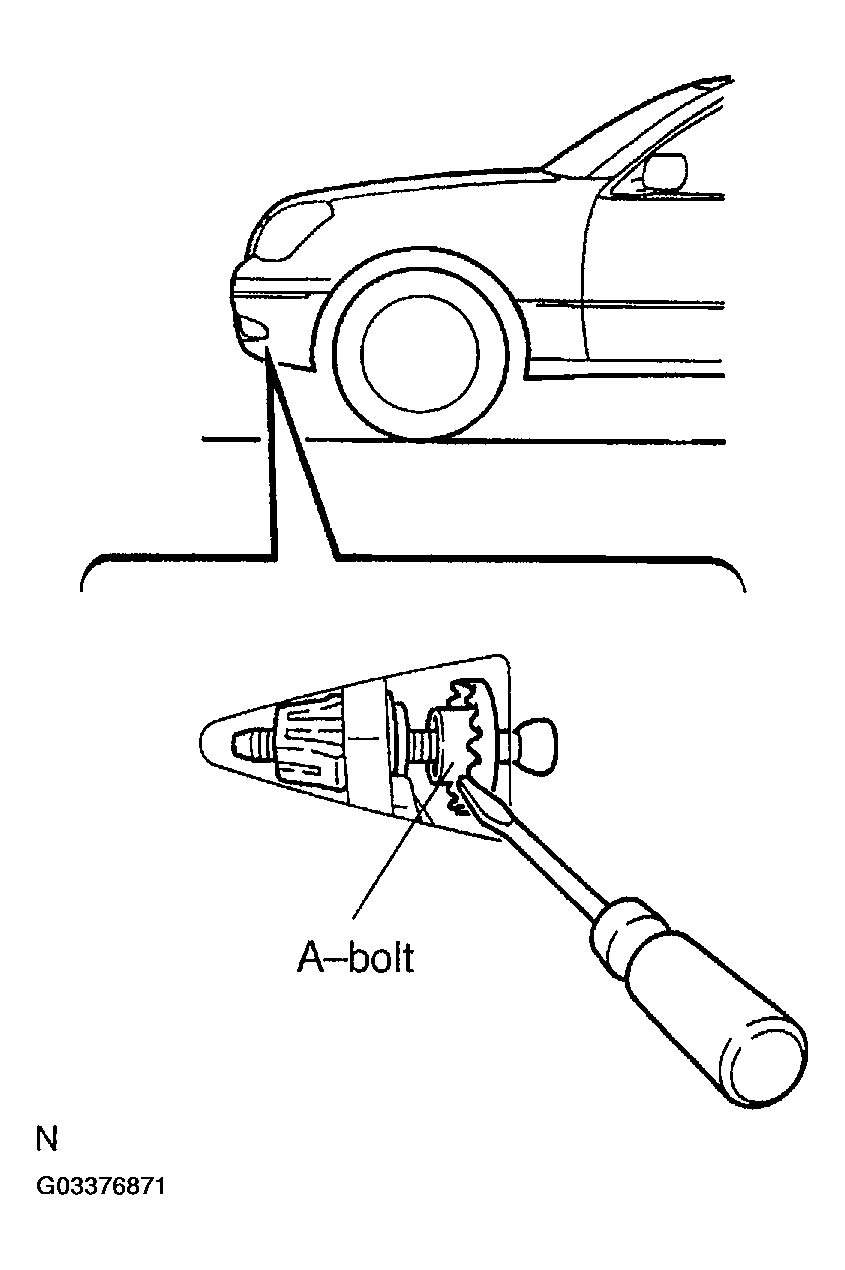

Fig 1: Adjusting Fog Light Aim
G03376871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
