Inspection Procedure

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

In case of using the LEXUS hand-held tester, start the inspection step 1 and in case of not using the LEXUS hand-held tester, start form step  2.

  1. Check exhaust gas sensor using LEXUS hand-held tester.

    PREPARATION:

    Connect the LEXUS hand-held tester to the DLC3.

    CHECK:

    Check the exhaust gas sensor using DATA LIST.

    1. OK : Check and replace A/C ECU.
    2. NG : Go to next step.
  2. Check voltage between terminals NOx and SG-1 of A/C ECU connector.

    PREPARATION:

    Remove A/C ECU with connectors still connected.

    CHECK:

    1. Turn ignition switch to ON.
    2. After continuing to turn ignition switch ON for more than 120 seconds, check voltage between terminals NOx and SG-1 of A/C ECU connector at the temperature.

    OK:

    Voltage:

    1.0 - 4.5 V at 10 - 35°C (50 - 95 °F)

    HINT:

    When the sensor is exposed to the exhaust gas, the voltage goes down.

    Fig 1: Removing A/C ECU With Connectors Still Connected
    G03376777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : Go to step 3.
    2. OK : Proceed to next circuit inspection shown on problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ). However, if DTC B1461/61 is displayed, check and replace A/C ECU.
  3. Check exhaust gas sensor resistance.

    PREPARATION:

    Remove the exhaust gas sensor (See SMOG VENTILATION SENSOR ).

    CHECK:

    1. Connect positive (+) lead from the battery to the terminal 3 and negative (-) lead to terminal 5.
    2. After keeping to apply battery positive voltage between terminals 3 and 5 for more than 120 seconds, measure resistance between terminals 1 and 4.

    OK:

    Resistance:

    1 - 100 kΩ V at 10 - 35°C (50 - 95 °F)

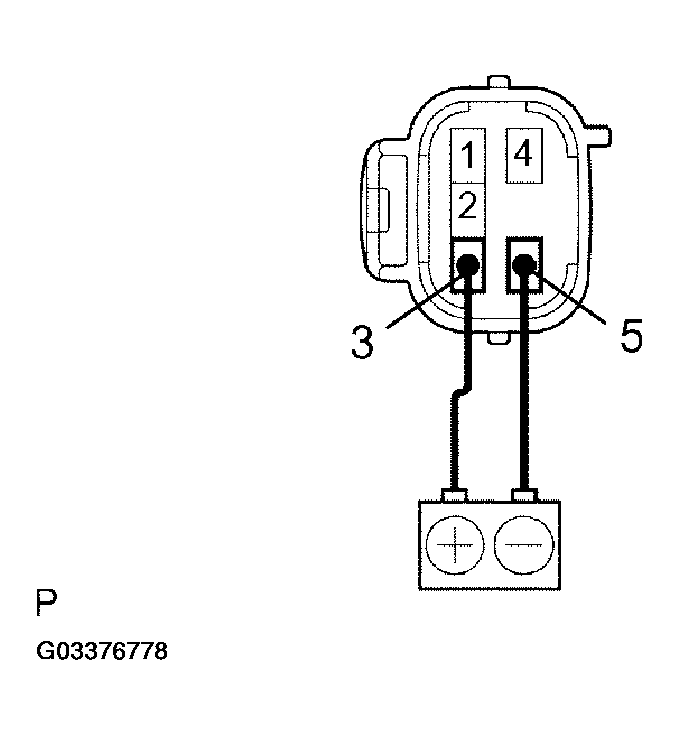

    Fig 2: Identifying Exhaust Gas Sensor Resistance
    G03376778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    When the sensor is exposed to the exhaust gas, the resistance goes up.

    1. NG : Replace exhaust gas sensor.
    2. OK : Go to next step.
  4. Check harness and connector between A/C ECU and exhaust gas sensor (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
    1. NG : Repair or replace harness for connector.
    2. OK : Check and replace A/C ECU.
