Inspection Procedure

PREPARATION:

Remove A/C ECU with connectors still connected.

CHECK:

1. Turn ignition switch to ON.
2. Change the set temperature to activate the cool air bypass damper control servomotor, and measure voltage between terminals TPBPa and SG-7 of A/C ECU every time the set temperature is changed.

OK:

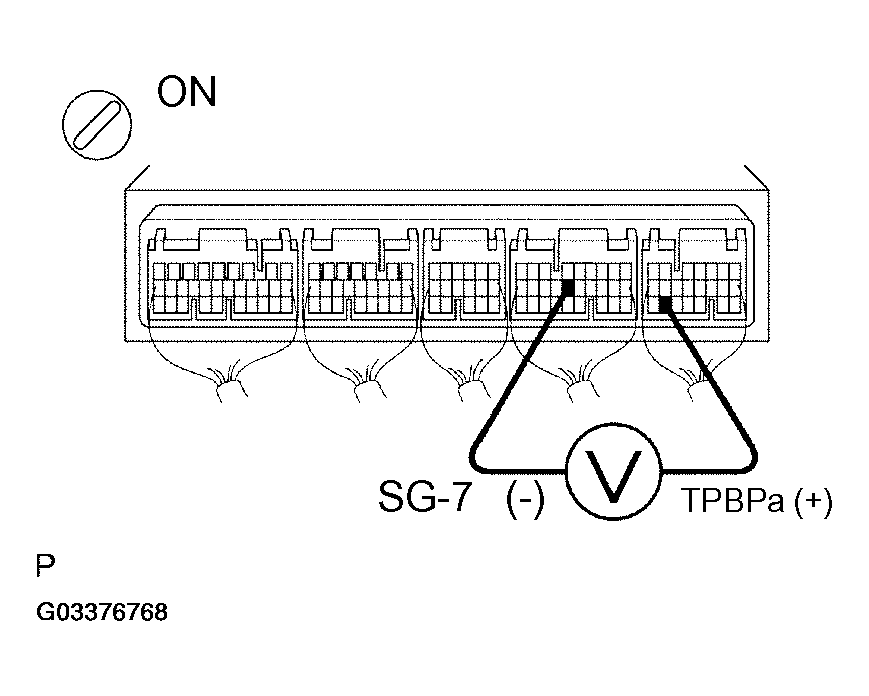

Fig 1: Identifying Terminals TPDBA And Sg-7 Of A/C ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

As the set temperature increases, the voltage decreases.

1. NG : Go to step 2.
2. OK : Proceed to next circuit inspection shown on problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ). However, if DTC B1435/35 is displayed, check and replace A/C ECU.

PREPARATION:

Remove cool air bypass damper control servomotor (See COOL AIR BY-PASS DAMPER CONTROL SERVOMOTOR ).

CHECK:

Measure resistance between terminals 1 and 2 of cool air bypass damper control servomotor assembly connector.

OK:

Resistance: 4.2 - 7.2 kΩ

CHECK:

While operating cool air bypass damper control servomotor, follow the procedure on page COOL AIR BYPASS DAMPER CONTROL SERVOMOTOR CIRCUIT (PASSENGER SIDE)  and measure resistance between terminals 2 and 3 of cool air bypass damper control servomotor assembly connector.

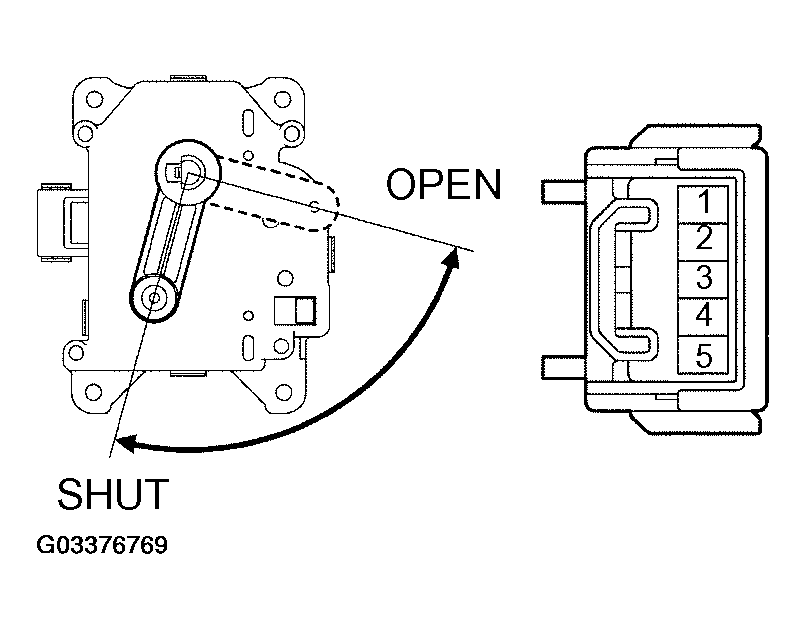

Fig 2: Identifying Cool Air Bypass Damper Position Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

HINT:

As the cool air bypass damper control servomotor moves from the cool side to the hot side, the resistance decreases.

1. NG : Replace cool air bypass damper control servomotor assembly.
2. OK : Go to next step.

1. NG : Repair or replace harness or connector.
2. OK : Check and replace A/C ECU.
