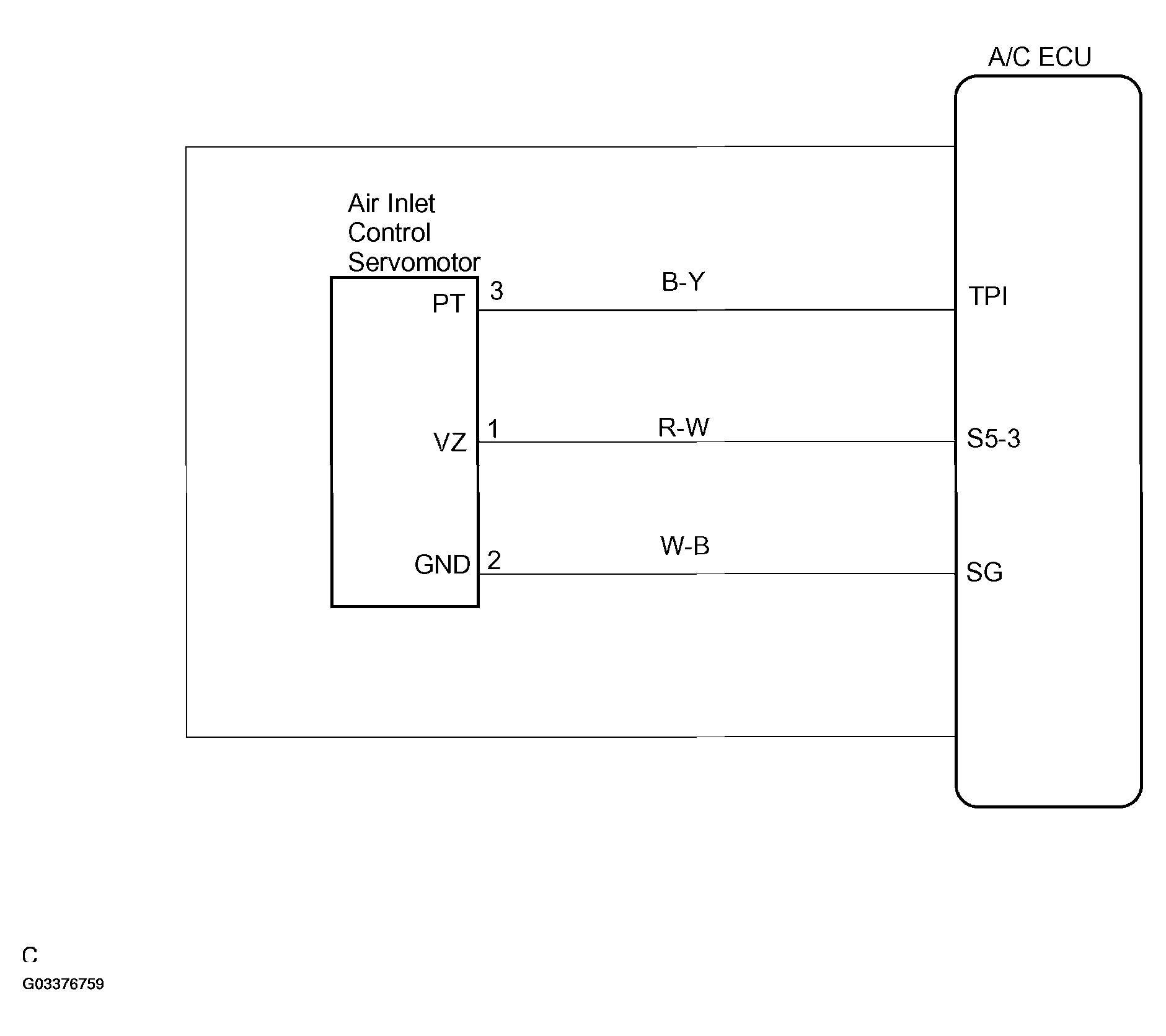

DTC B1432/32 Air Inlet Damper Position Sensor Circuit, DTC B1442/42 Air Inlet Damper Position Sensor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
