Circuit Description

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

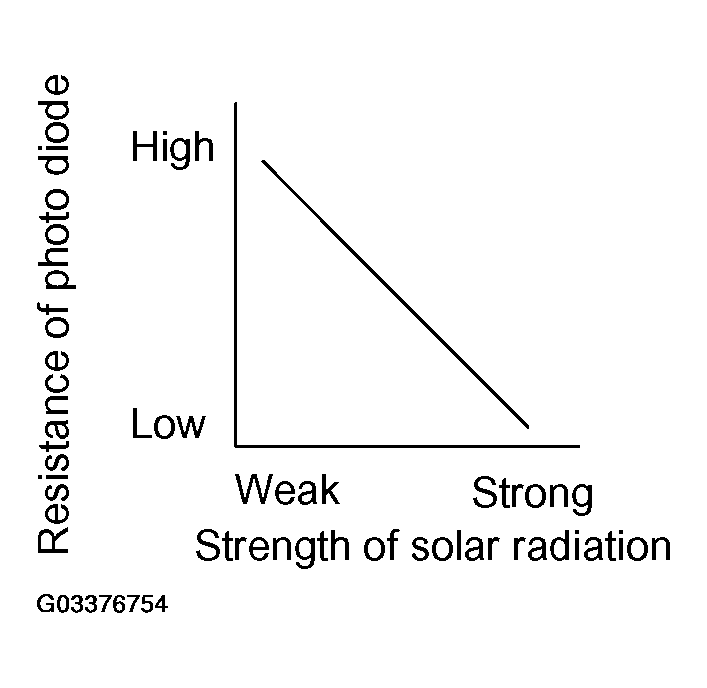

Fig 1: Identifying Resistance Photo Diode Graph
G03376754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

A photo diode in the solar detects solar radiation and sends signals to the A/C ECU.

DETECTION ITEM

DTC No. Detection Item Trouble Area
B1428/28 Open or short in solar sensor circuit.
(Please note that display of DTC B1428/28 is not abnormal when the sensor is not receiving solar radiation.)
  • Solar sensor.
  • Harness or connector between solar sensor and A/C ECU.
  • A/C ECU.
