DTC B1422/22 Compressor Lock Sensor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

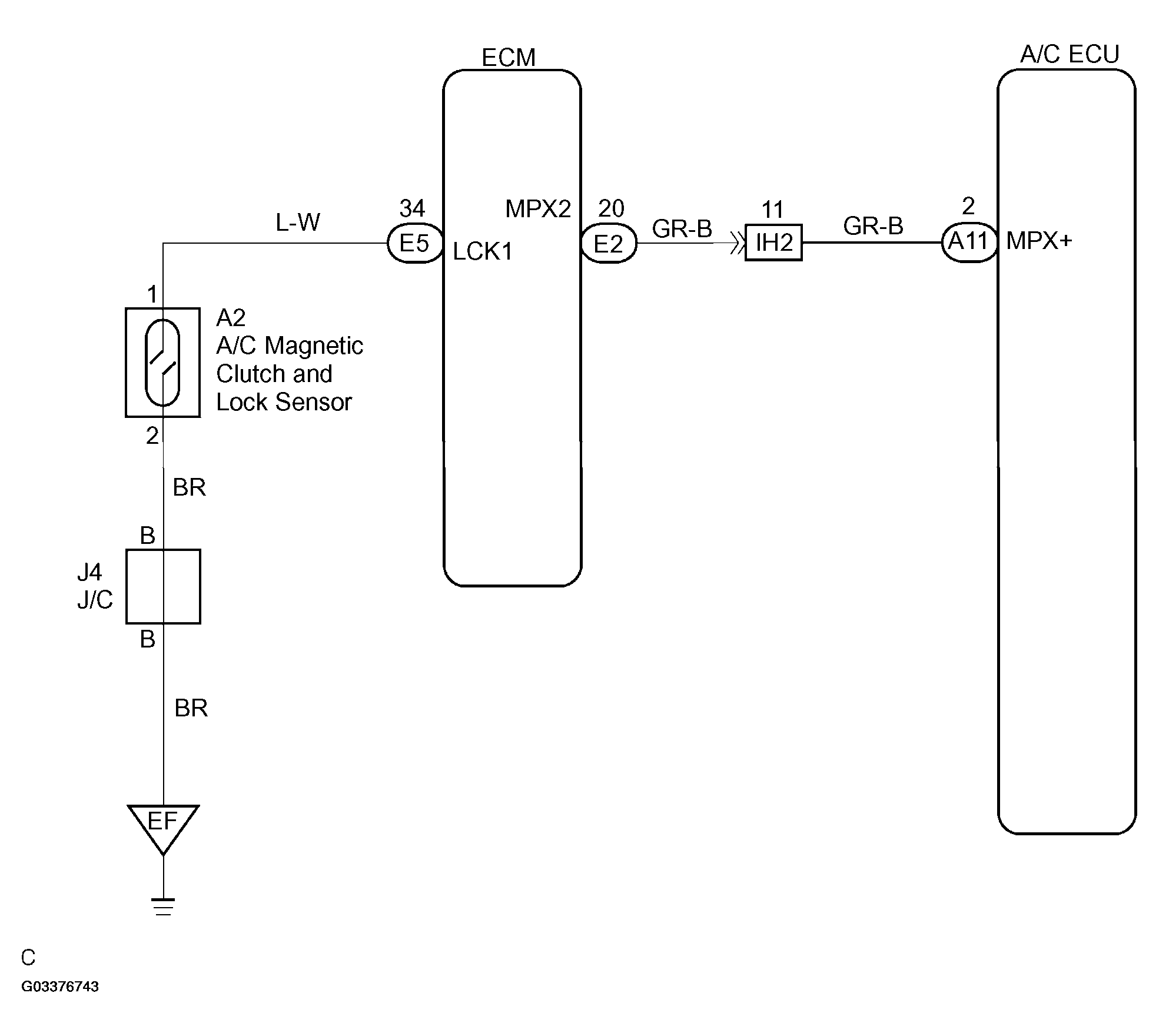

Fig 1: Identifying Compressor Lock Sensor Circuit Wiring Diagram
G03376743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
