Circuit Description

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C ECU.

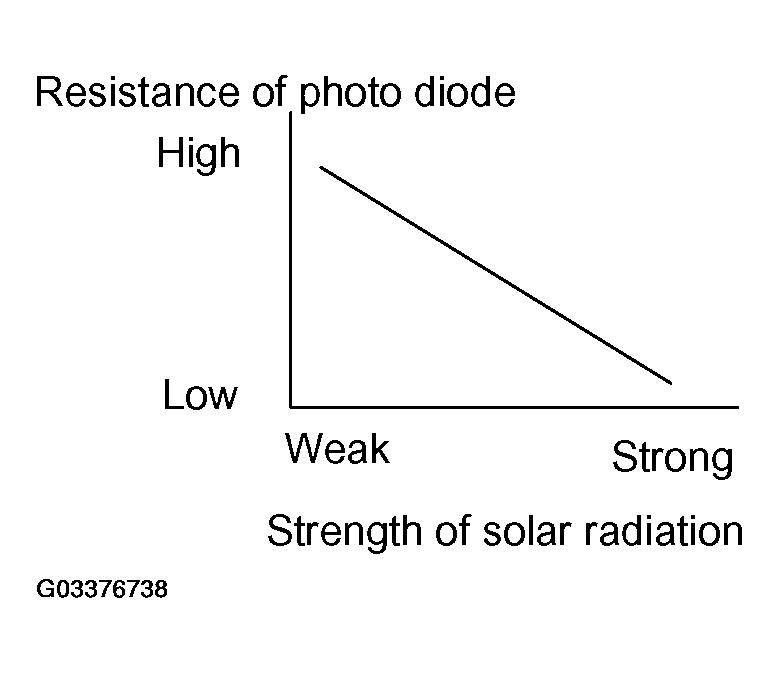

Fig 1: Strength Of Solar Radiation Graph
G03376738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DETECTION ITEM

DTC No. Detection Item Trouble Area
B1421/21 Open or short in solar sensor circuit. Please note that display of diagnostic trouble code B1421/21 is not abnormal when the sensor is not receiving solar radiation.
  • Solar sensor.
  • Harness or connector between solar sensor and A/C ECU.
  • A/C ECU.
