Terminals Of Ecu

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

CONNECTORS

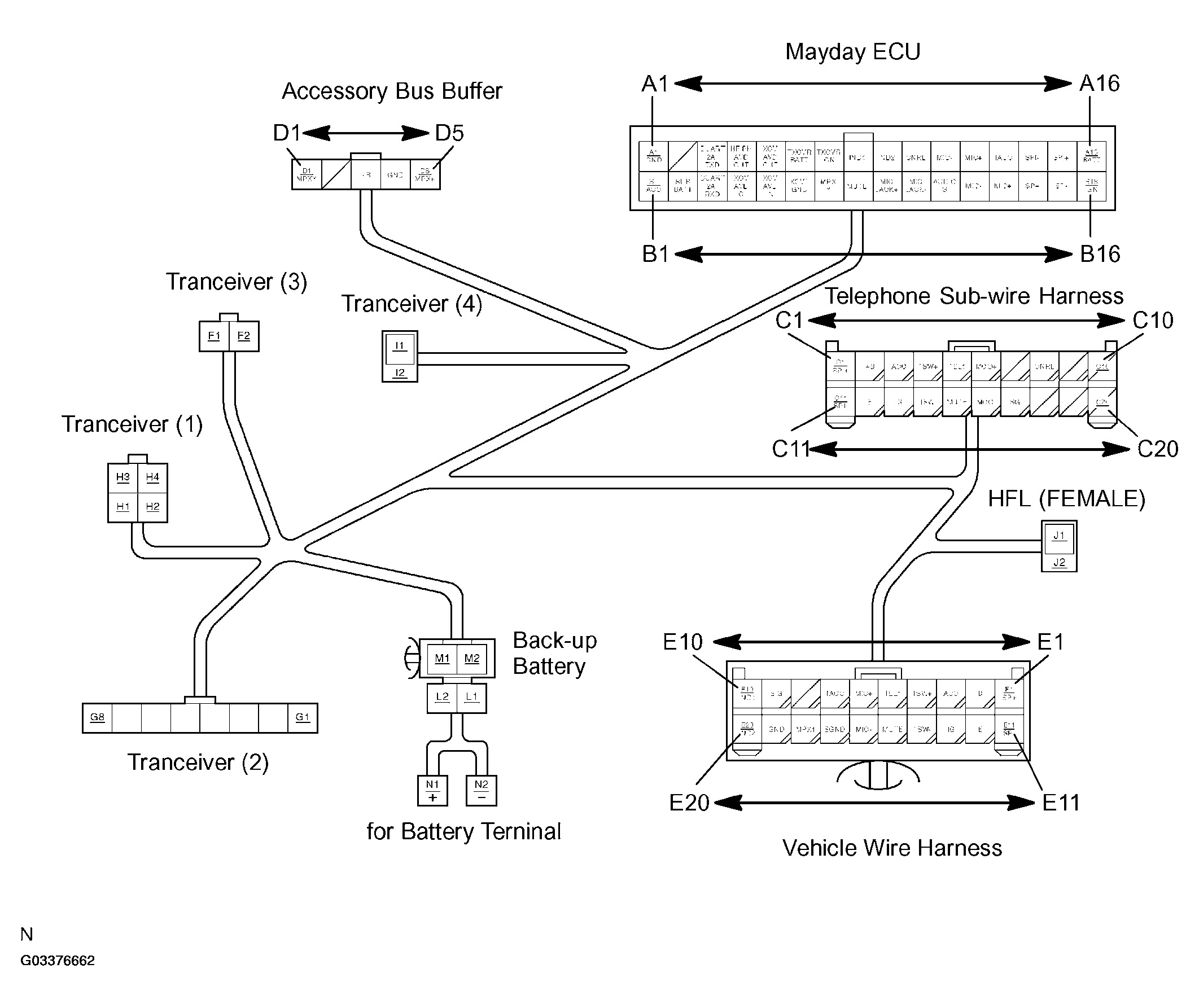

Fig 1: Identifying Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
WIRING DIAGRAMS

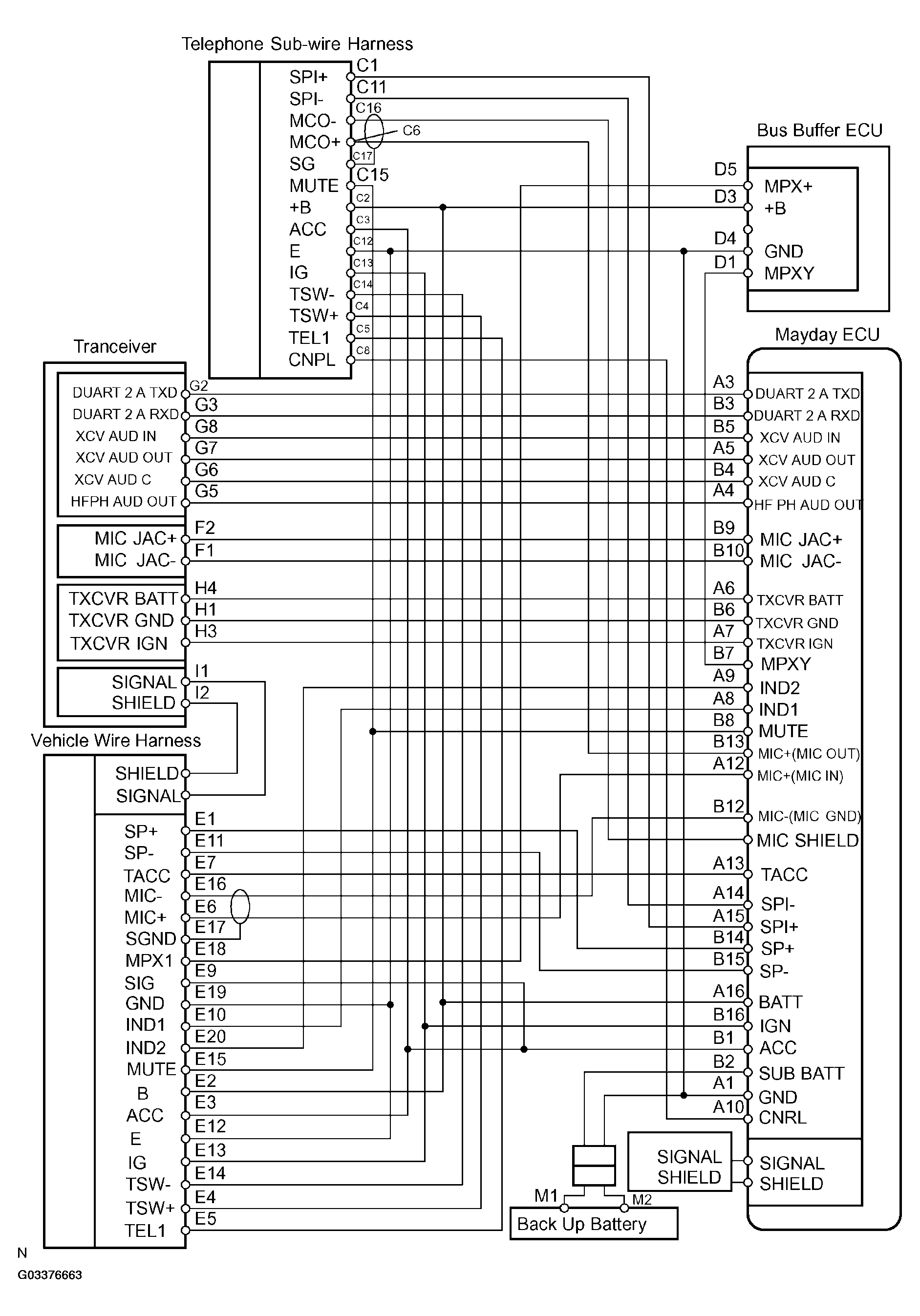

Fig 2: Identifying Wiring Diagrams
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
