Parts Location

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

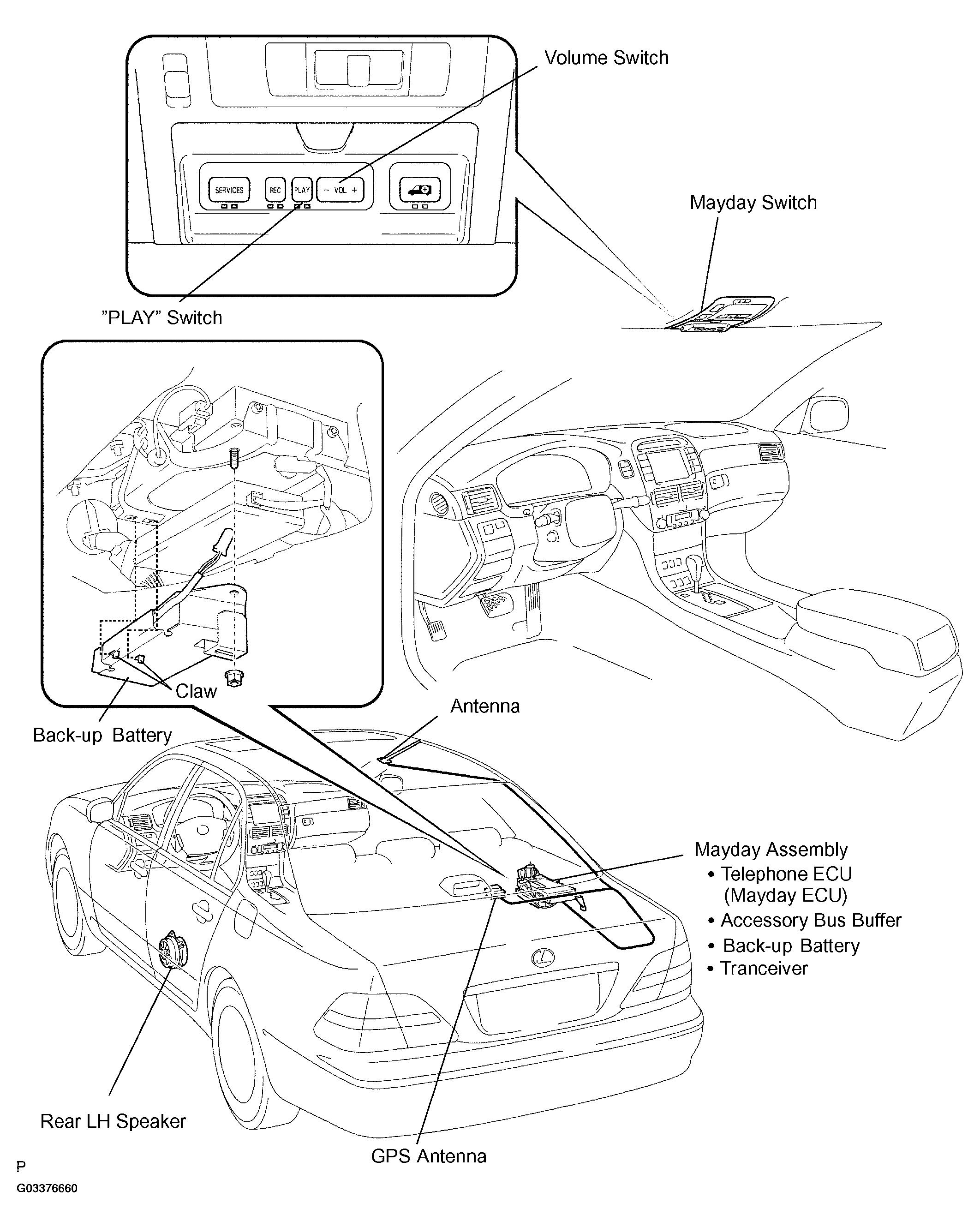

Fig 1: Identifying Component Location Of Lexus Link System
G03376660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

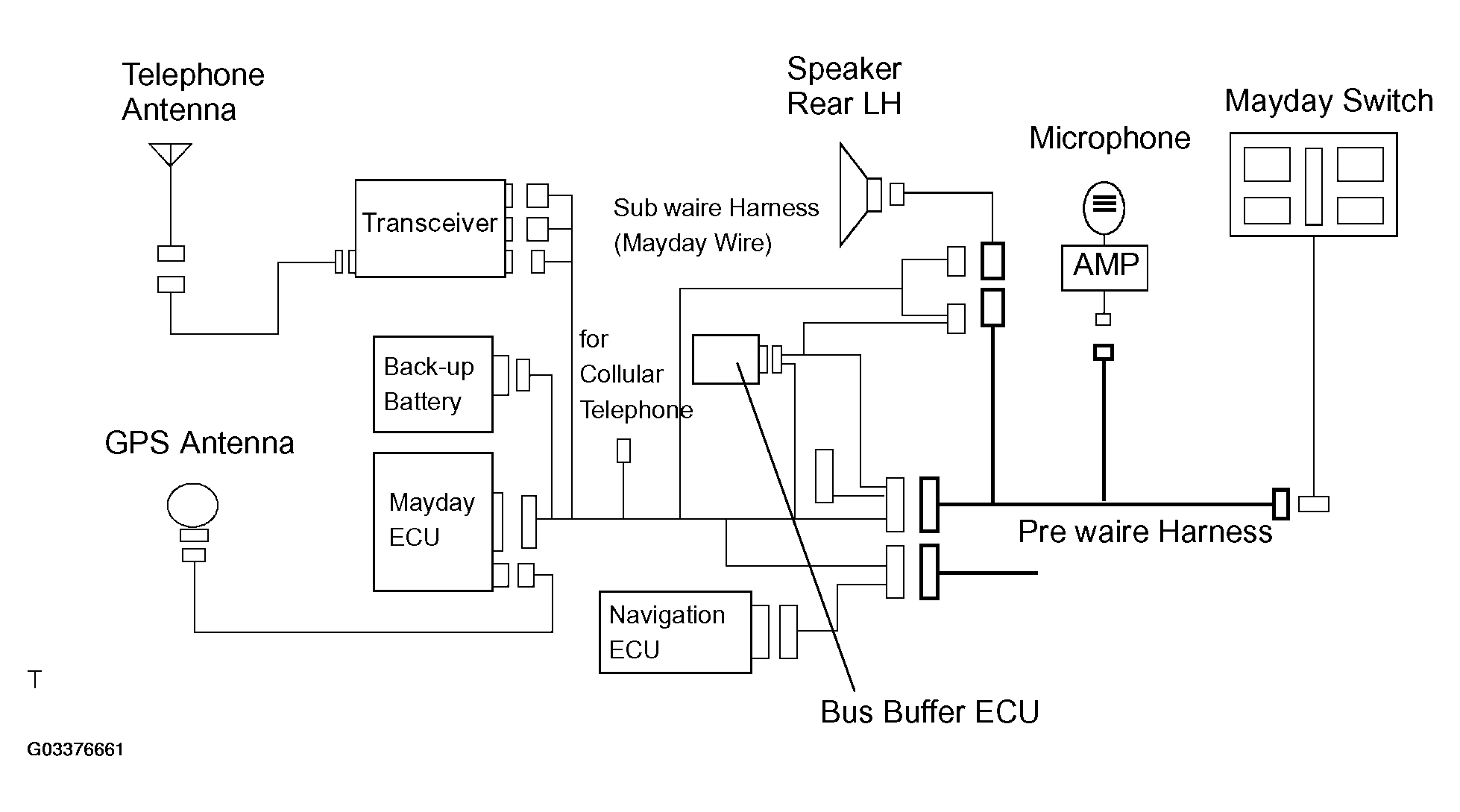

Fig 2: Identifying Circuit Diagram Of Lexus Link System
G03376661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
