Parts Location

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. NAVIGATION SYSTEM

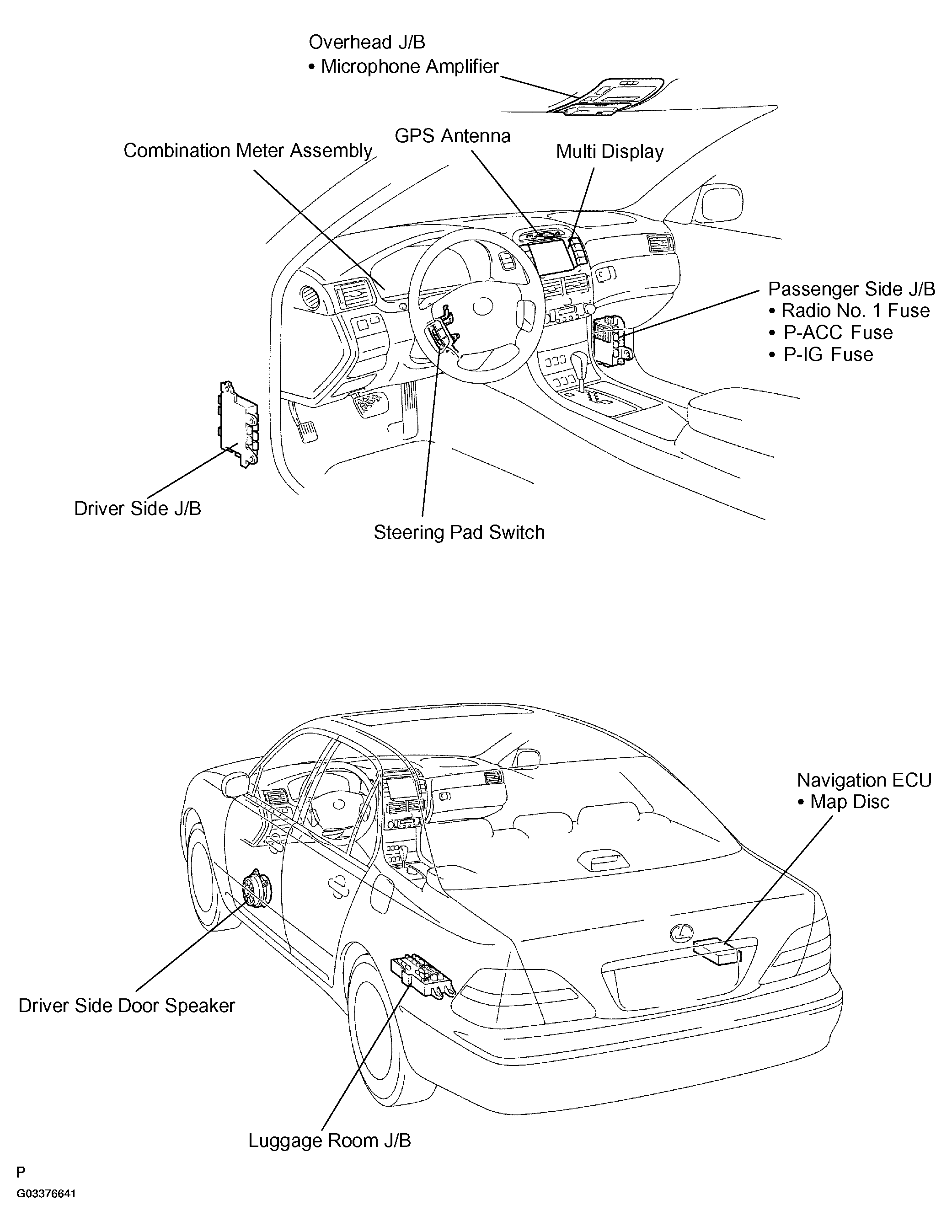

    Fig 1: Identifying Component Location Of Navigation System
    G03376641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CELLULAR MOBILE TELEPHONE SYSTEM

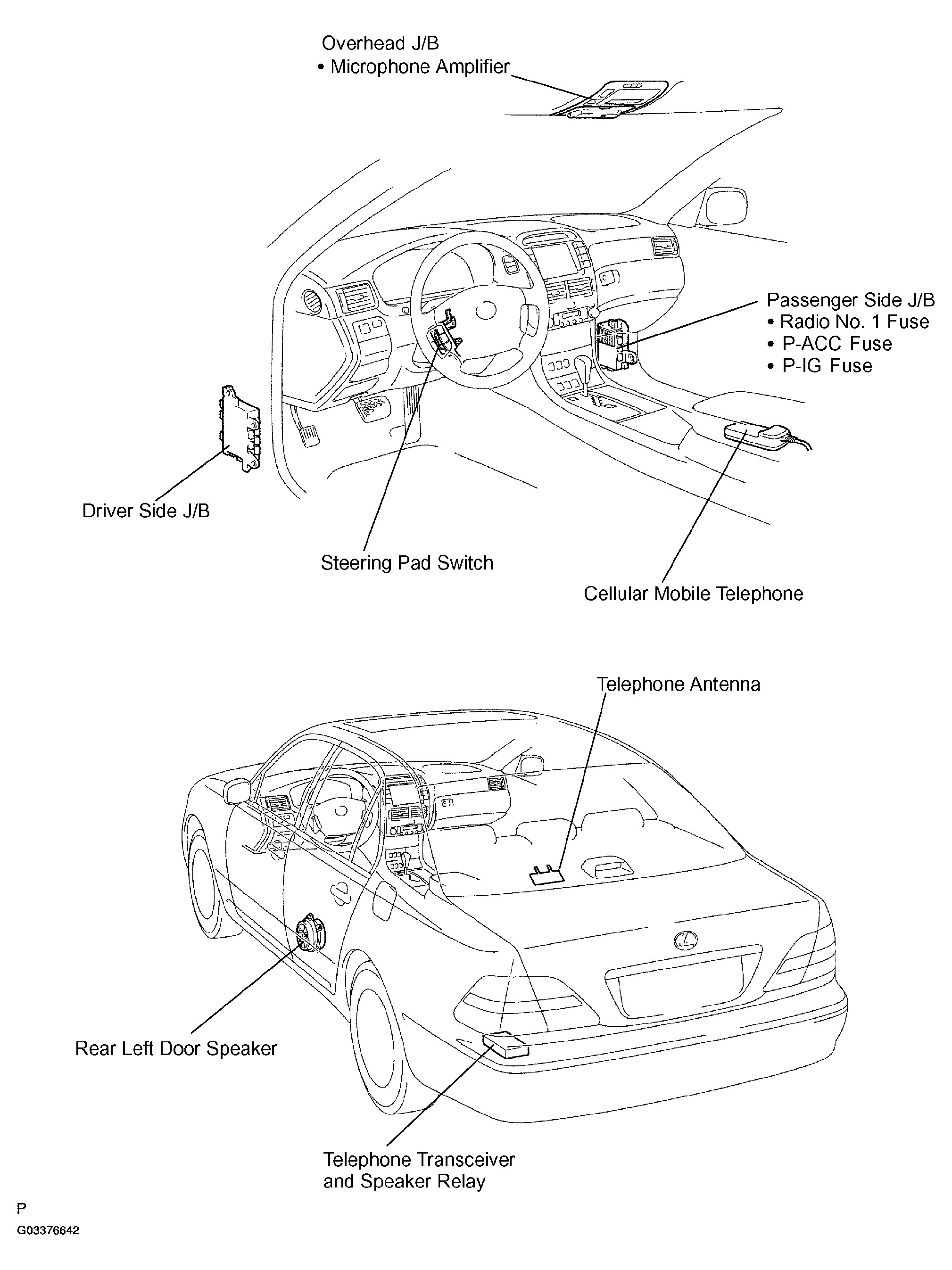

    Fig 2: Identifying Component Location Of Cellular Mobile Telephone System
    G03376642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
