Terminals Of Ecu

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

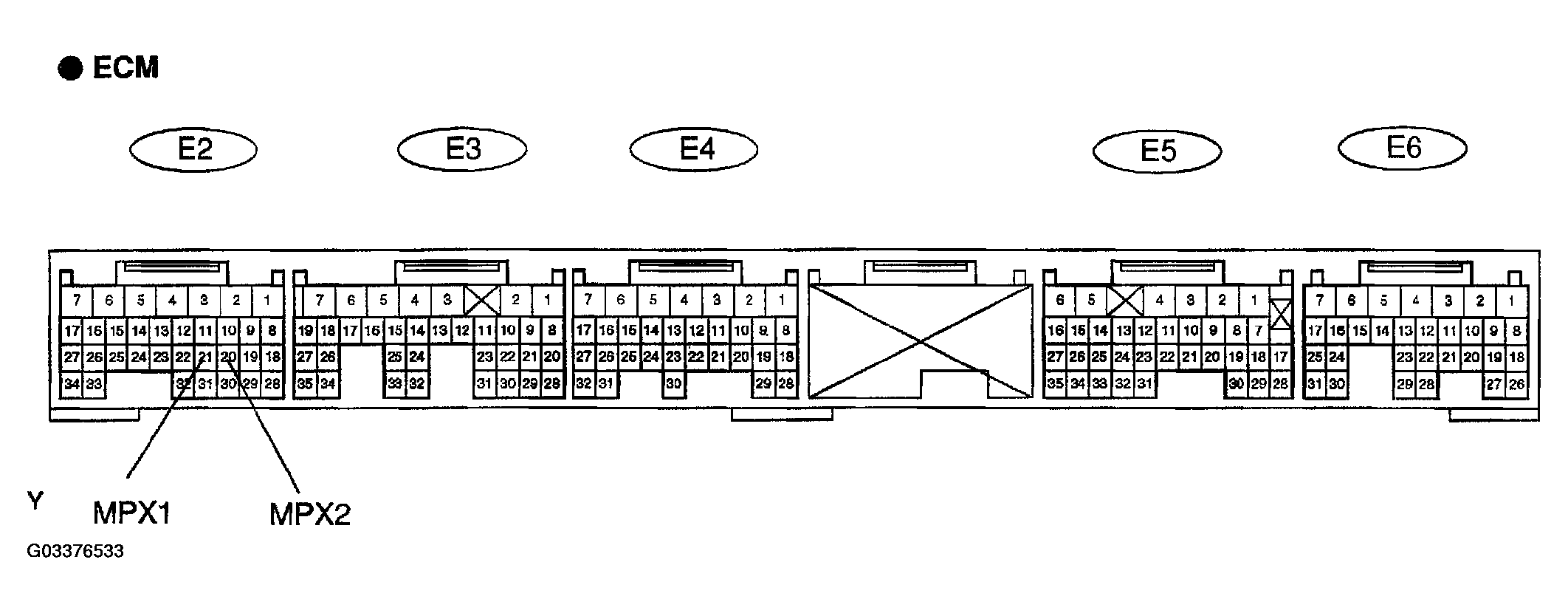

Fig 1: Identifying Terminals Of ECU

G03376533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

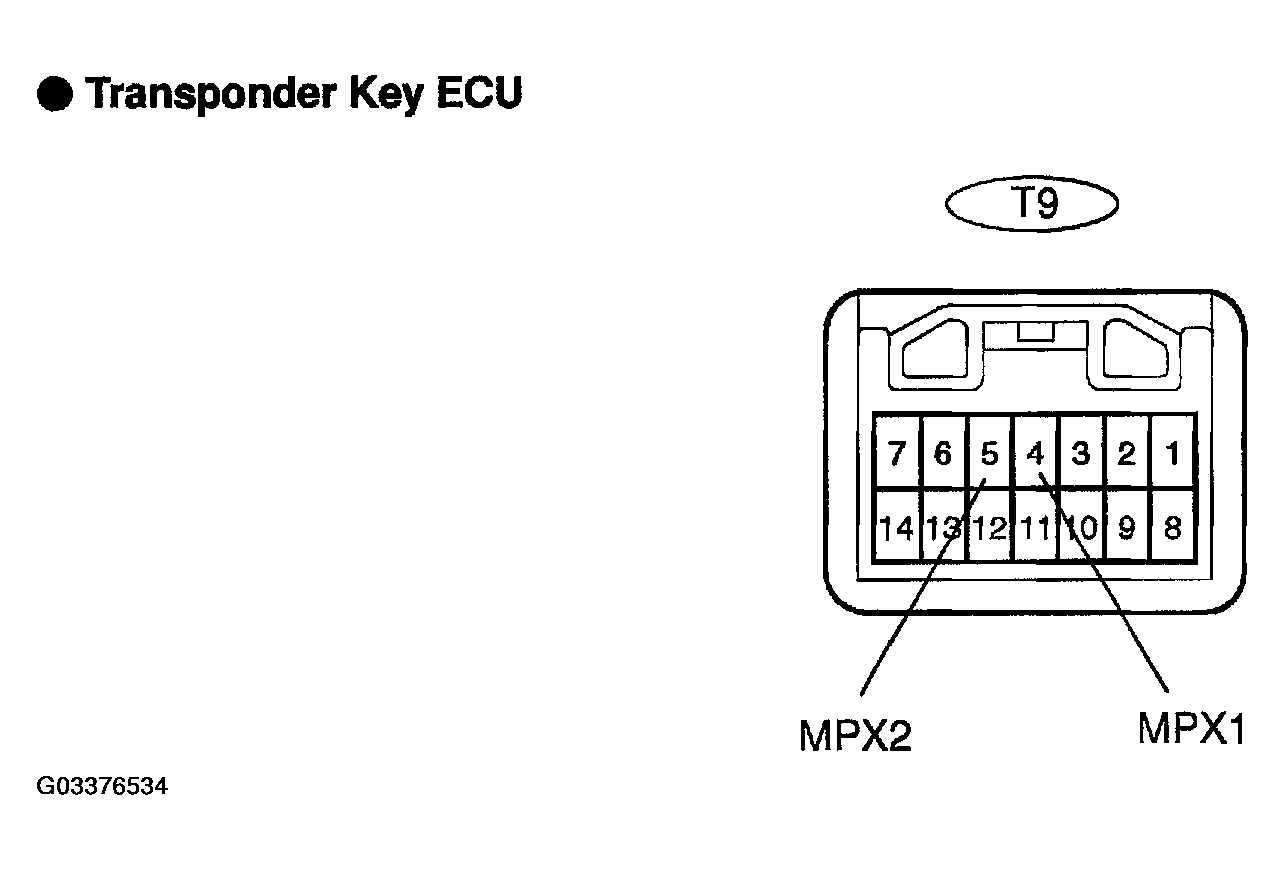

Fig 2: Identifying Transponder Key ECU Terminals

G03376534

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

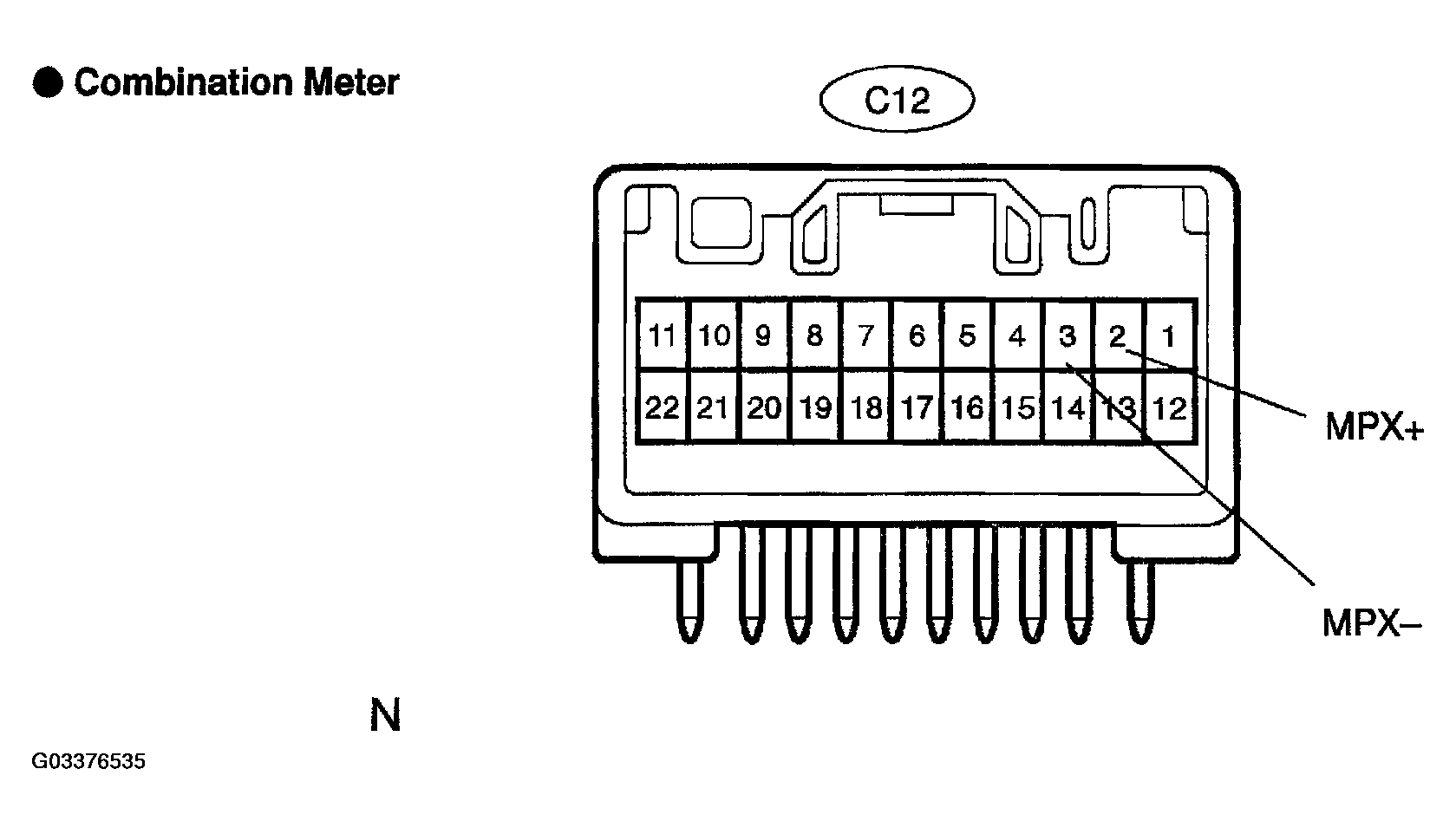

Fig 3: Identifying Combination Meter Terminals

G03376535

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

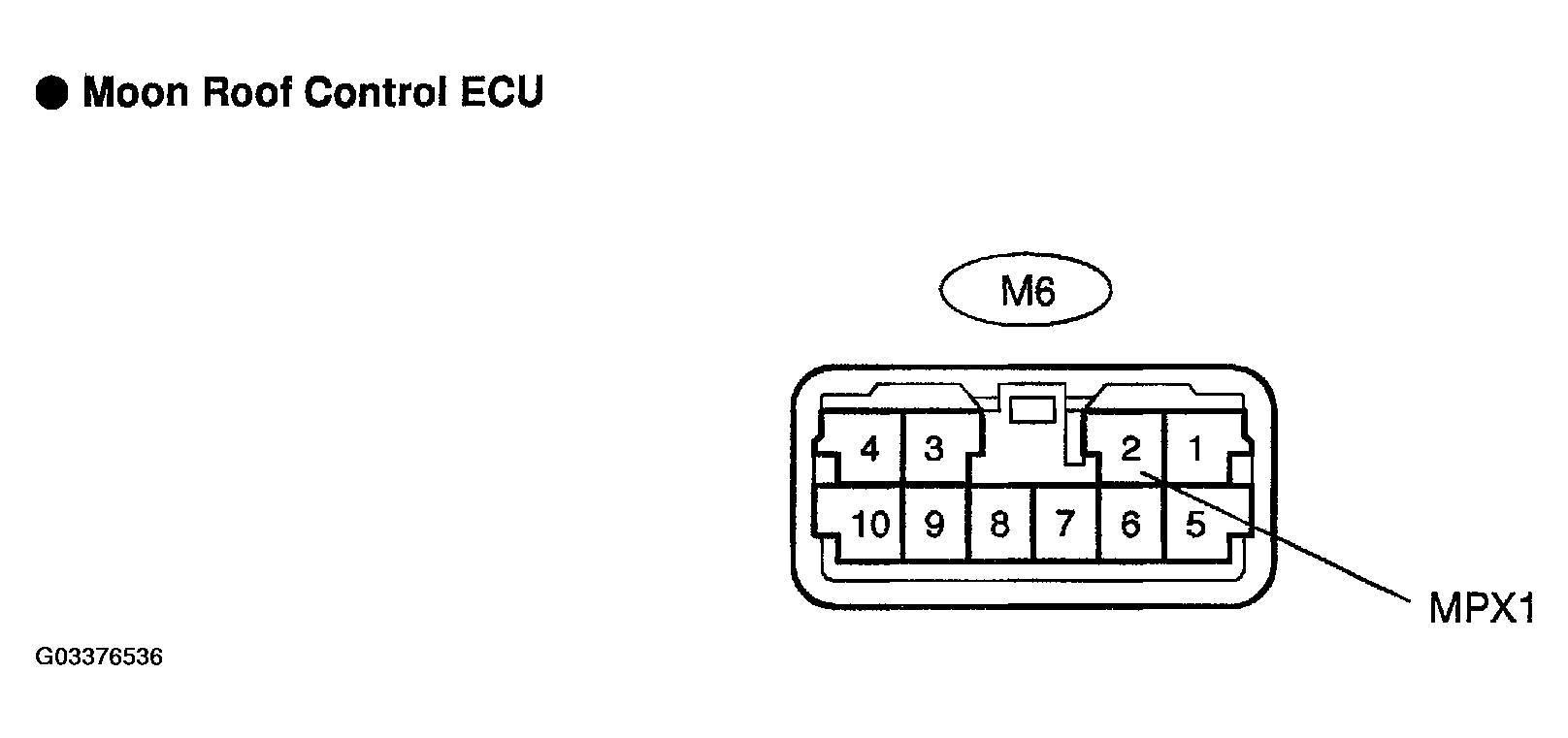

Fig 4: Identifying Main Roof Control CCU Terminals

G03376536

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

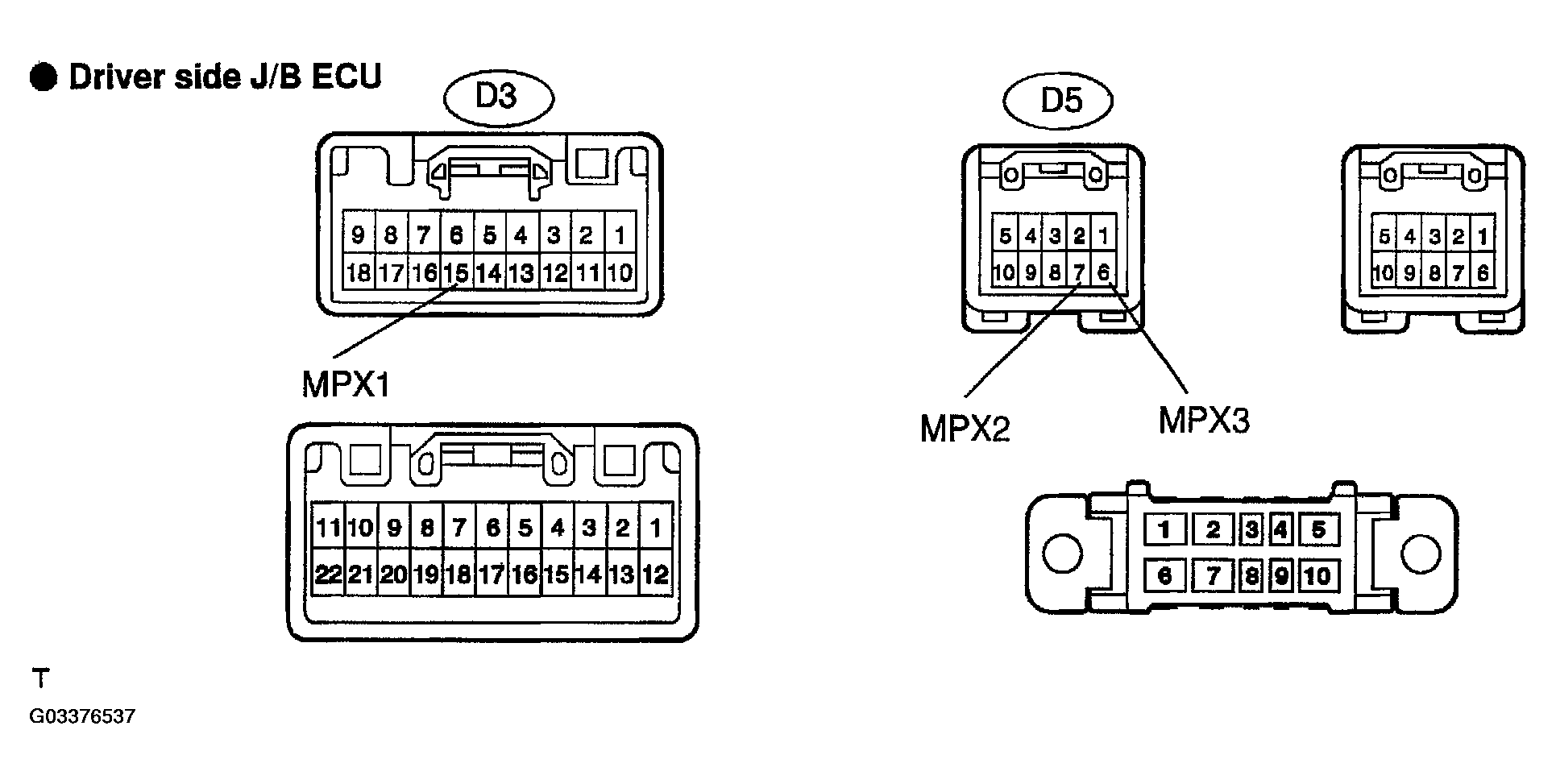

Fig 5: Identifying Driver Side J\B ECU Terminals

G03376537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

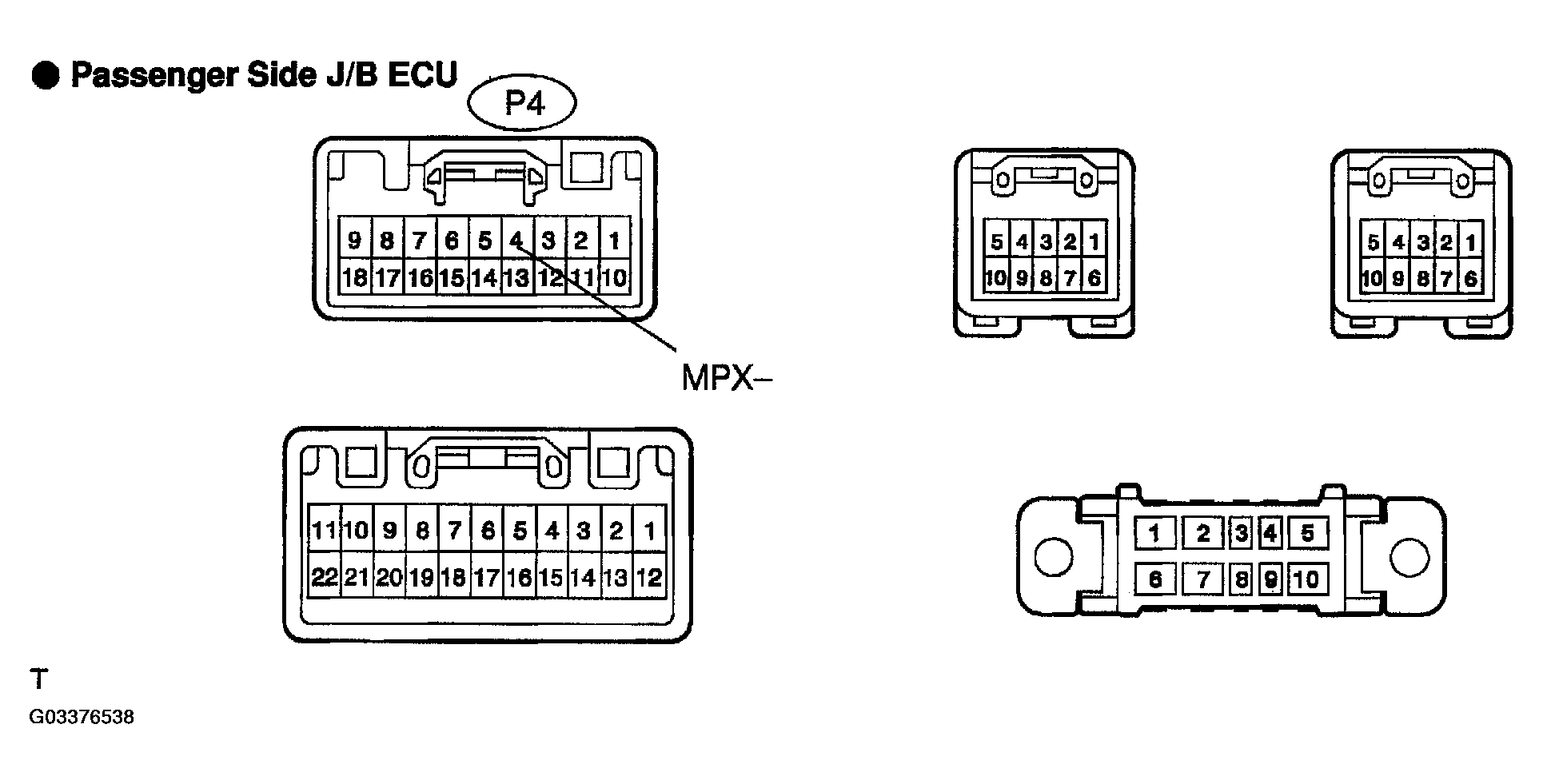

Fig 6: Identifying Passenger Side J\B ECU Terminals

G03376538

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

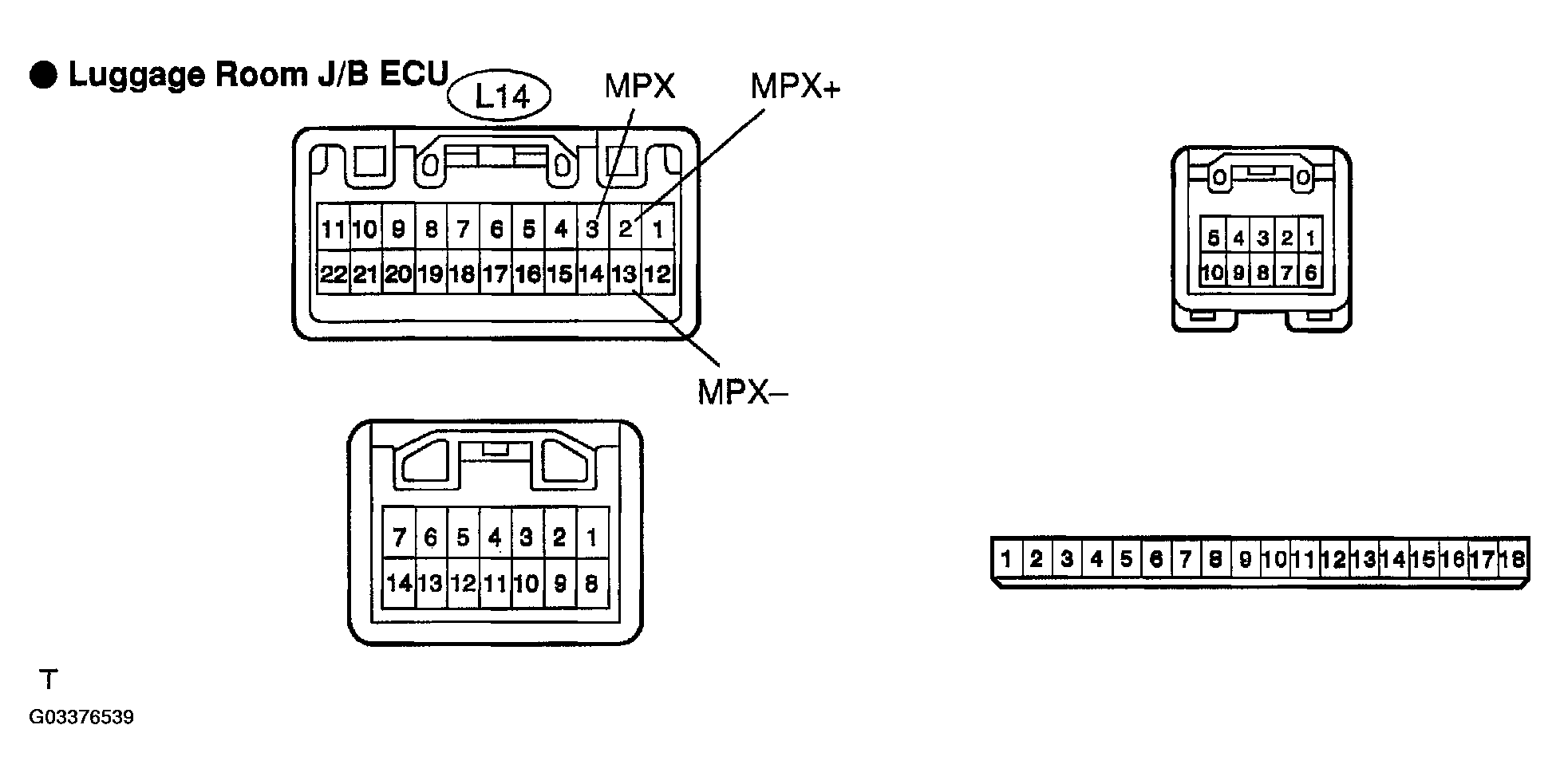

Fig 7: Identifying Luggage Room J\B ECU Terminals

G03376539

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

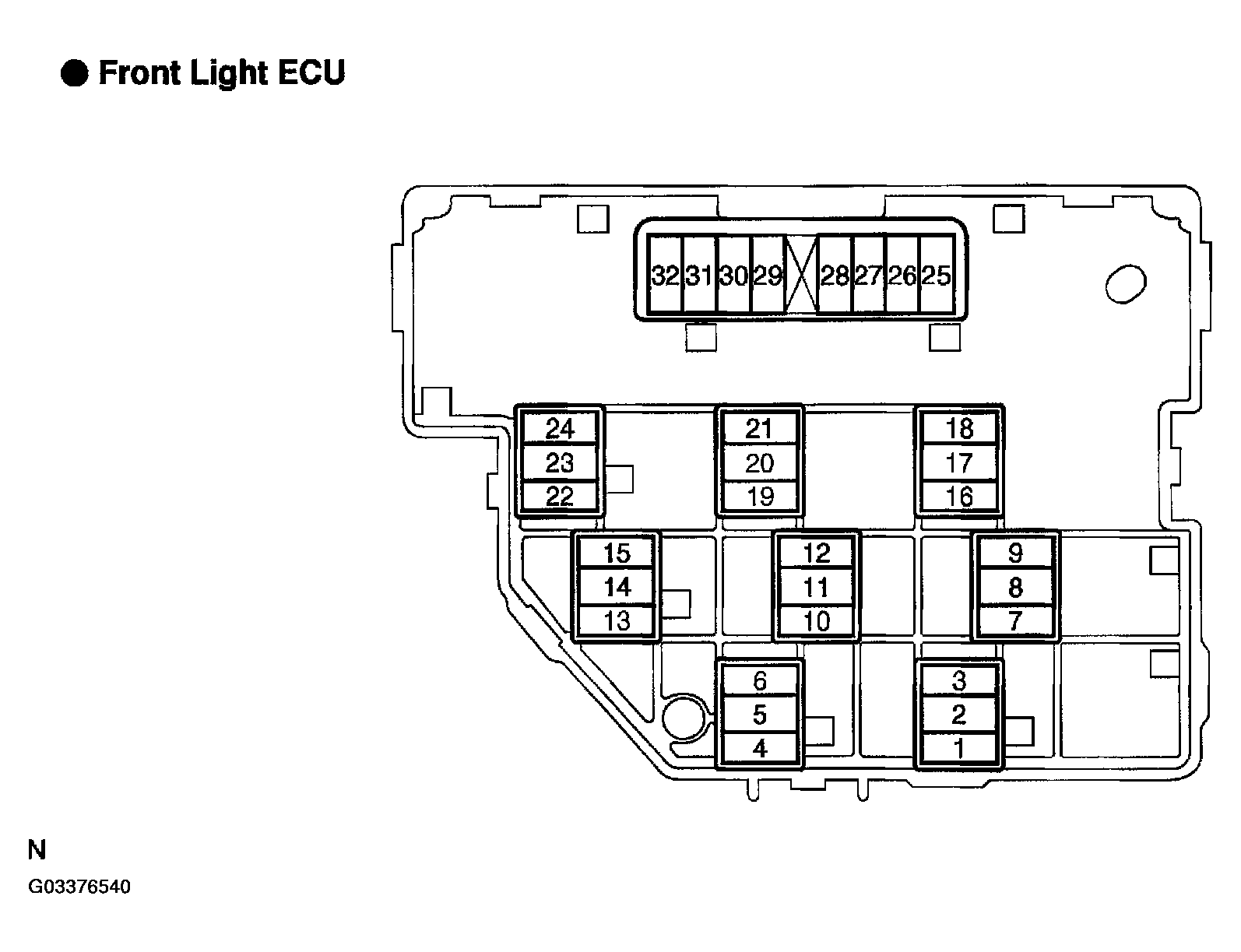

Fig 8: Identifying Front Light ECU Terminals

G03376540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

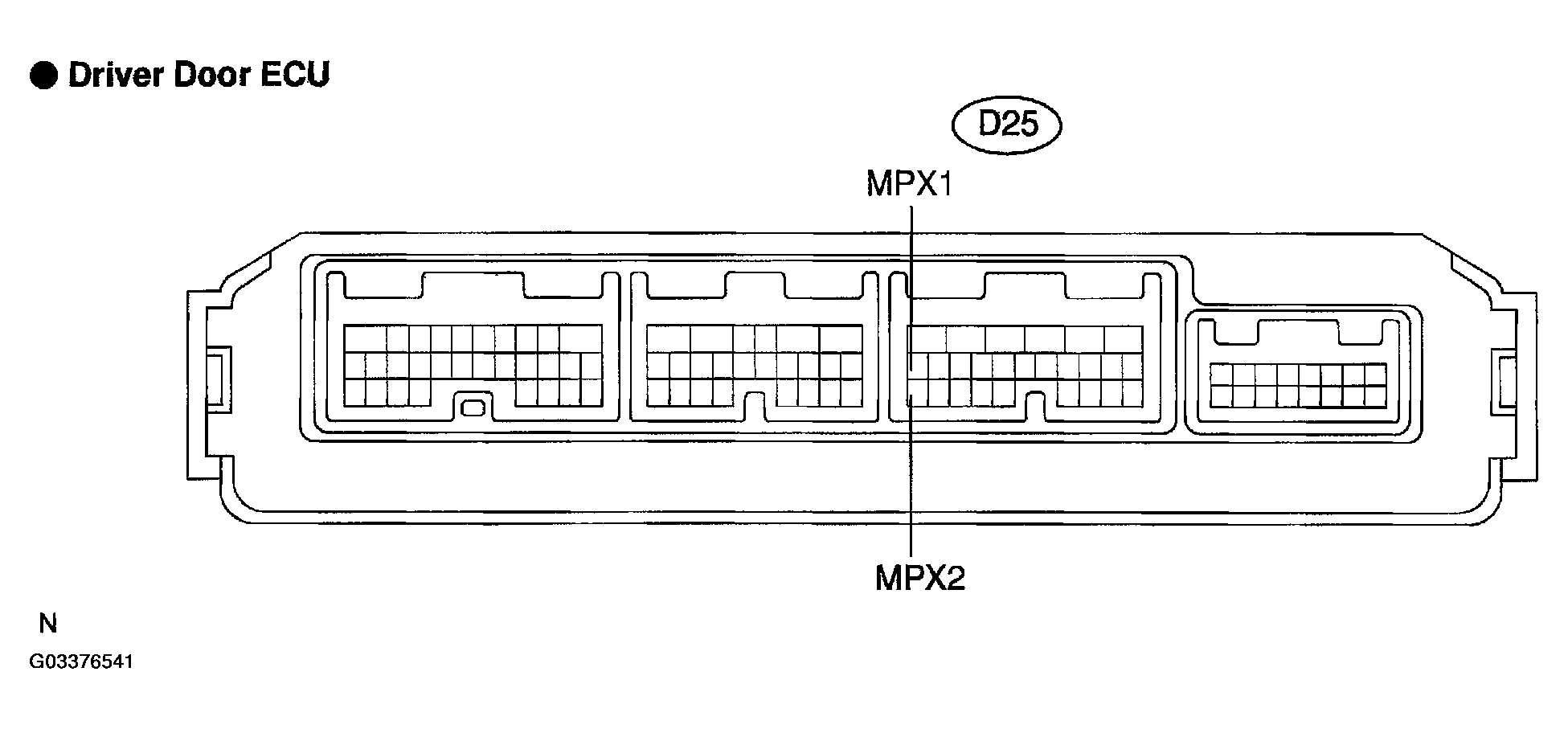

Fig 9: Identifying Driver Side J\B ECU Terminals

G03376541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

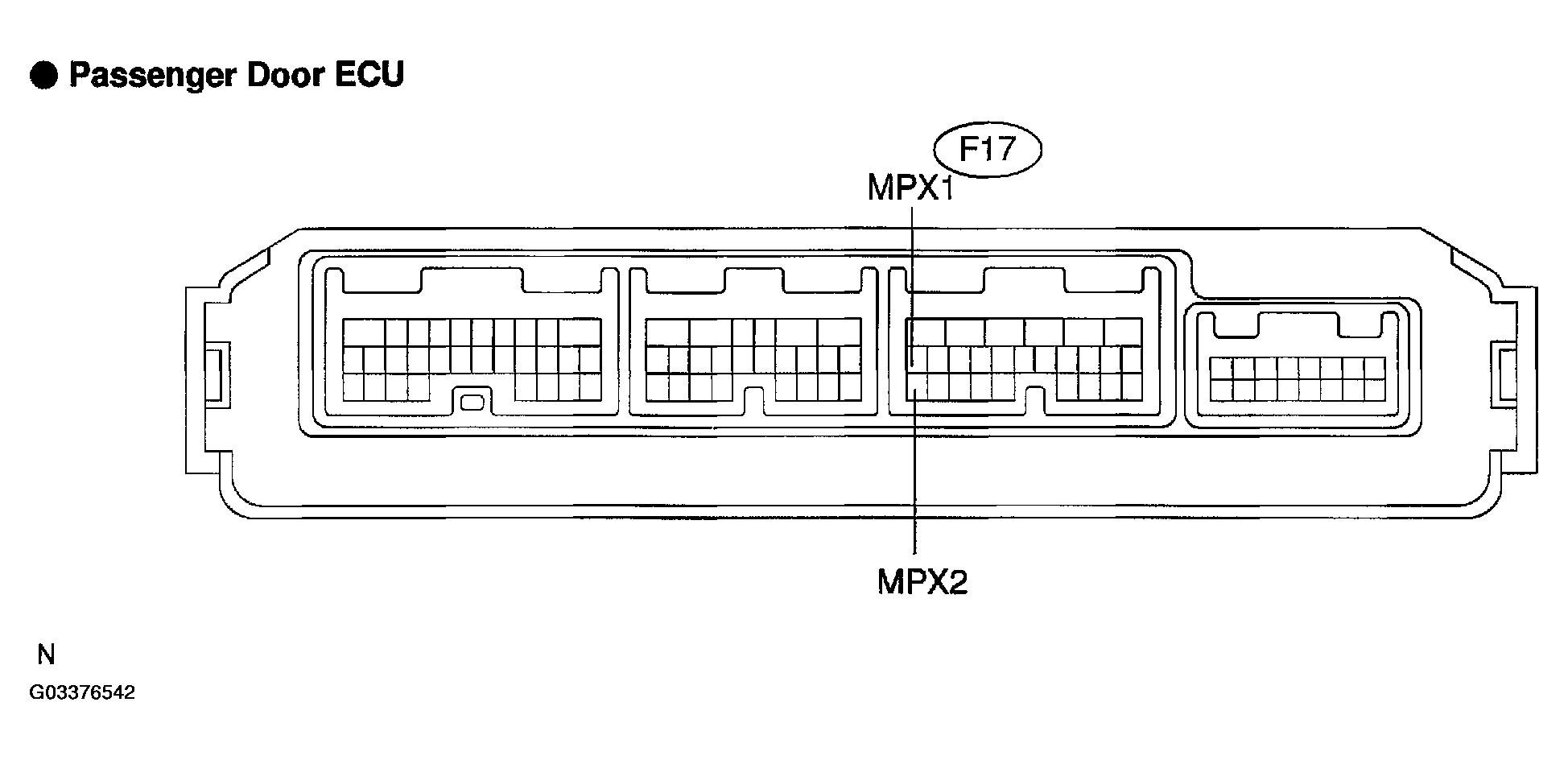

Fig 10: Identifying Passenger Door ECU Terminals

G03376542

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

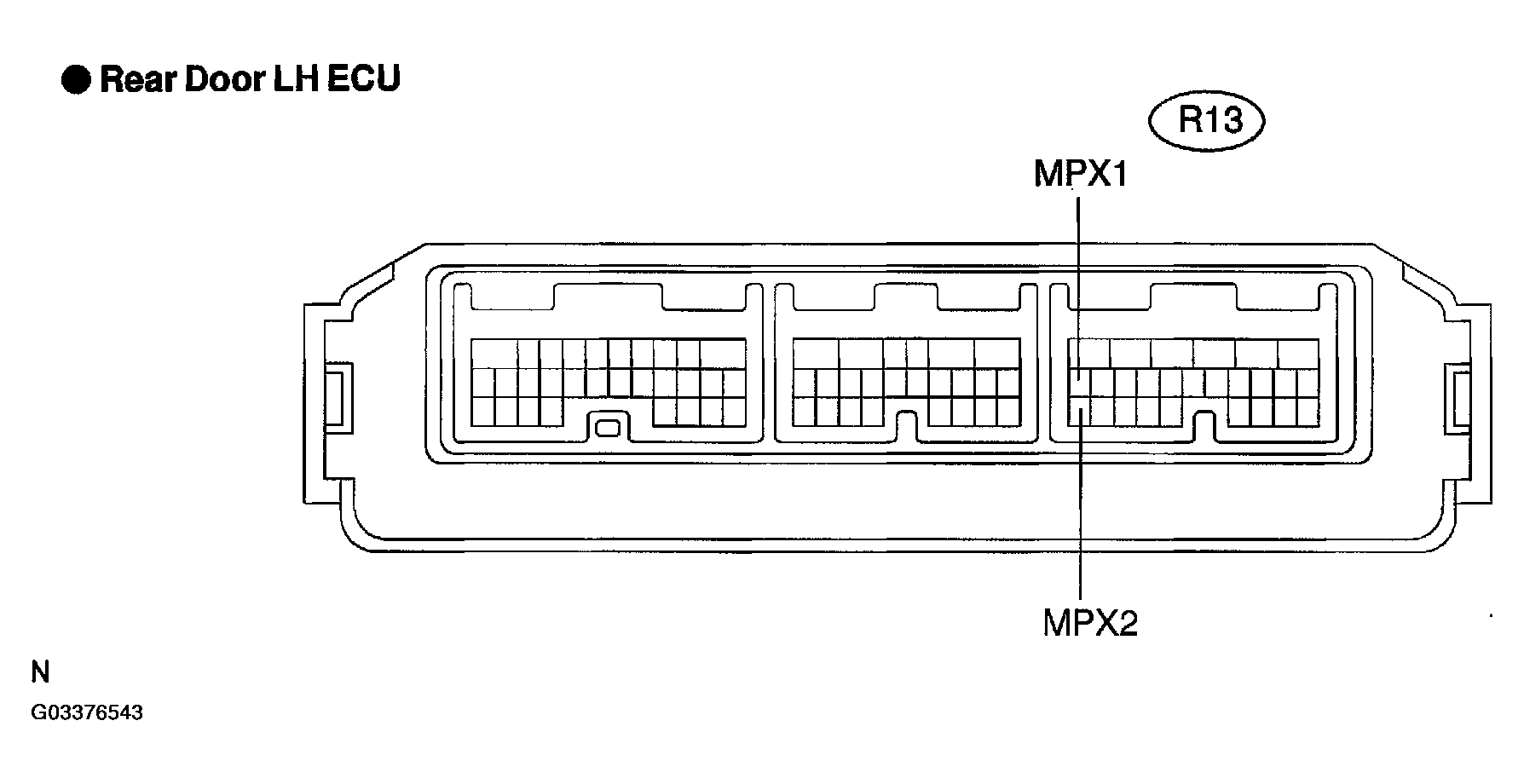

Fig 11: Identifying Rear Door LH ECU Terminals

G03376543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

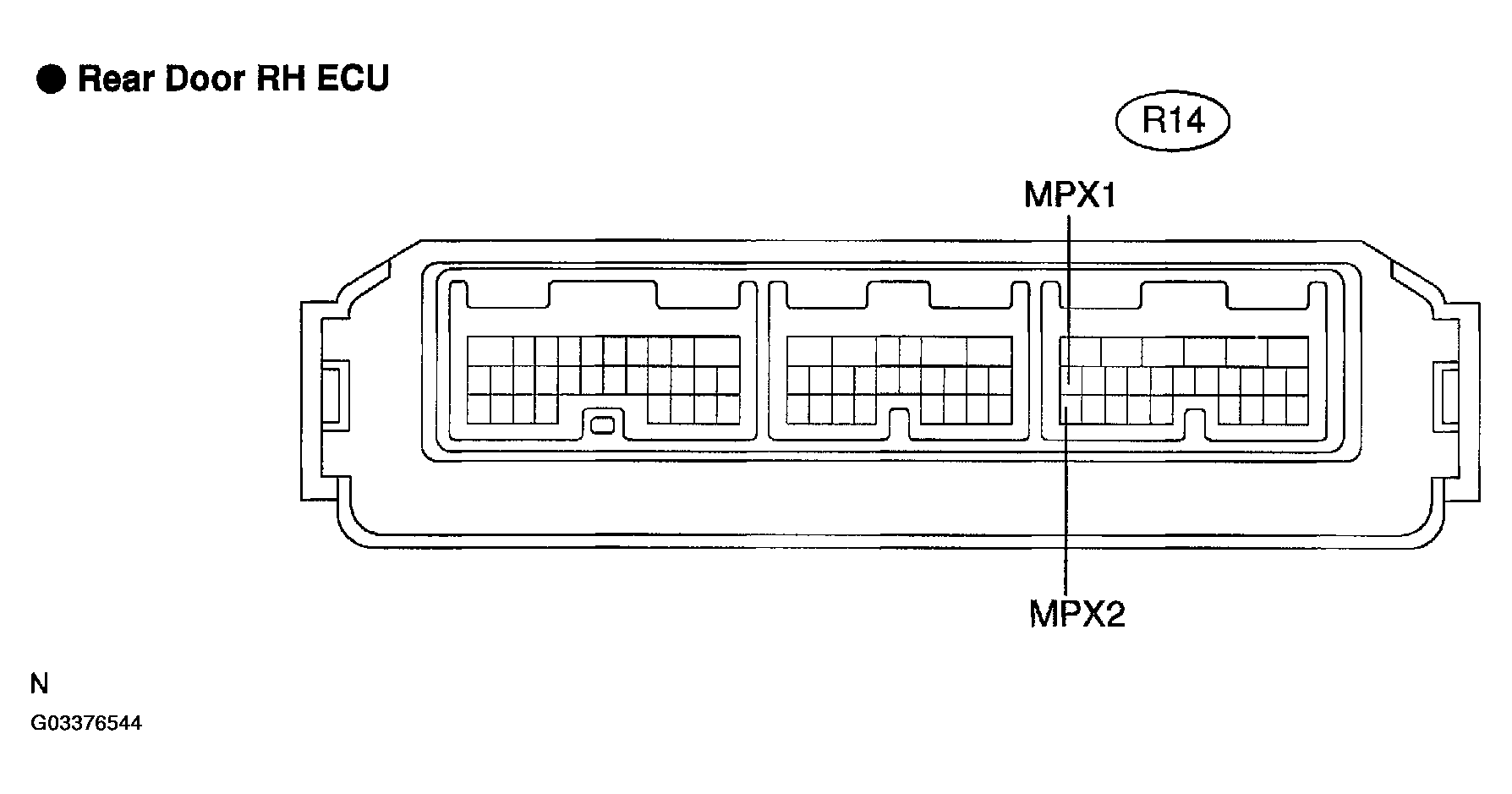

Fig 12: Identifying Rear Door RH ECU Terminals

G03376544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

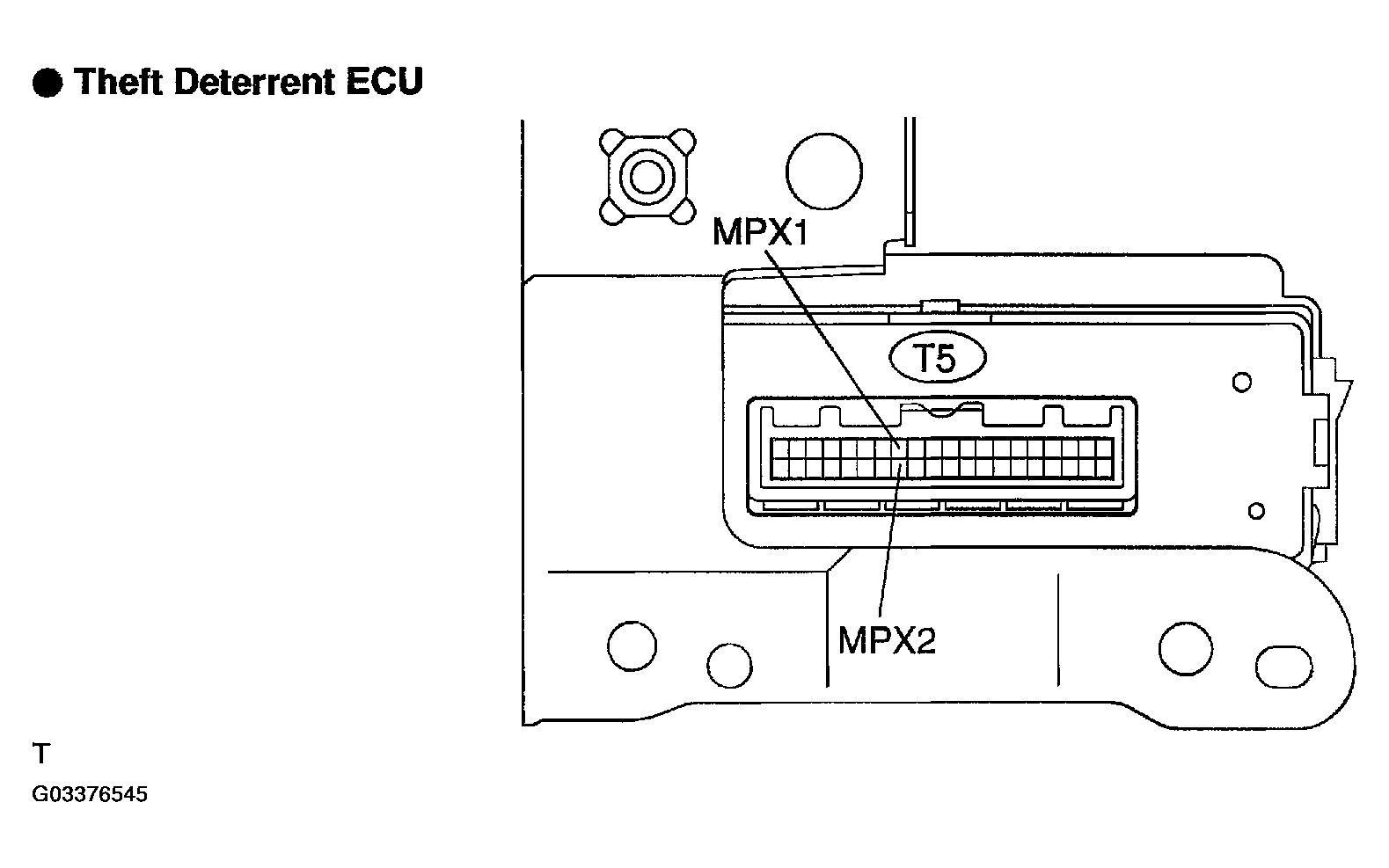

Fig 13: Identifying Theft Deterrent ECU Terminals

G03376545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

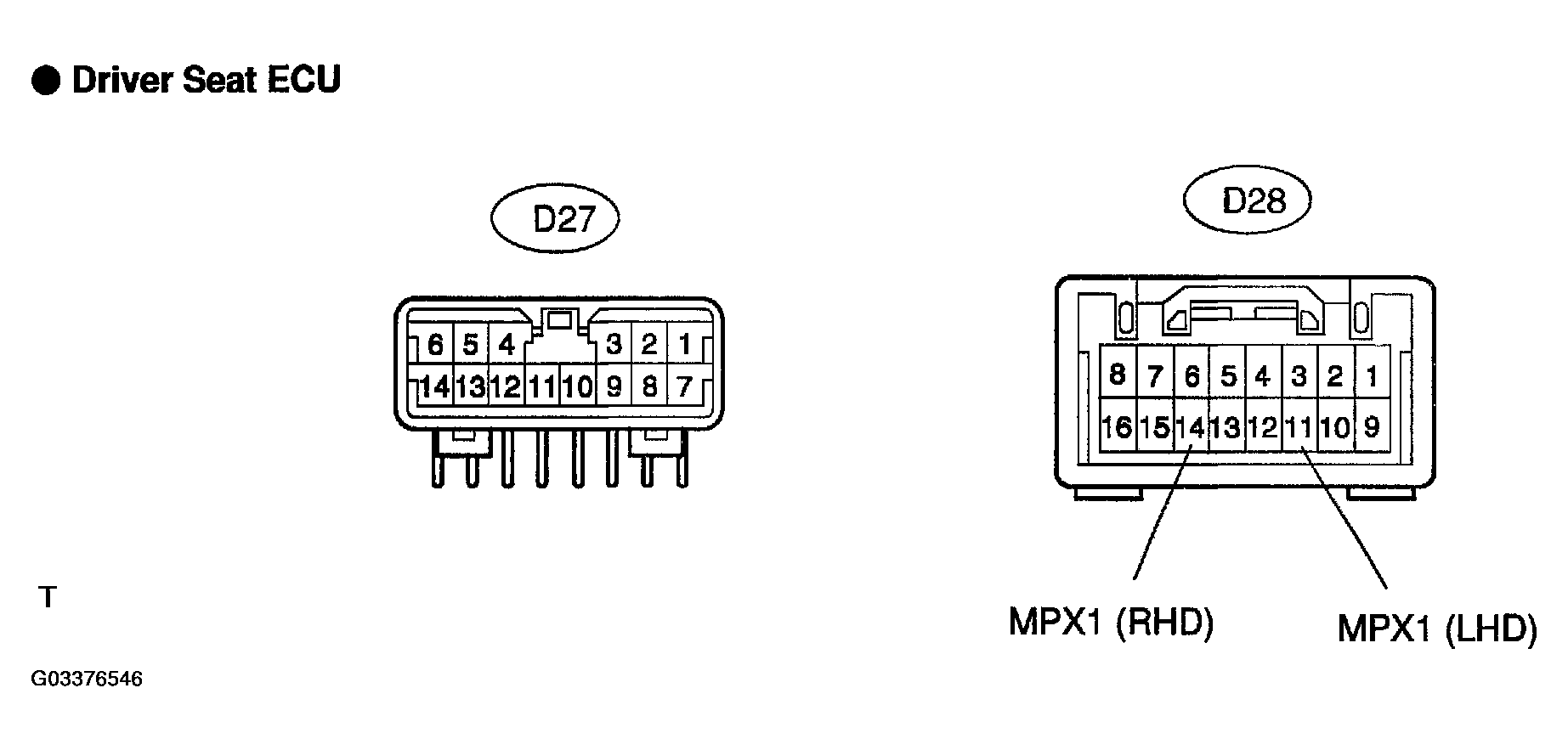

Fig 14: Identifying Driver Seat ECU Terminals

G03376546

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

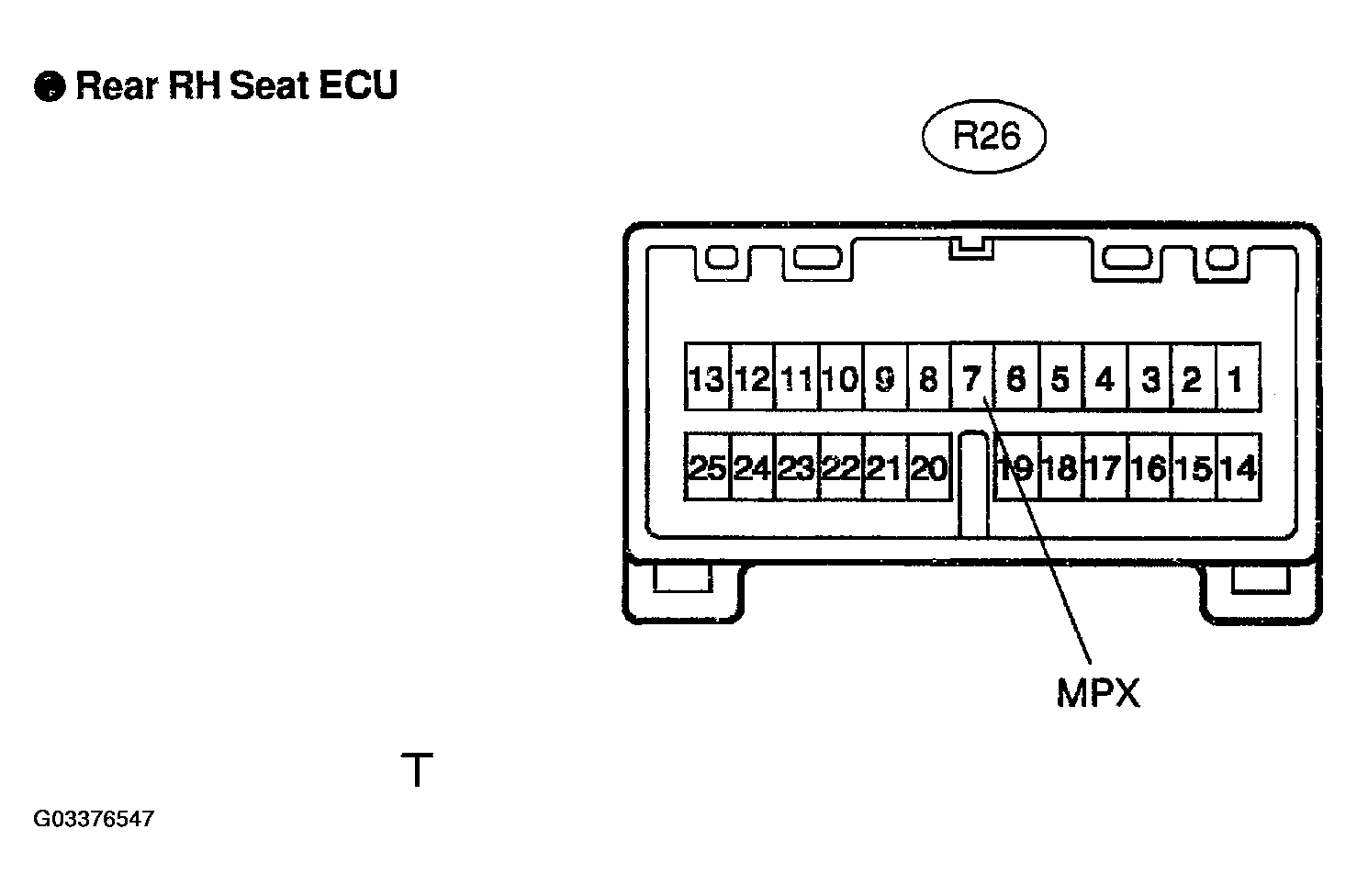

Fig 15: Identifying Rear RH Seat ECU Terminals

G03376547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

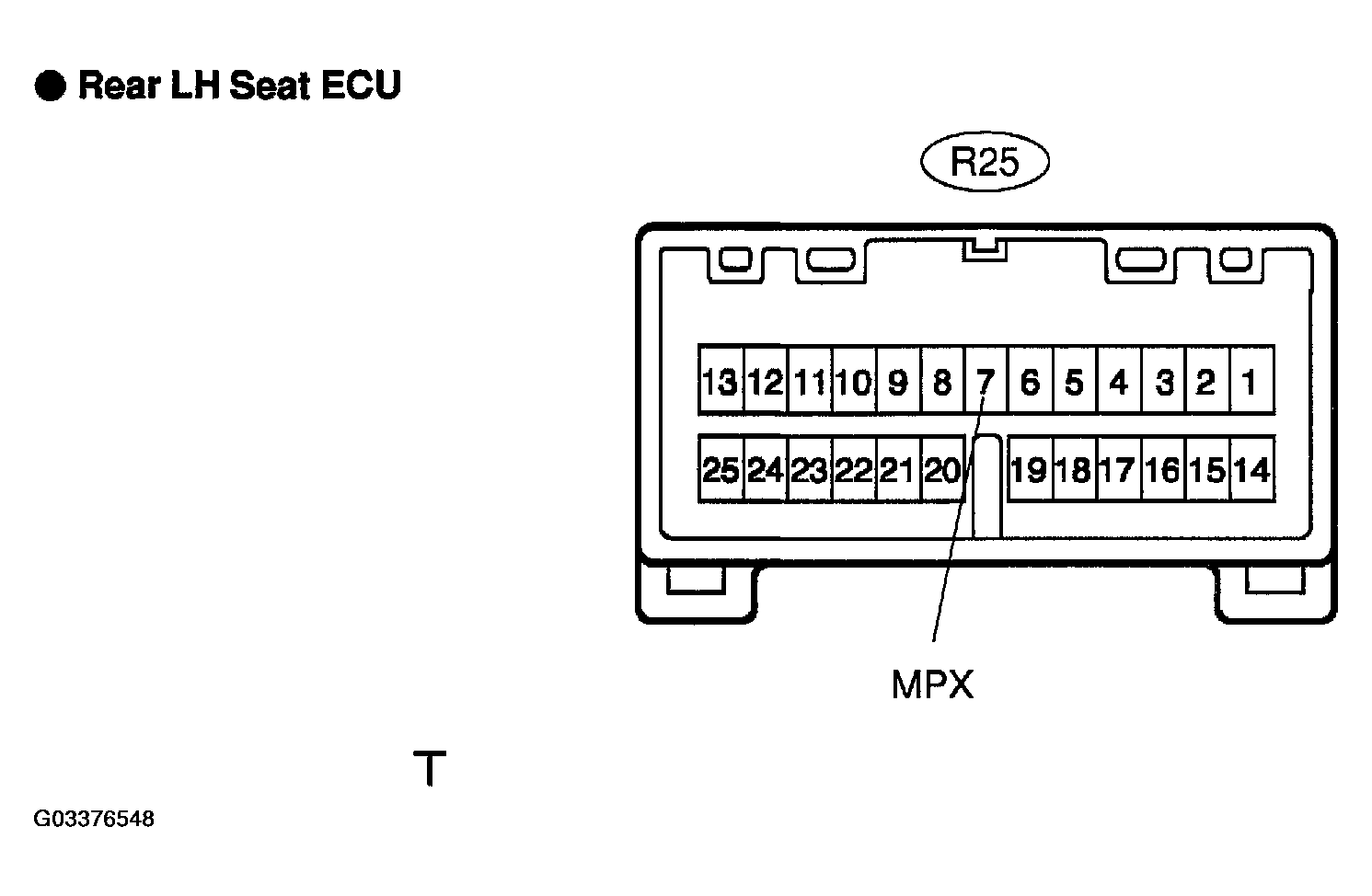

Fig 16: Identifying Rear LH Seat ECU Terminals

G03376548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

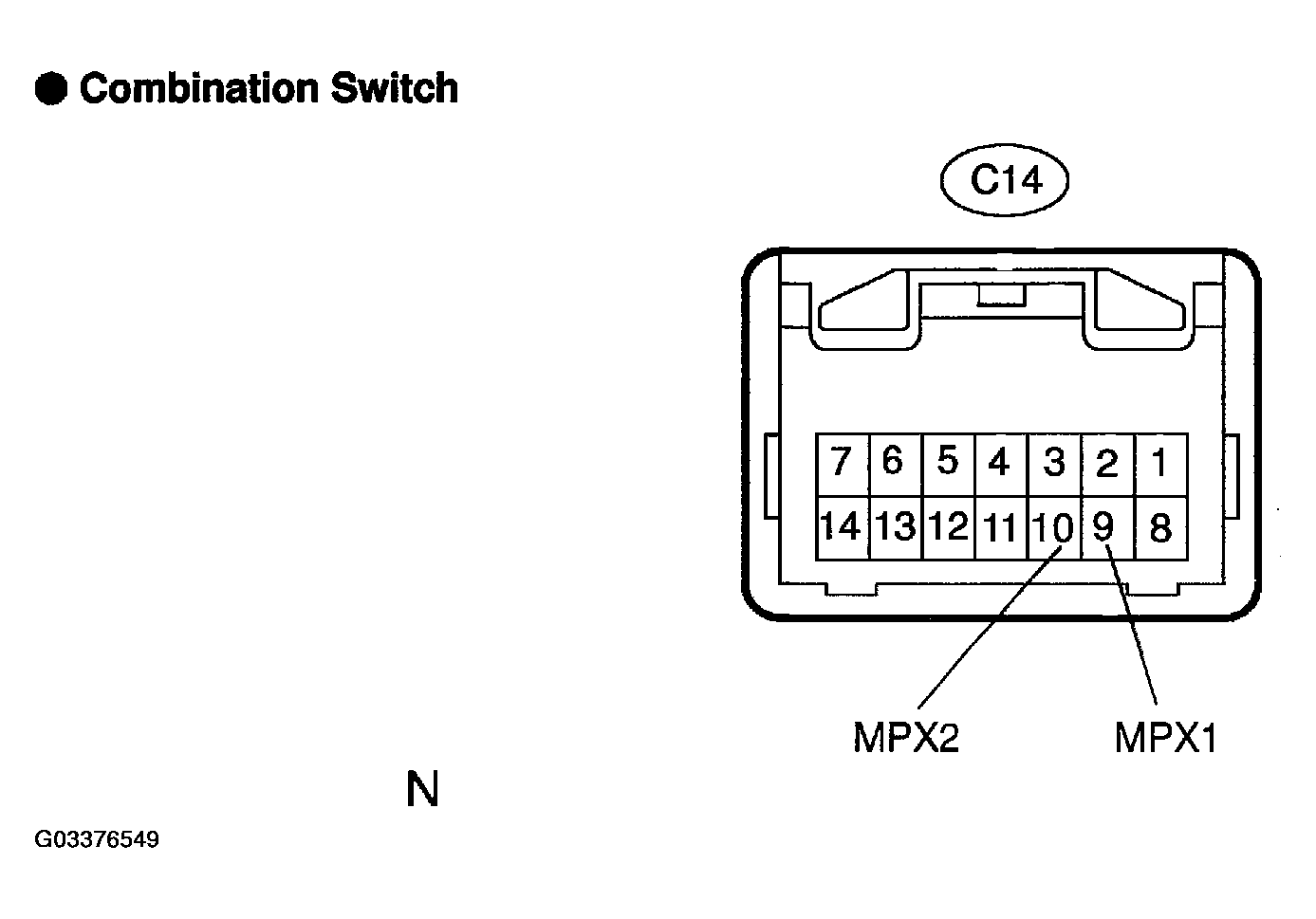

Fig 17: Identifying Combination Switch Terminals

G03376549

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

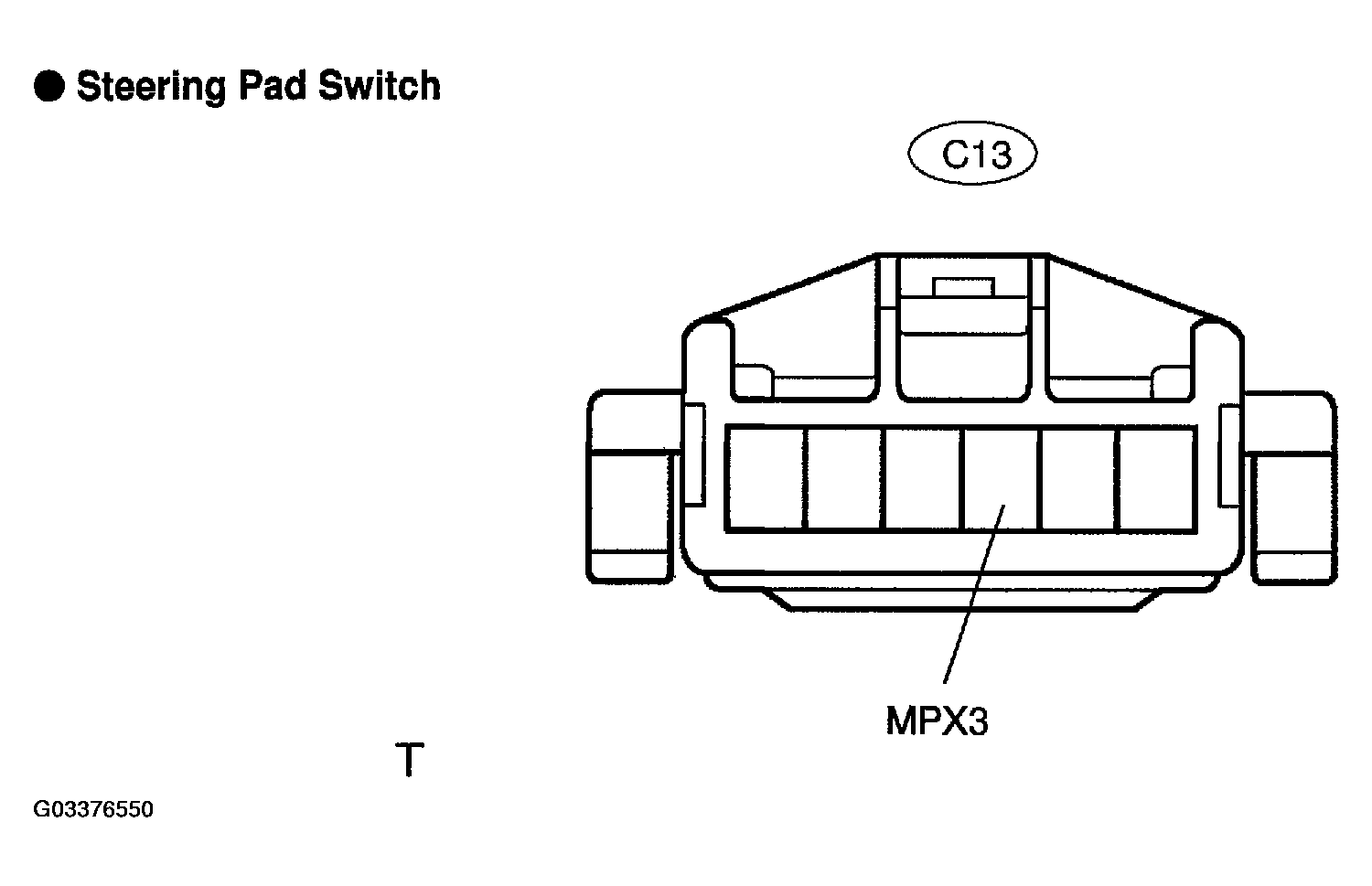

Fig 18: Identifying Steering Pad Switch Terminals

G03376550

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

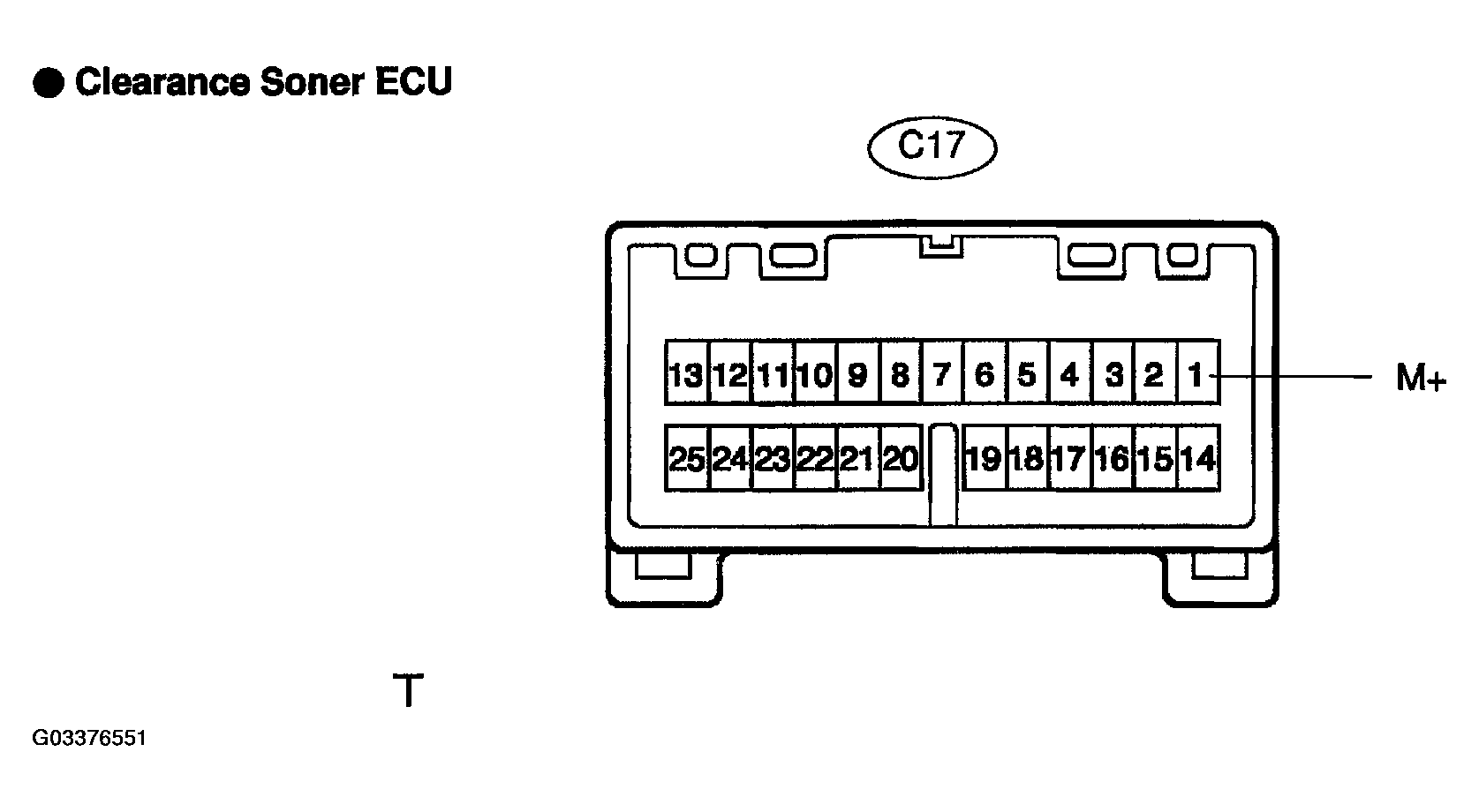

Fig 19: Identifying Clearance Sensor ECU Terminals

G03376551

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

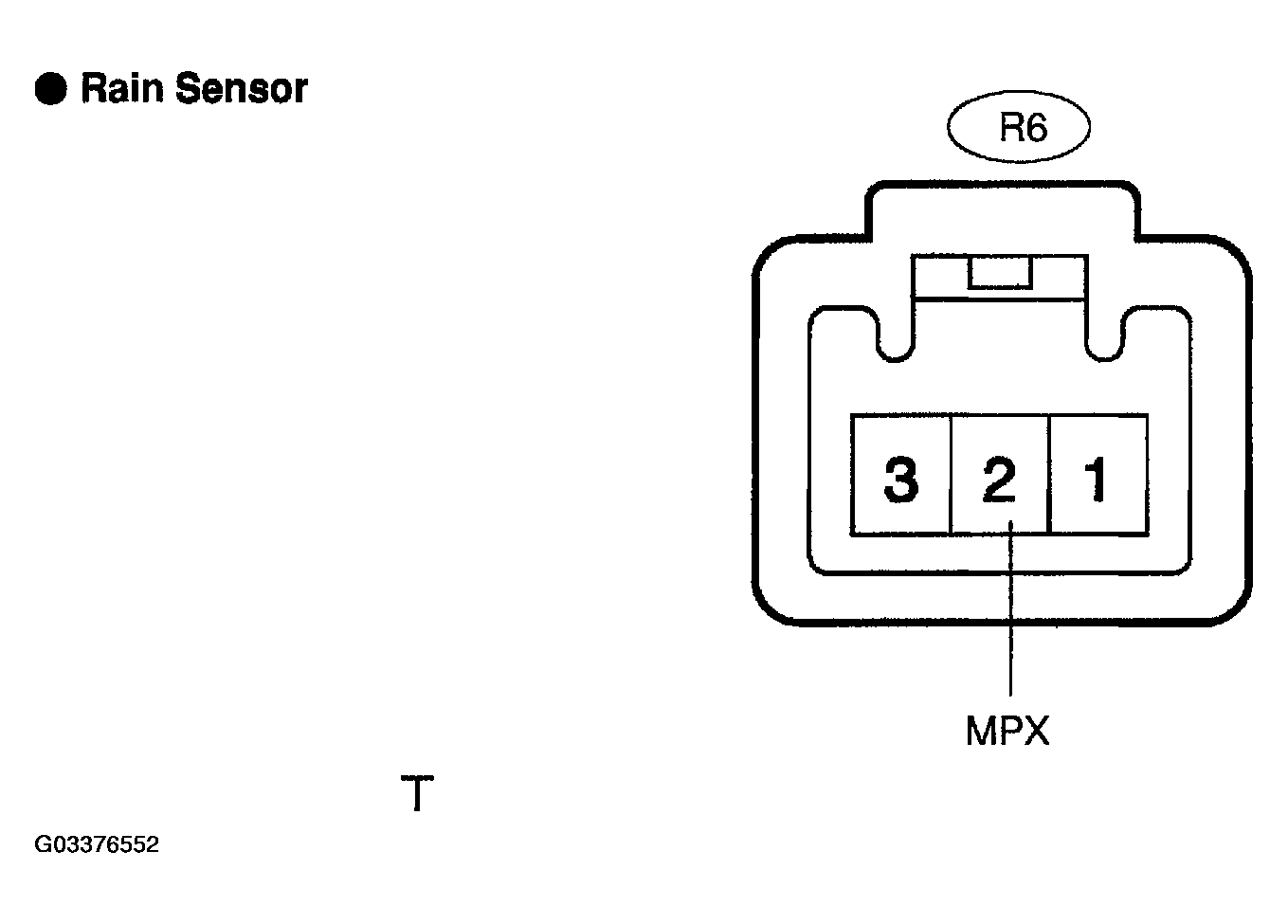

Fig 20: Identifying Rain Sensor Terminals

G03376552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

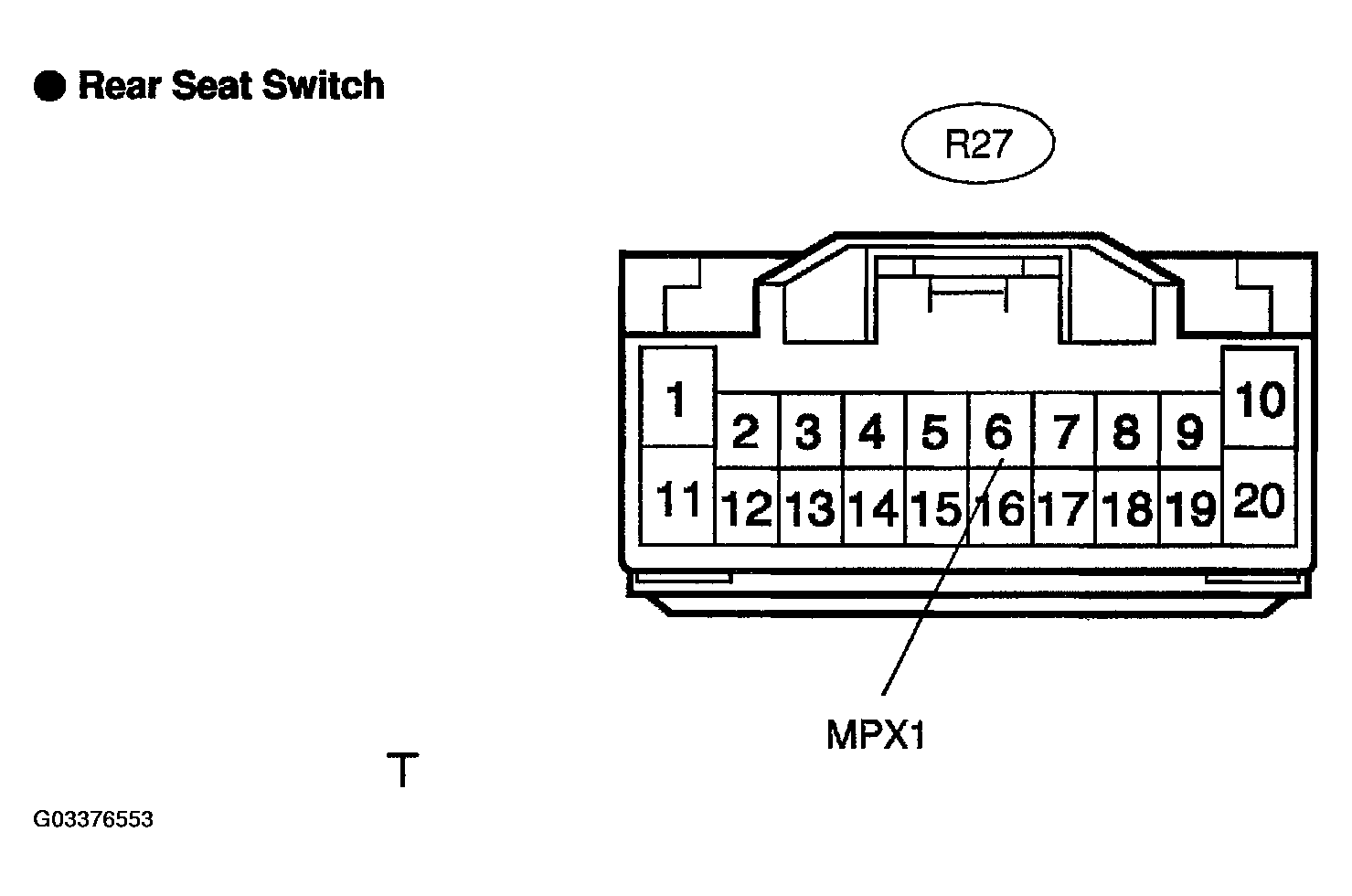

Fig 21: Identifying Rear Seat Switch Terminals

G03376553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

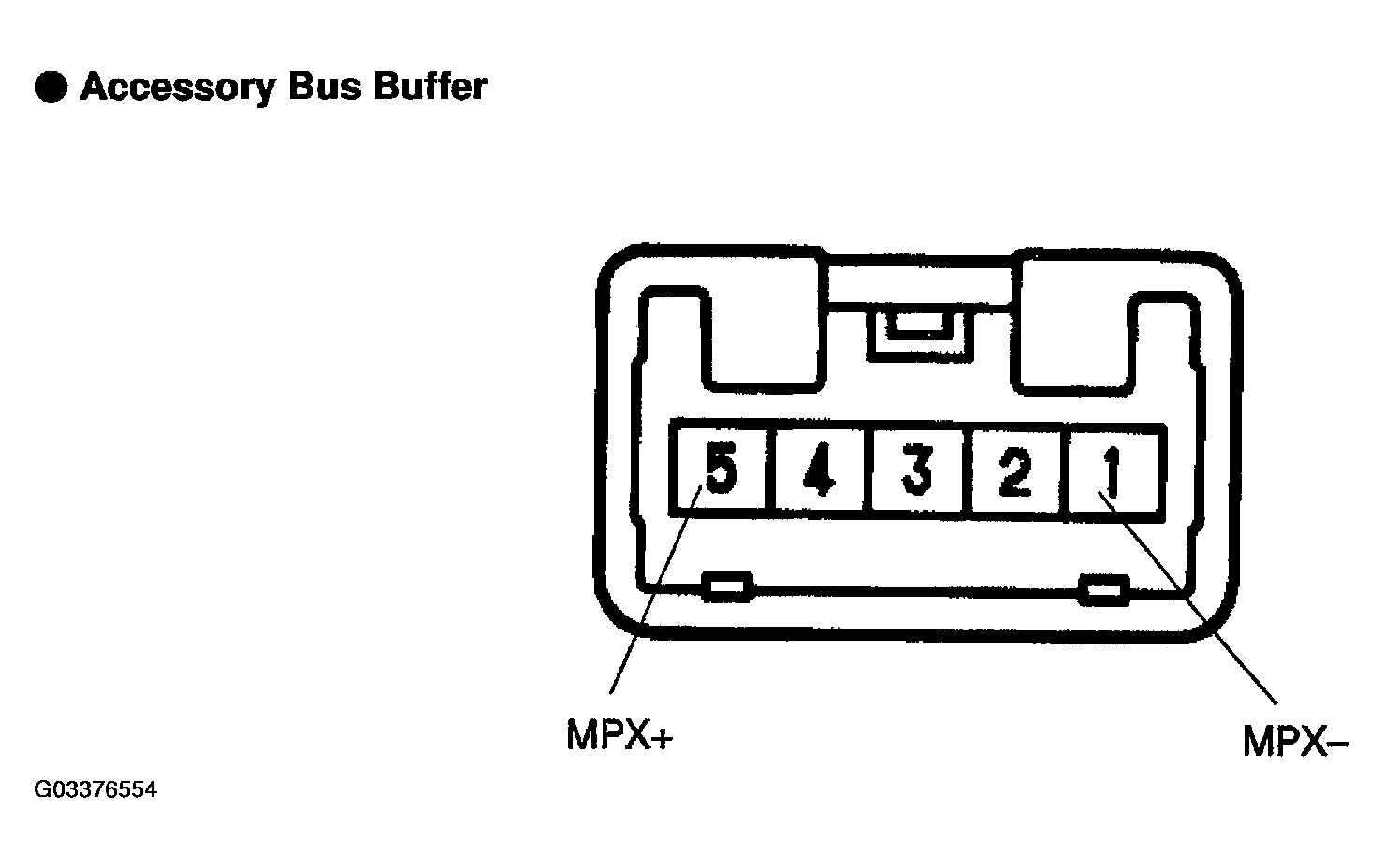

Fig 22: Identifying Accessary Seat Buffer Terminals

G03376554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

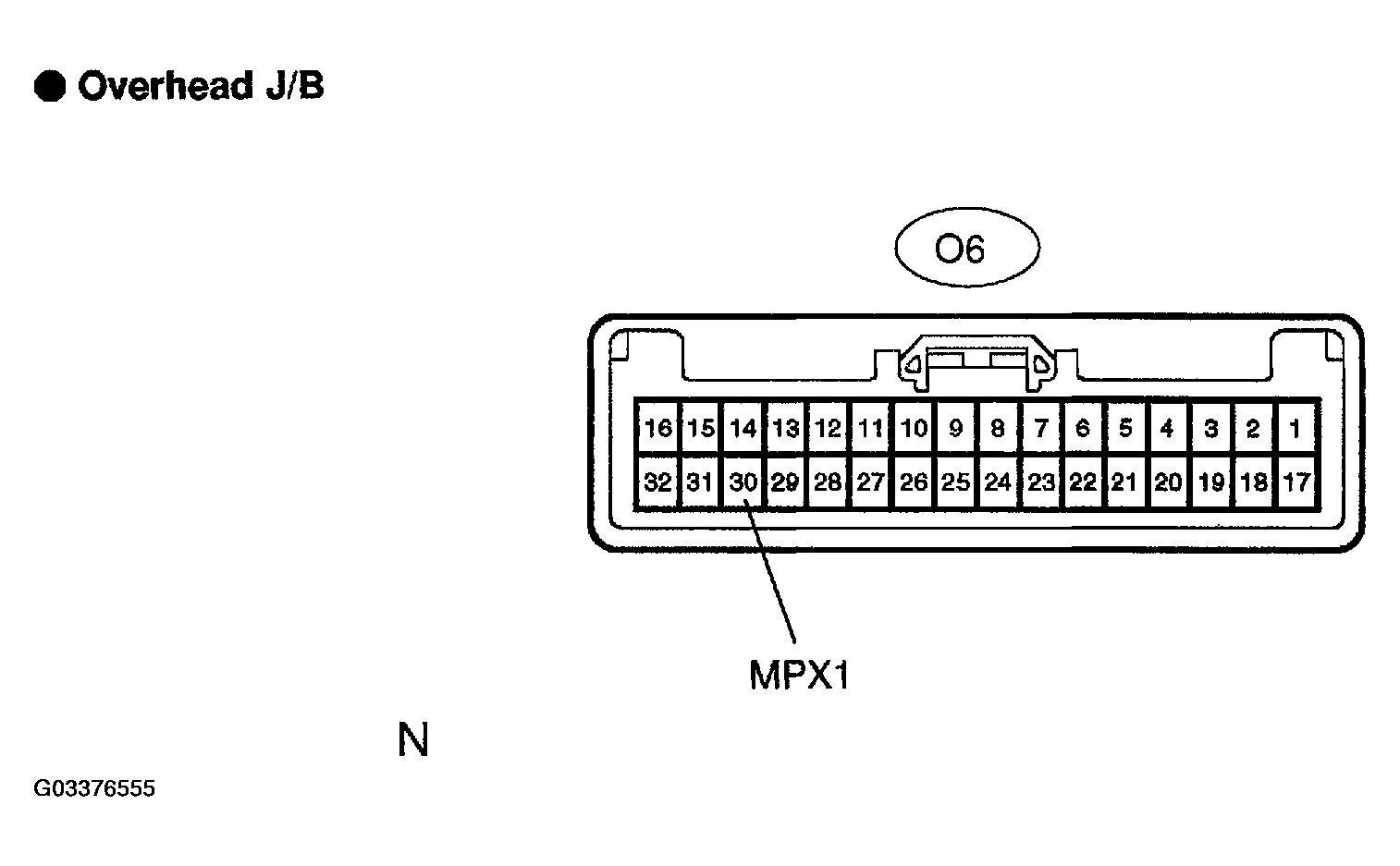

Fig 23: Identifying Over Head J/B Terminals

G03376555

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

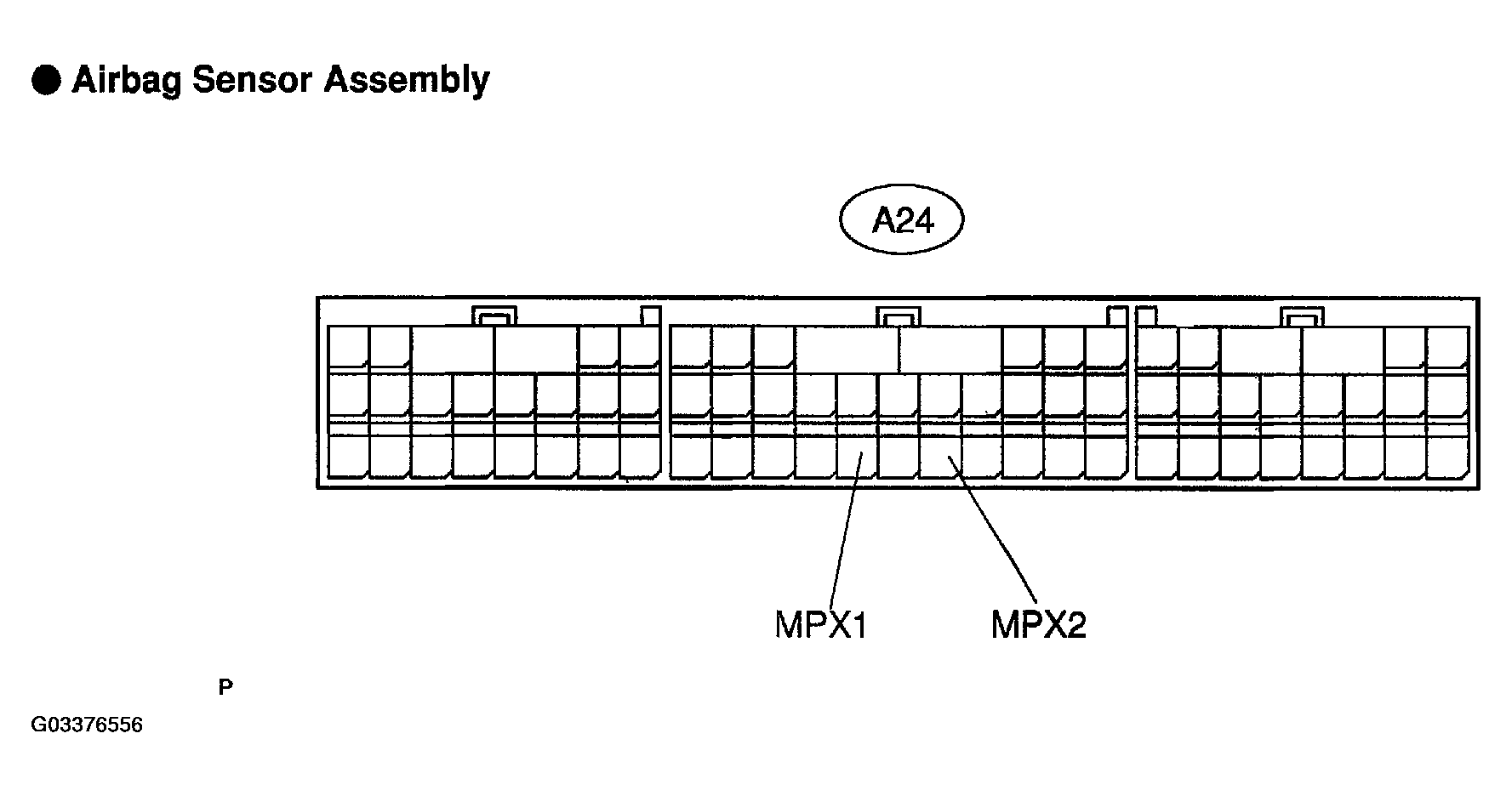

Fig 24: Identifying Airbag Sensor Assembly Terminals

G03376556

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

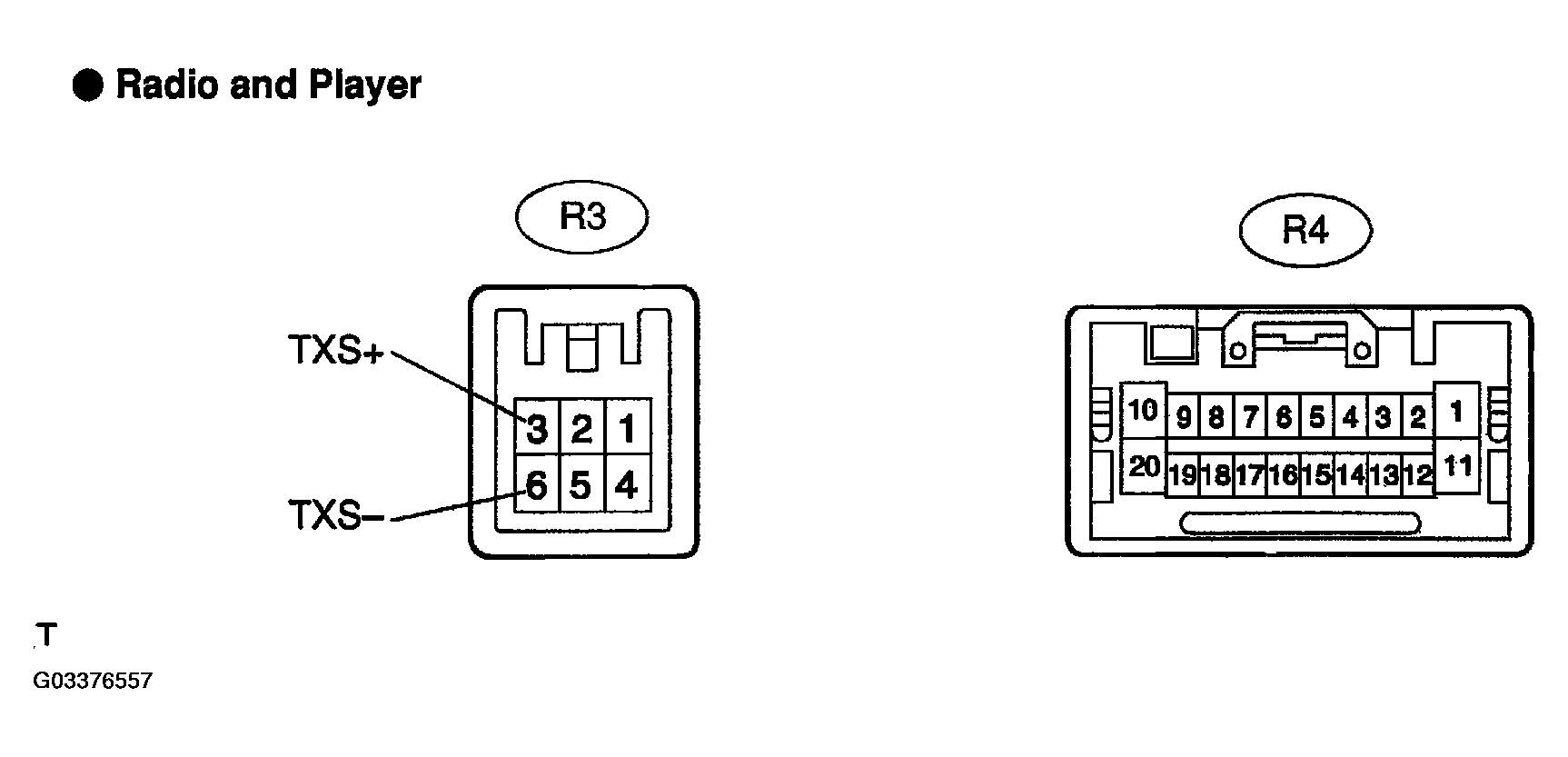

Fig 25: Identifying Radio And Player Terminals

G03376557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

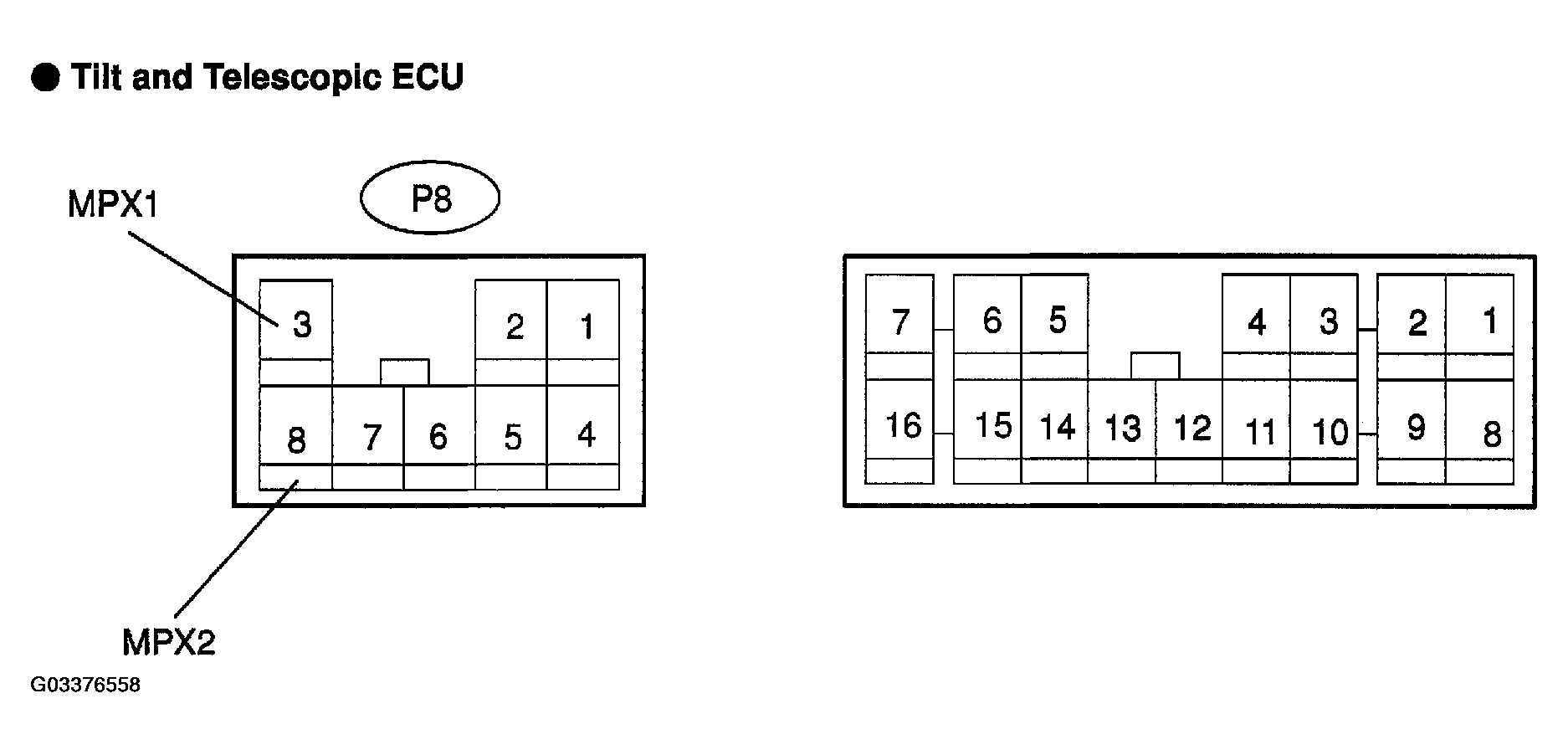

Fig 26: Identifying Tilt And Telescopic ECU Terminals

G03376558

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

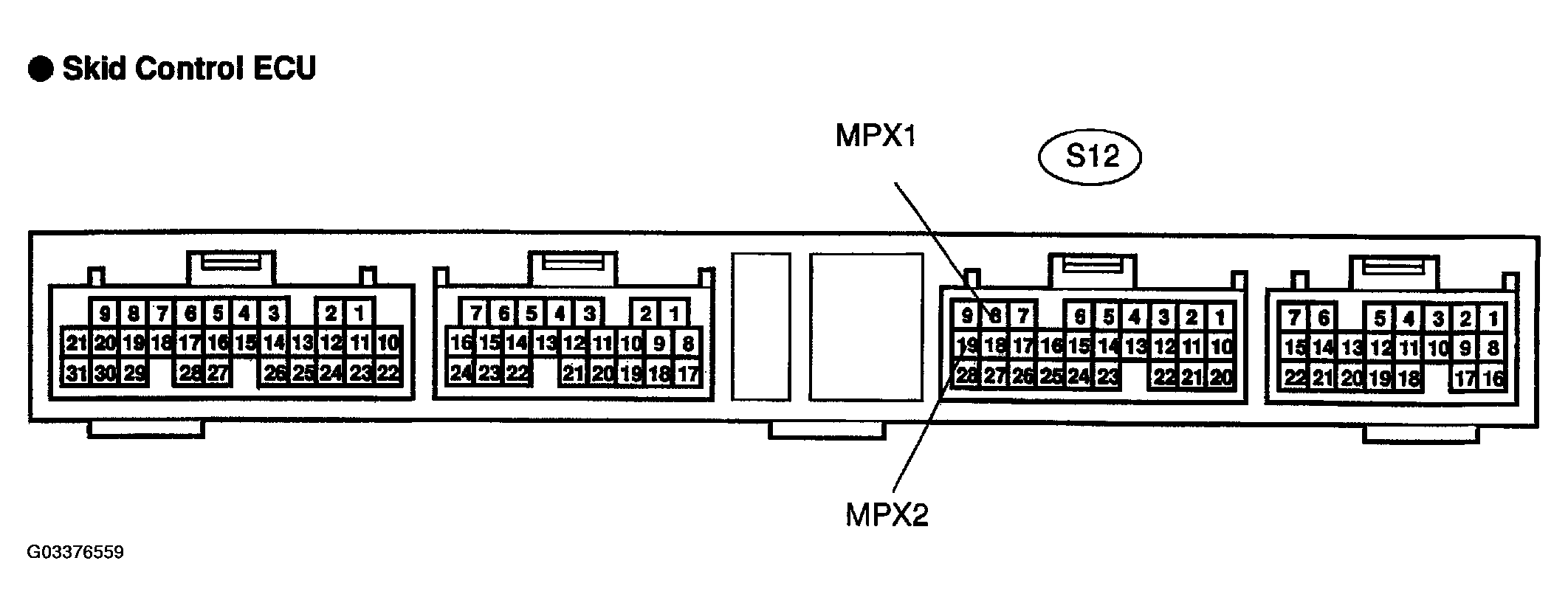

Fig 27: Identifying Skid Control ECU Components

G03376559

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

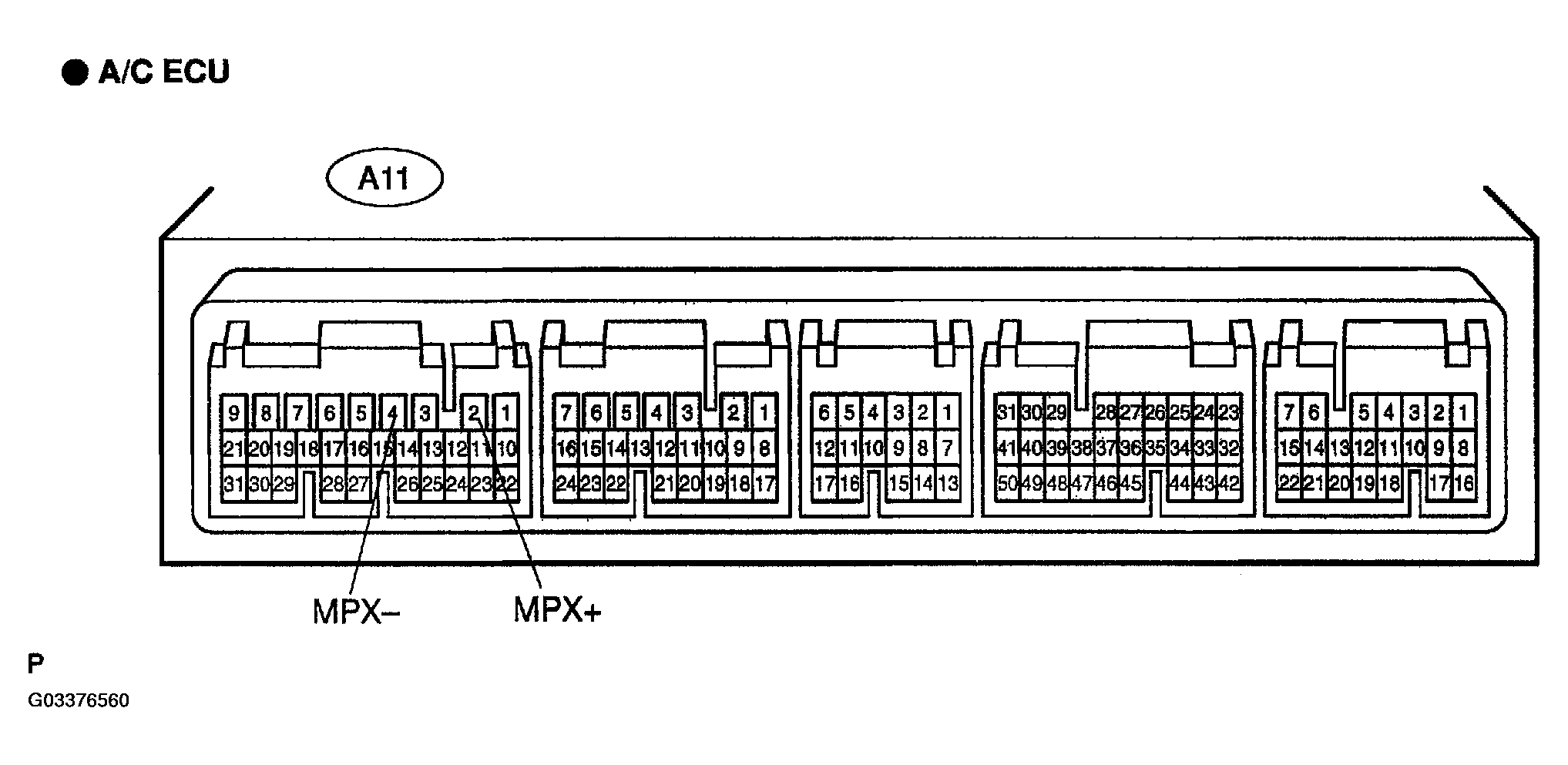

Fig 28: Identifying A/C ECU Terminals

G03376560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

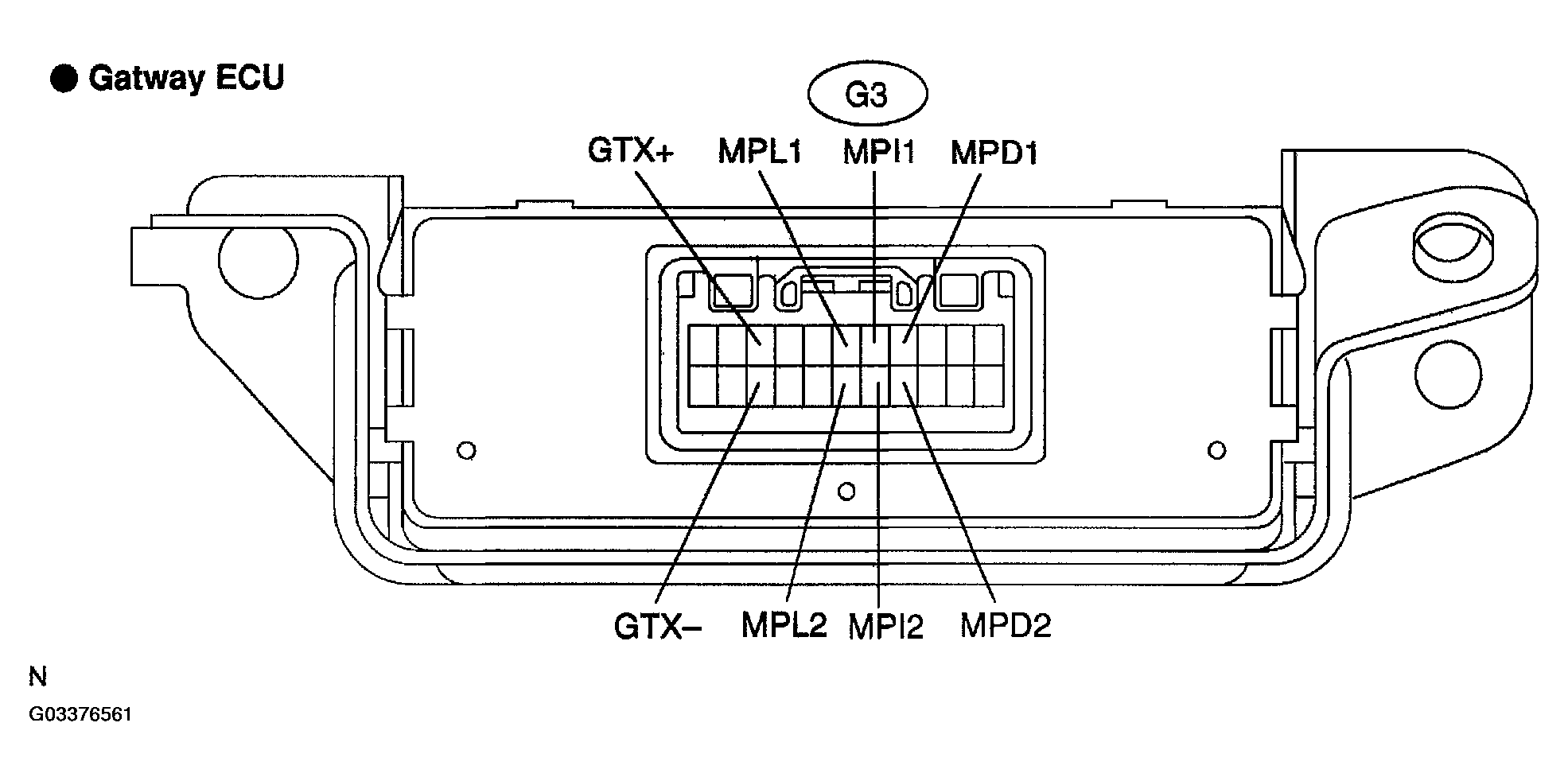

Fig 29: Identifying Gate Way ECU Terminals

G03376561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
