Circuit Description

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

This DTC is output when +B or GND short occurs on the rear lights control system communication bus.

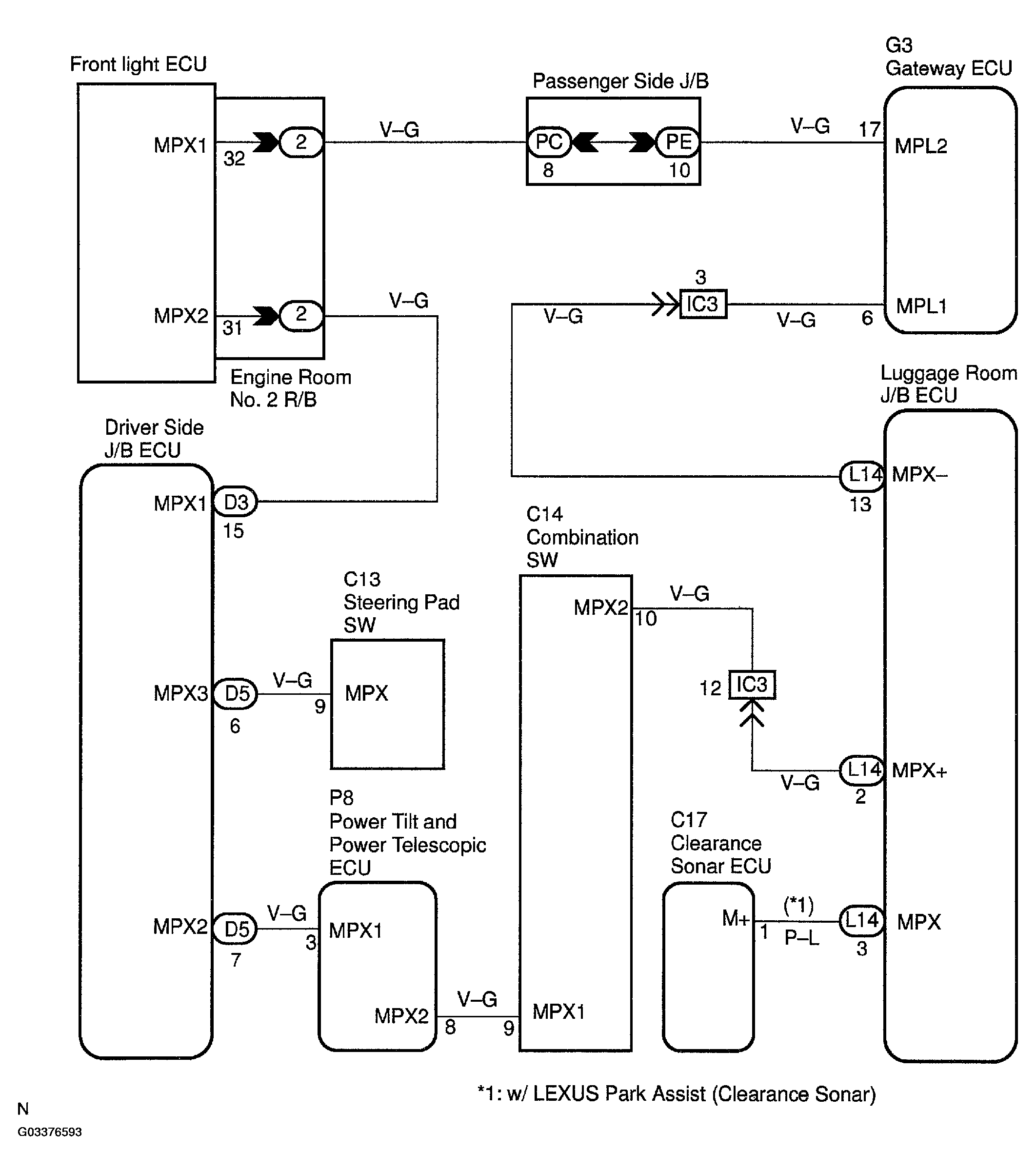

Fig 1: Light System Communication Bus Malfunction Wiring Diagram
G03376593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
