Inspection Procedure

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

Check driver side J/B ECU.
CHECK:

Check whether or not meter illustration adjustment can be performed with the rheostat volume.
1. NG : Replace driver side J/B ECU (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
2. OK : Go to next step.

Check wire harness.

PREPARATION:

Pull out the ECU connectors mentioned below.

DTC DETECTION ITEM

Wire harness side connector of ECU	Terminal
Driver side J/B ECU - Front light ECU	MPX1 (D3-15)-MPX2 (31)
Driver side J/B ECU - Power tilt and power telescopic ECU	MPX2 (D5-7) - MPX1 (P8-3)

CHECK:

Check continuity of the wire harness between the connectors.

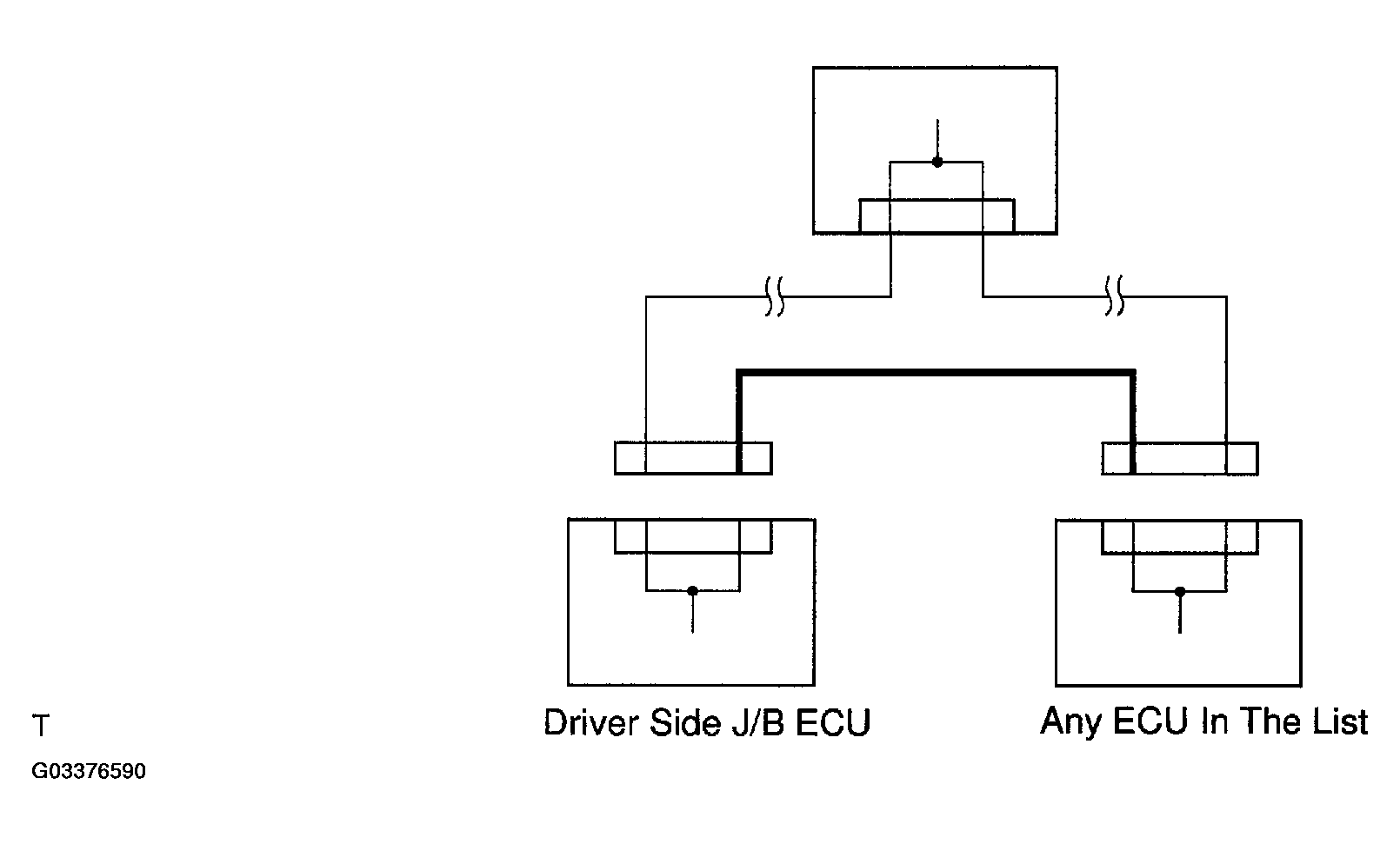

Fig 1: Checking Continuity Of Wire Harness Between Connectors

OK:

There is a continuity between the connectors.

HINT:

If there is OPEN in any wire harness, please repair it.

NG : Repair or replace wire harness.
OK : Replace driver side J/B ECU (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
