Inspection Procedure

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

Check wire harness.

PREPARATION:

Pull out the ECU connectors mentioned below.

DTC DETECTION ITEM

Wire harness side connector of ECU	Terminal
Center cluster integration panel - A/C ECU	MPX+ (C6-3) - MPX- (A11-4)
Center cluster integration panel - Gateway ECU	MPX- (C6-4) - MPI1 (G3-5)

CHECK:

Check continuity of the wire harness between the connectors.

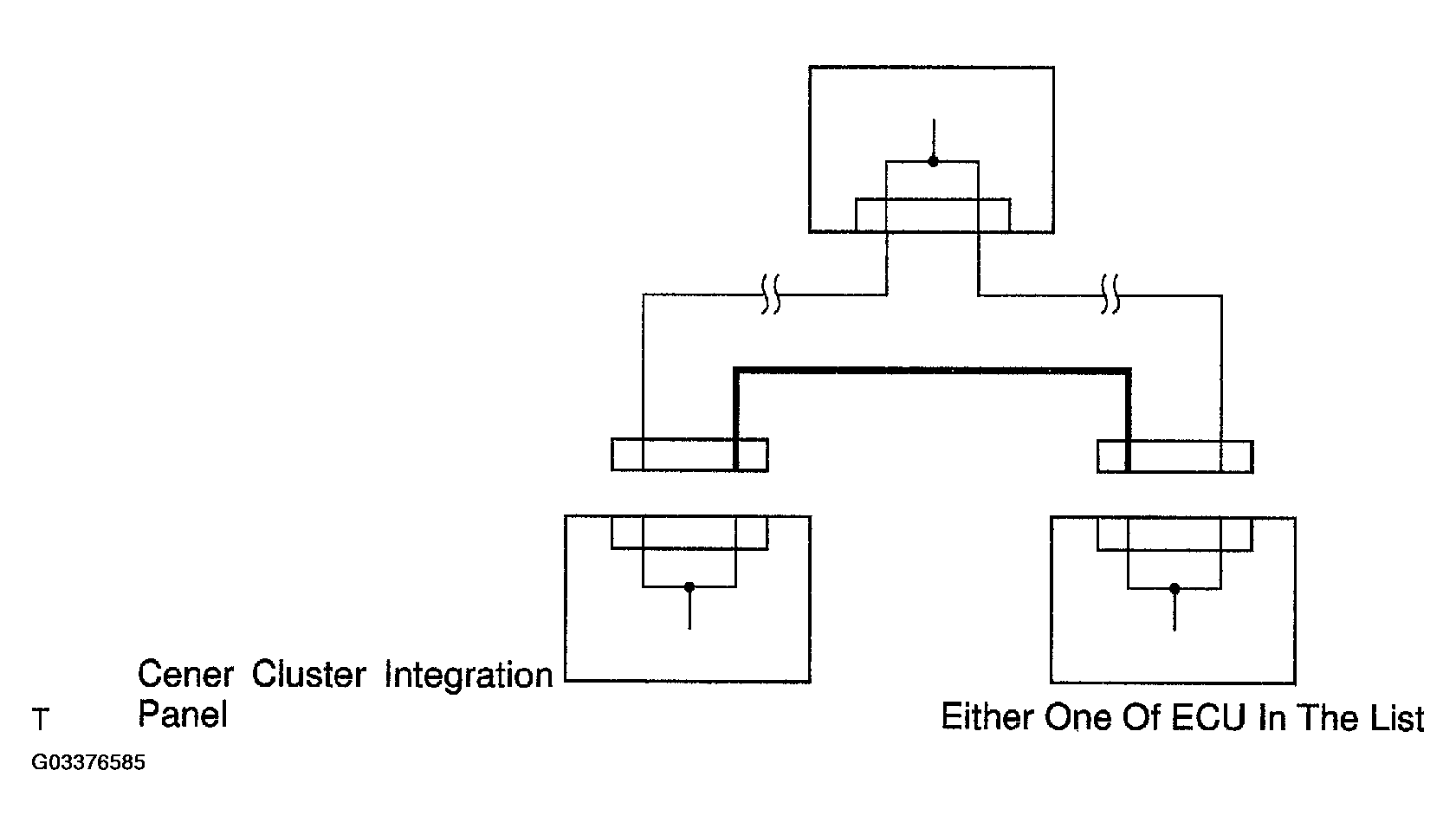

Fig 1: Checking Continuity Of Wire Harness Between Connectors

OK:

There is a continuity between the connectors.

HINT:

If there is OPEN in any wire harness, please repair it.

NG : Repair or replace wire harness.
OK : Replace center cluster integration panel (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
