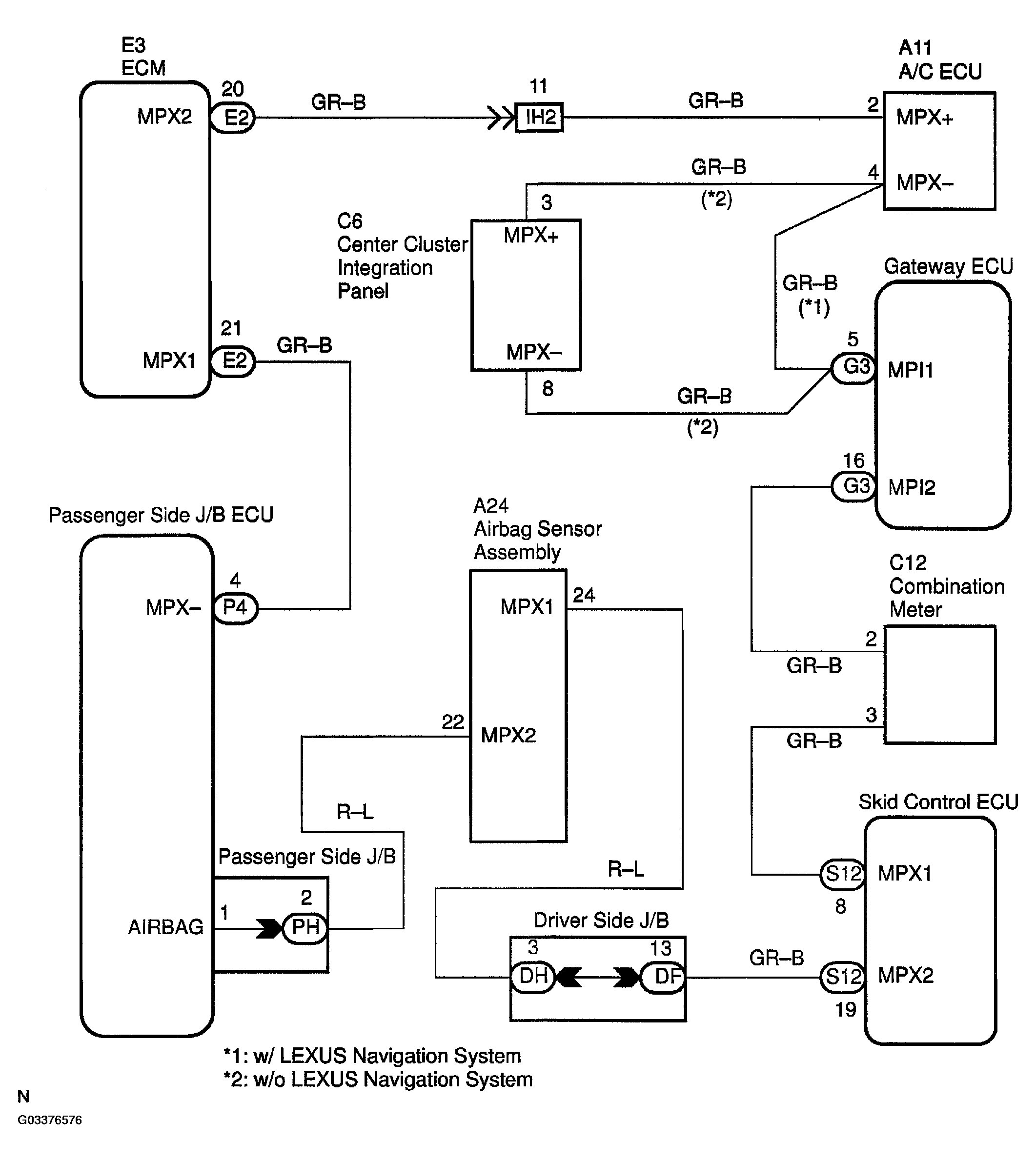

DTC B1266, B1267: Instrument panel system communication [| bus malfunction (+B short), Instrument panel system communication bus malfunction (GND short): Wiring Diagram
WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
