Check tilt and telescopic ECU.
CHECK:

Check the operation of the manual tilt and telescopic.

HINT:

With this inspection, whether or not the tile and telescopic ECU CPU functions normally can be diagnosed.
1. NG : Replace tilt and telescopic ECU (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
2. OK : Go to next step.

Check wire harness.

PREPARATION:

Pull out the ECU connectors mentioned below.

DTC DETECTION ITEM

Wire harness side connector of ECU	Terminal
Tilt and telescopic ECU - Driver side J/B ECU	MPX1 (P8-3) - MPX2 (D3-7)
Tilt and telescopic ECU - Combination switch	MPX2 (P8-8) - MPX1 (C14-9)

CHECK:

Check continuity of the wire harness between the connectors.

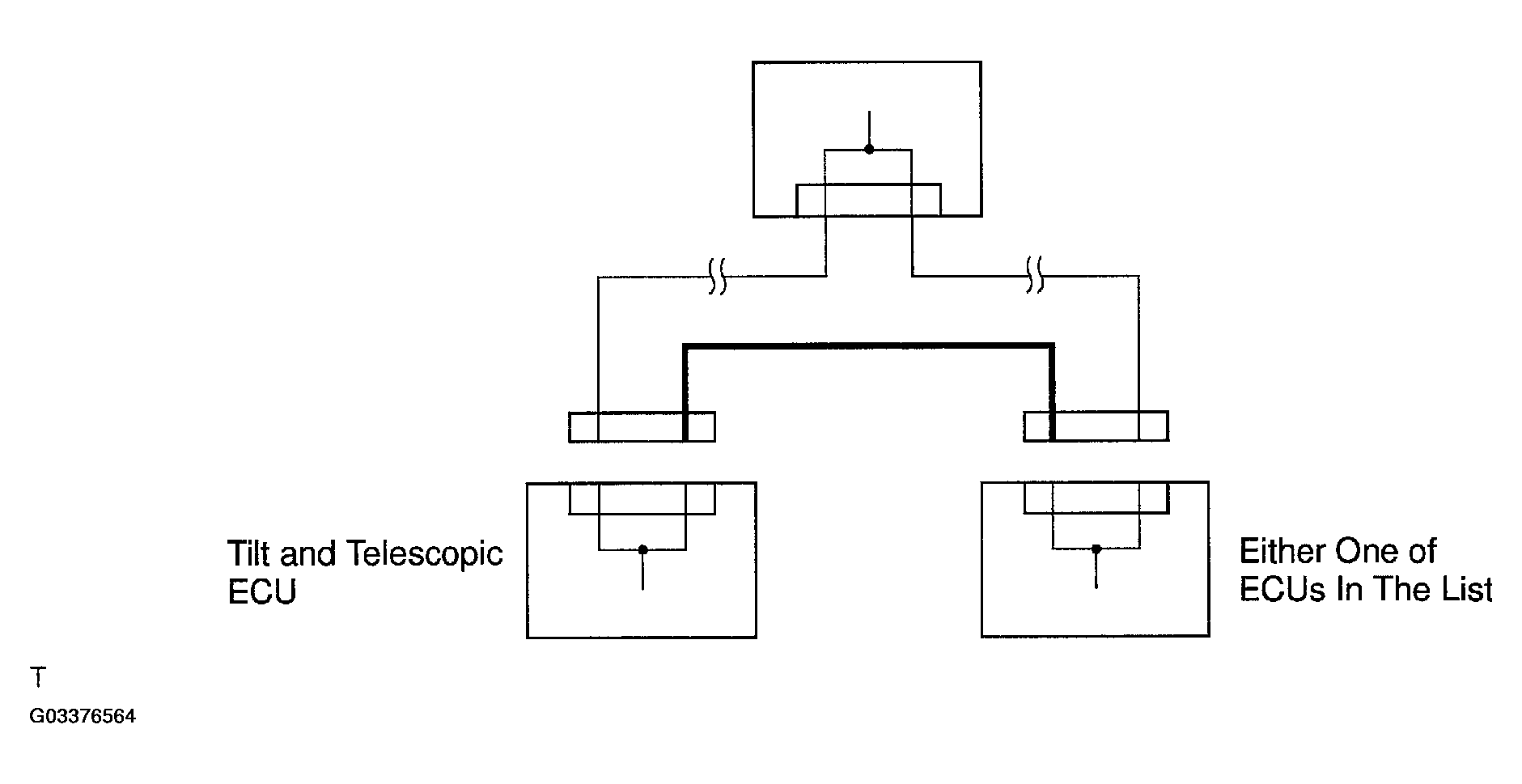

Fig 1: Checking Continuity Of Wire Harness Between Connectors

OK:

There is a continuity between the connectors.

HINT:

If there is OPEN in any wire harness, please repair it.

NG : Repair or replace wire harness.
OK : Replace tilt and telescopic ECU (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
