Parts Location

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

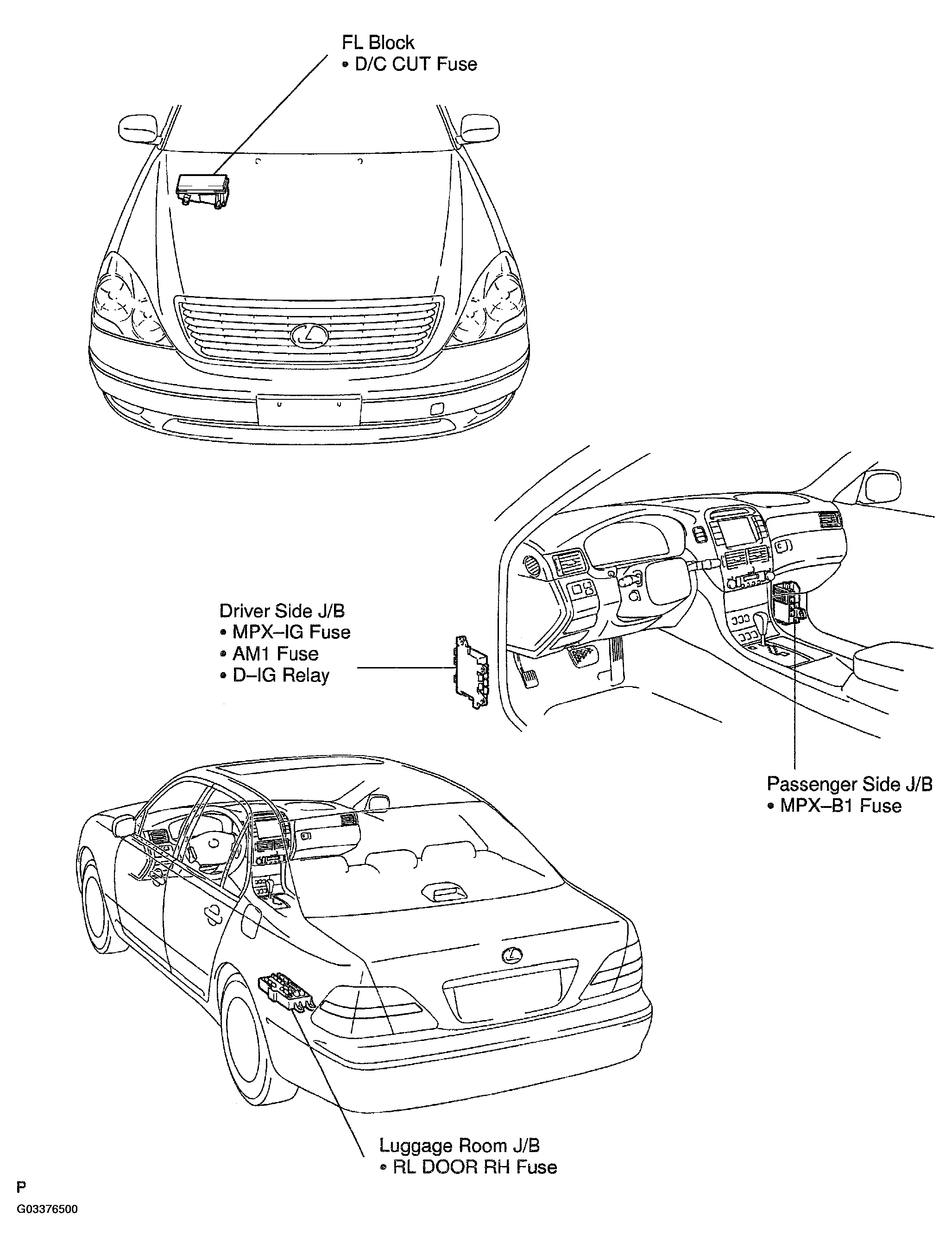

Fig 1: Identifying Component Location Of Rear Right Door Control System (1 Of 2)
G03376500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

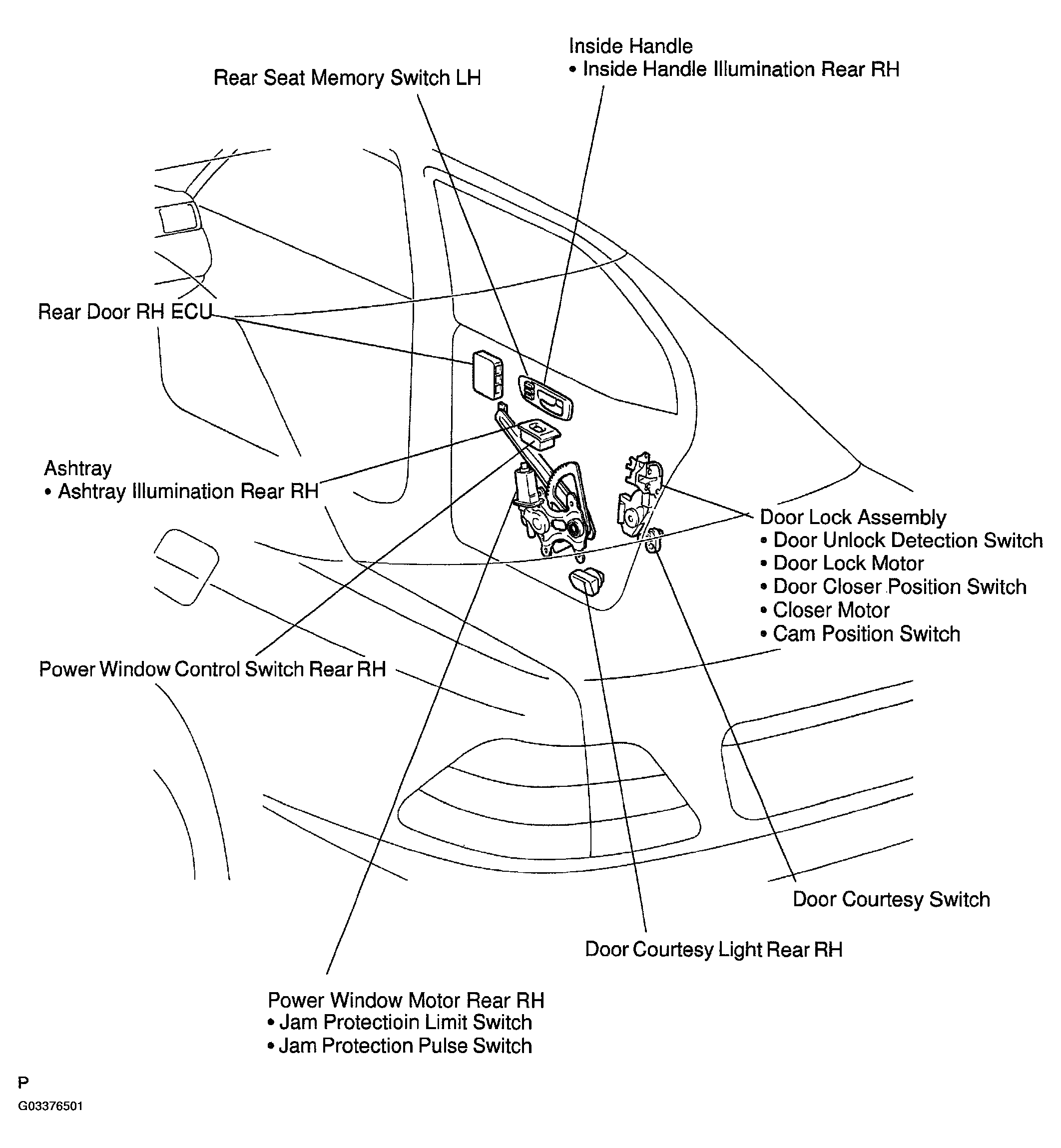

Fig 2: Identifying Component Location Of Rear Right Door Control System (2 Of 2)
G03376501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
