Door lock motor circuit: Wiring Diagram

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

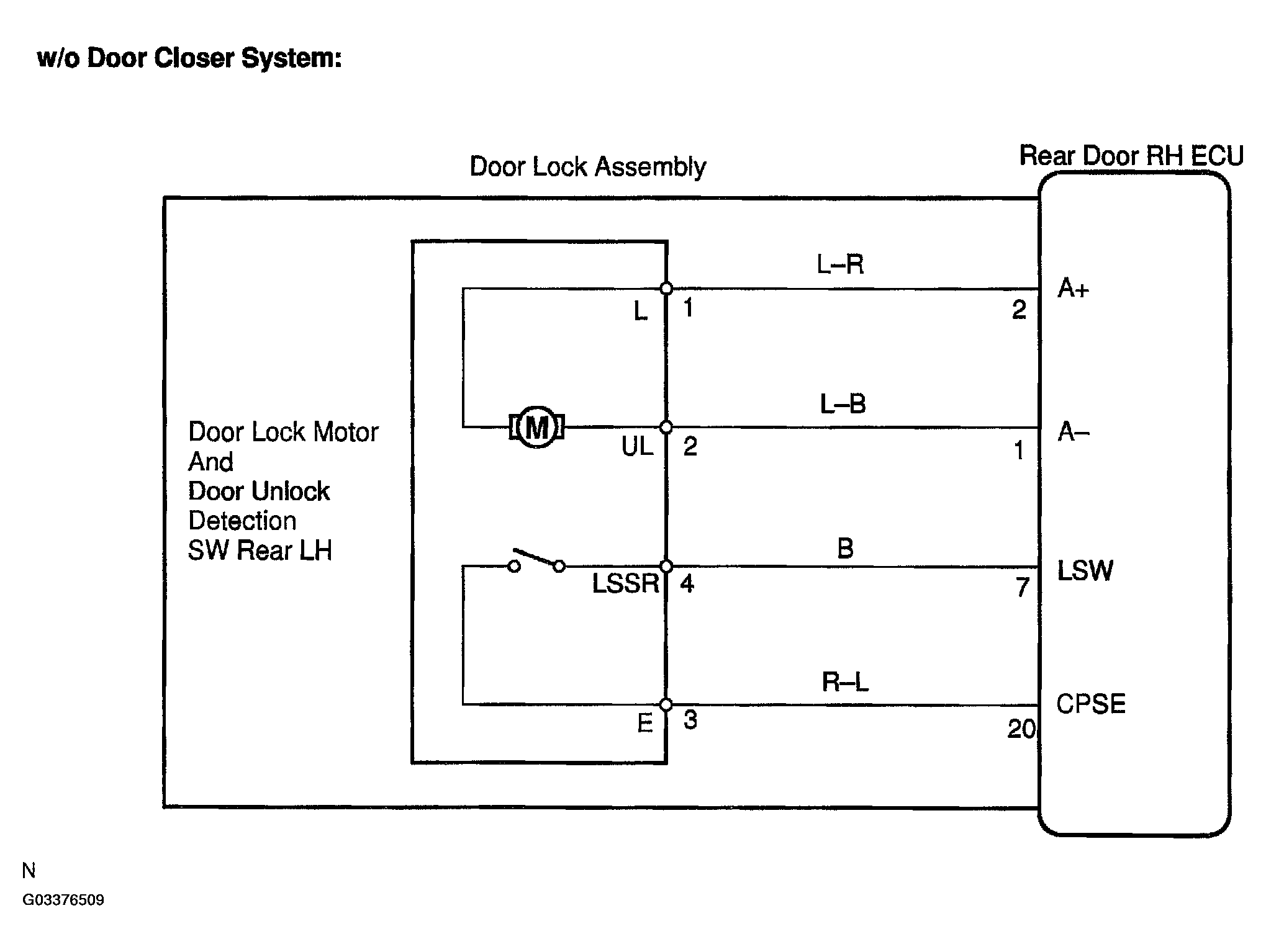

Fig 1: Wiring Diagram - Door Lock Motor Circuit (W/O Door Closer System)
G03376509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

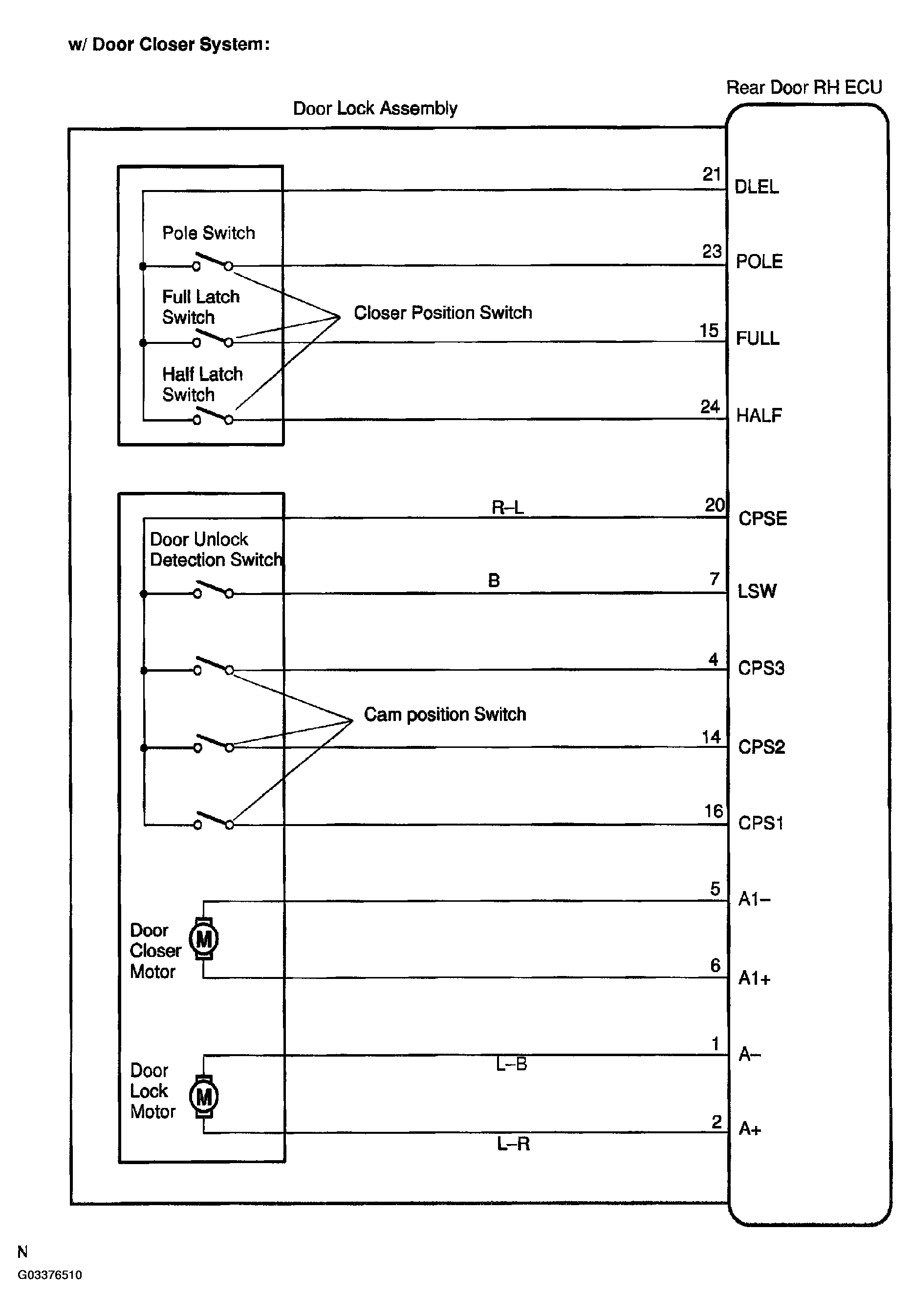

Fig 2: Wiring Diagram - Door Lock Motor Circuit (W/ Door Closer System)
G03376510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
