DTC B1236 Jam Protection Pulse Switch Circuit on Rear Right Door: Wiring Diagram

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

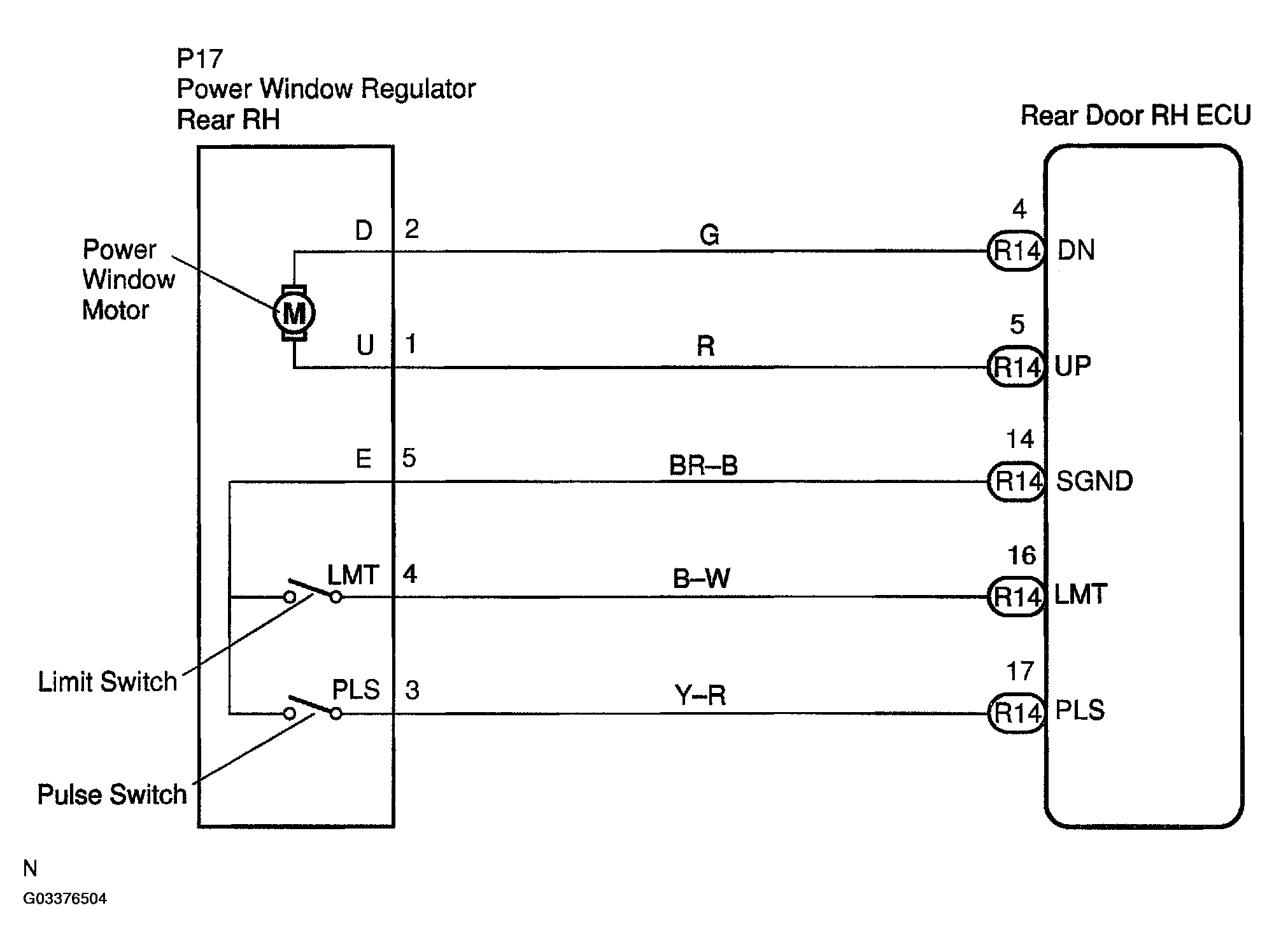

Fig 1: Wiring Diagram - Rear Door RH ECU
G03376504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
