DTC B1238 Jam Protection Pulse Switch Circuit on Rear Left Door: Wiring Diagram

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

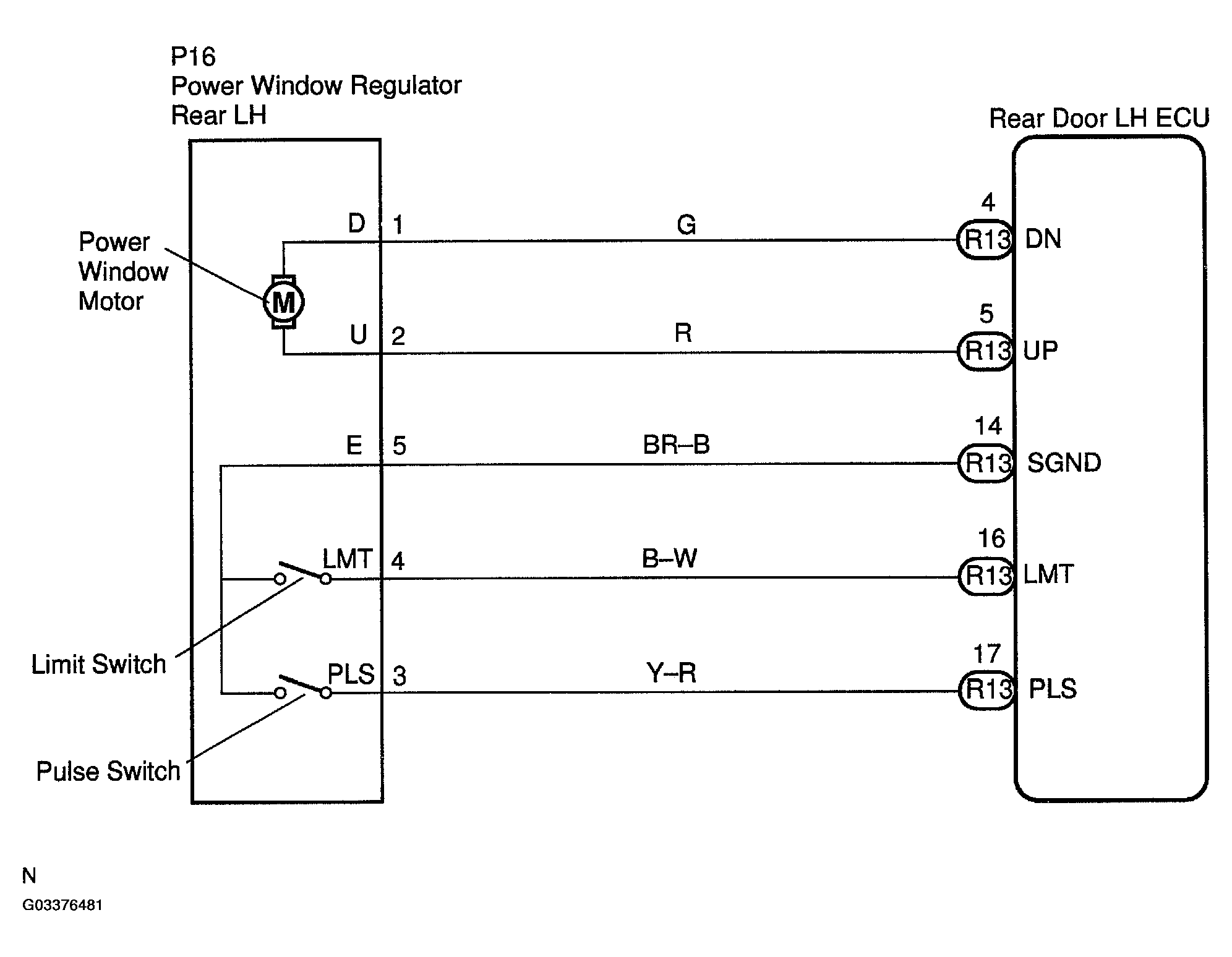

Fig 1: Wiring Diagram
G03376481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
