Door lock motor circuit: Wiring Diagram

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

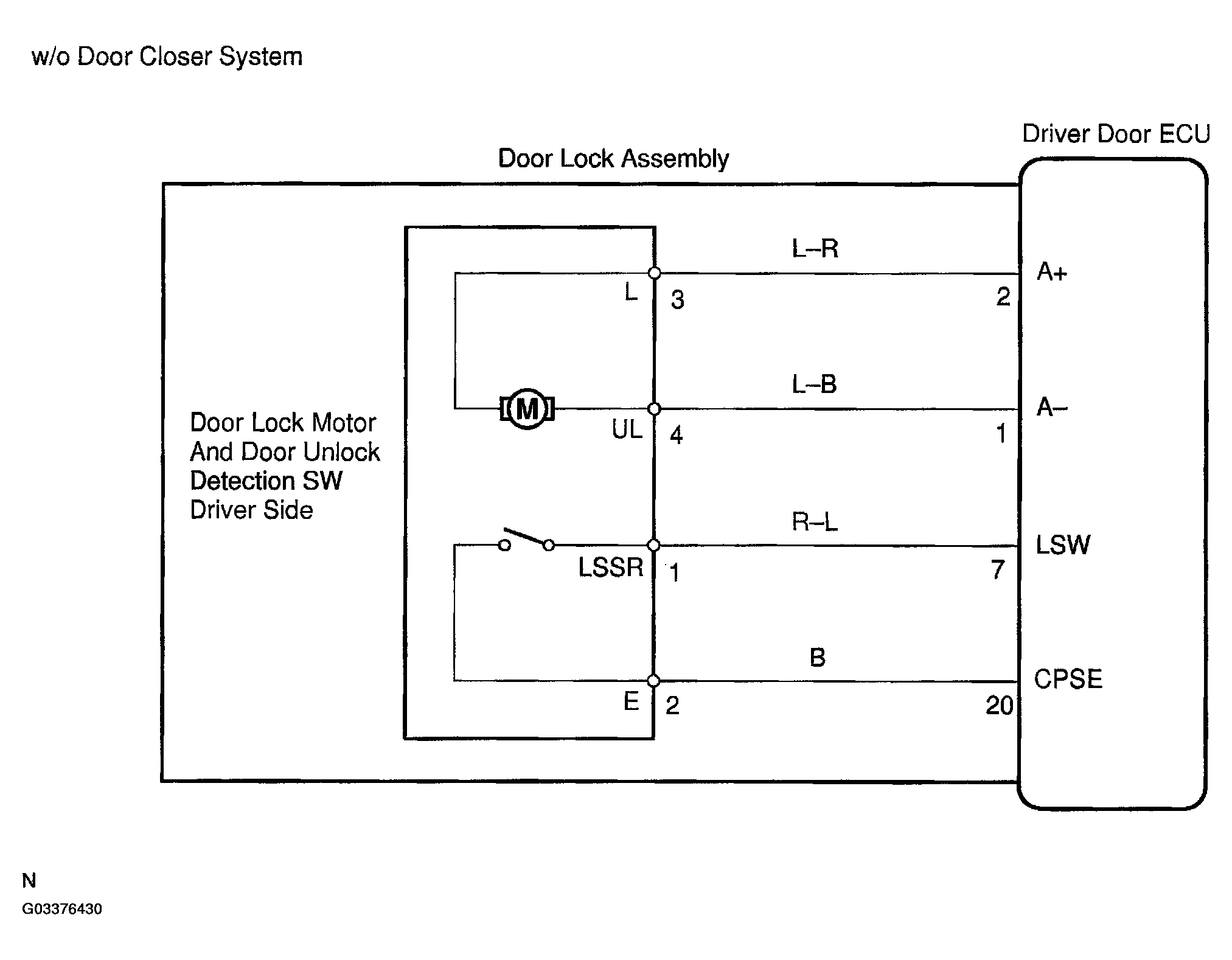

Fig 1: Door Lock Motor Wiring Diagram (1 Of 2)
G03376430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

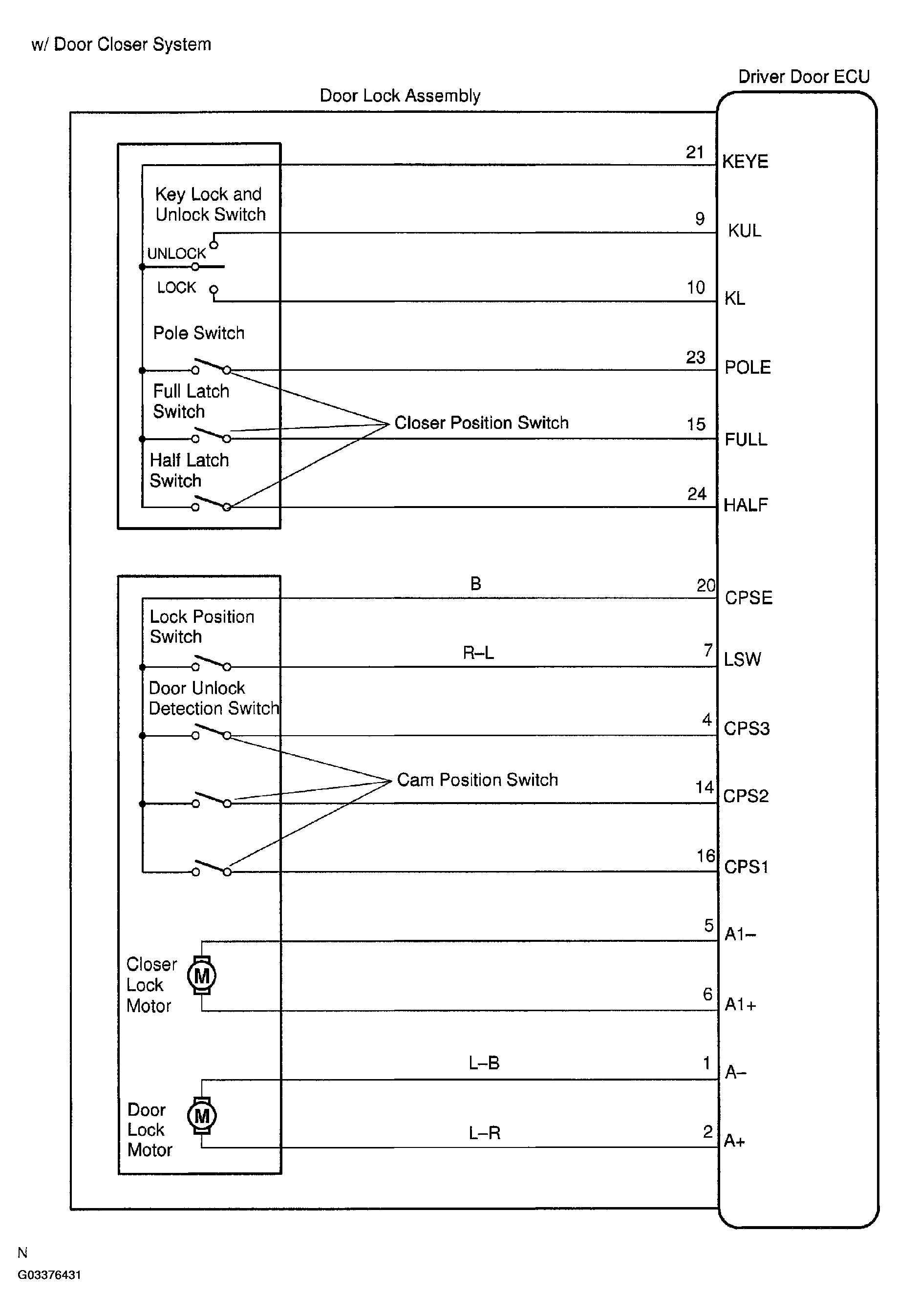

Fig 2: Door Lock Motor Wiring Diagram (2 Of 2)
G03376431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
