| 1 (AIRBAG) |
- |
Multiple communication circuit |
- |
| 2 - 7 (WIP - GND) |
- |
Ignition switch ON |
10 - 14 V |
| 4 - 7 (ACC - GND) |
- |
Ignition switch ACC or ON |
10 - 14 V |
| 5 - 7 (MPX-B - GND) |
- |
Constant |
10 - 14 V |
| 6 - 7 (B/ANC - GND) |
- |
Constant |
10 - 14 V |
| 7 - Body ground (GND - Body ground) |
- |
Constant |
Below 1 V |
| 10 - 7 (MPX-IG - GND) |
- |
Ignition switch ON |
10 - 14 V |

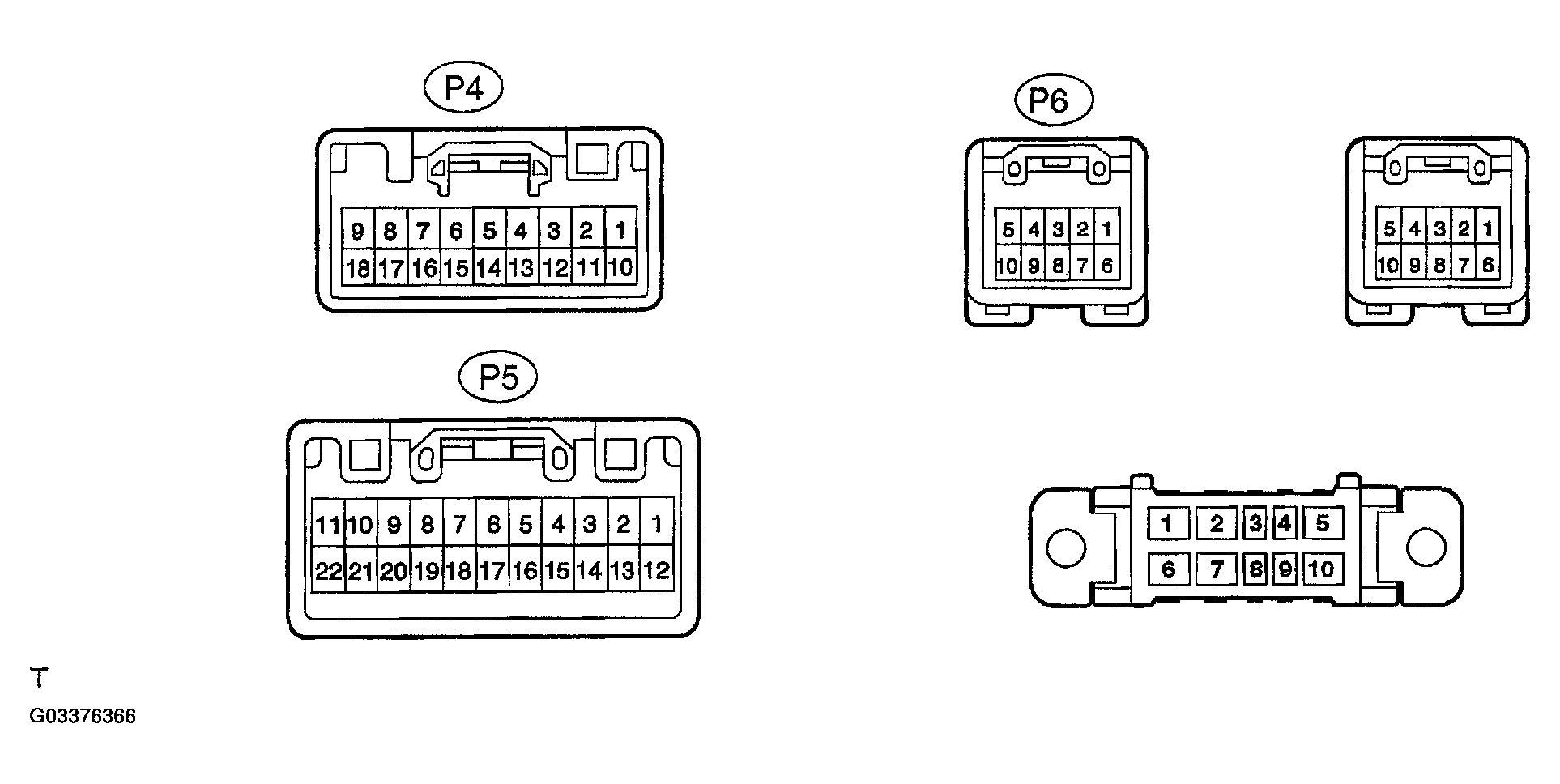

| P4-1 - P5-11 (S/S - GND1) |
P - W - B |
Ignition switch ON and wiper switch INT |
Voltage change 12 V - Below 1 V |
| Ignition switch OFF or wiper switch OFF |
Below 1 V |
| Ignition switch ON and washer switch ON OFF |
10 - 14 V (for 2.5 sec.) |
| P4-2 - P5-11 (+2 - GND1) |
L-R - W-B |
Wiper switch OFF |
Below 1 V |
| Wiper switch INT, AUTO |
Below 1 V |
| Wiper switch LO |
Below 1 V |
| Wiper switch HI |
10 - 14 V |
| P4 - 4 (MPX-) |
GR-B |
Multiplex communication circuit |
- |
| P4-13 - P5-11 (HDLV - GND1) |
R-B - W-B |
Ignition switch OFF or Light control switch HEAD and DRL system is OFF |
10 - 14 V |
| Ignition switch ON and light control switch HEAD or DRL system is ON |
Below 1 V |
| P4-14 - P5-11 (ALTL - GND1) |
P-G - W-B |
Engine running |
Below 1 V |
| Engine stopped |
10 - 14 V |
| P4-15 - P5-11 (WNG - GND1) |
L-W-B |
Headlight beam level control system is normal condition |
10 - 14 V |
| Headlight beam level control system is warning condition |
Below 1 V |
| P4-16 - P5-11 (PIND - GND1) |
R-W - W-B |
Brake pad wear indicator switch ON |
10 - 14 V |
| Brake pad wear indicator switch OFF |
Below 1 V |
| P5-5 - P5-11 (CSPT - GND1) |
W-L - W-B |
Ignition switch ACC or ON |
Below 1 V |
| Ignition switch OFF |
10 - 14 V |
| P5-7 - P5-11 (FSPT - GND1) |
V - W-B |
Each door are opened |
Below 1 V |
| All door are closed |
10 - 14 V |
| P5-9 - P5-11 (ILE - GND1) |
V-W - W-B |
Each door are opened |
Below 1 V |
| All door are closed |
10 - 14 V |
| P5-11 - Body ground (GND1 - Body ground) |
W-B |
Constant |
Below 1 V |
| P5-12 - P5-11 (BACK - GND1) |
L() - W-B |
Shift lever R position |
10 - 14 V |
| Shift lever except R position |
Below 1 V |
| P5-14 - P5-11 (2S - GND1) |
W-G - W-B |
Wiper switch OFF |
10 - 14 V |
| Wiper switch INT, AUTO |
10 - 14 V |
| Wiper switch LO |
10 - 14 V |
| Wiper switch HI |
Below 1 V |
| P5-15 - P5-11 (LCTY - GND1) |
Y-G - W-B |
Rear right door opened |
Below 1 V |
| Rear right door is closed |
10 - 14 V |
| P5-16 - P5-11 (RCTY - GND1) |
V-G - W-B |
Rear right door opened |
Below 1 V |
| Rear right door closed |
10 - 14 V |
| P5-17 - P5-11 (SN0W-GND1) |
L-R - W-B |
SNOW switch (ECT pattern select switch) ON |
Below 1 V |
| SNOW switch (ECT pattern select switch) OFF |
10 - 14 V |
| P5-18 - P5-11 (PWR - GND1) |
GR-L - W-B |
PWR switch (ECT pattern select switch) ON |
Below 1 V |
| PWR switch (ECT pattern select switch) OFF |
10 - 14 V |
| P5-19 - P5-11 (RRSW-GND1) |
Y () - W-B |
Rear seat return switch ON |
Below 1 V |
| Rear seat return switch OFF |
10 - 14 V |
| P6-1 - P5-11 (REV - GND1) |
L-W - W-B |
Shift lever R position |
Below 1 V |
| Shift lever except R position |
10 - 14 V |
| P6-2 - P5-11 (PBIL - GND1) |
G-W-B |
Passenger door is open |
2 - 6 V |
| Passenger door is closed |
Below 1 V |
| P6-3 - P5-11 (PBM+ - GND1) |
L-B - W-B |
Power shoulder belt anchor switch UP |
10 - 14 V |
| Power shoulder belt anchor switch DOWN |
Below 1 V |
| P6-4 - P5-11 (PBM - GND1) |
Y-B - W-B |
Power shoulder belt anchor switch DOWN |
10 - 14 V |
| Power shoulder belt anchor switch UP |
Below 1 V |
