Inspection Procedure

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.

Check the mirror switch using LEXUS hand-held tester.
PREPARATION:

Connect the LEXUS hand-held tester to the DLC3.

CHECK:

Check the mirror switch using DATA LIST.

OK:

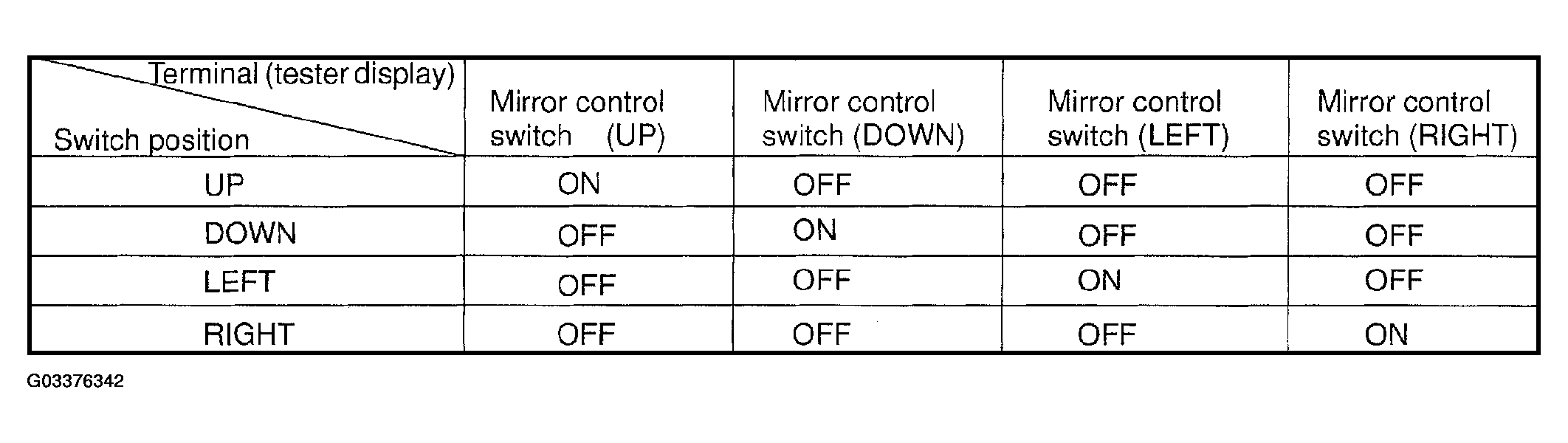

Mirror control switch

Fig 1: Identifying Mirror Control Switch Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

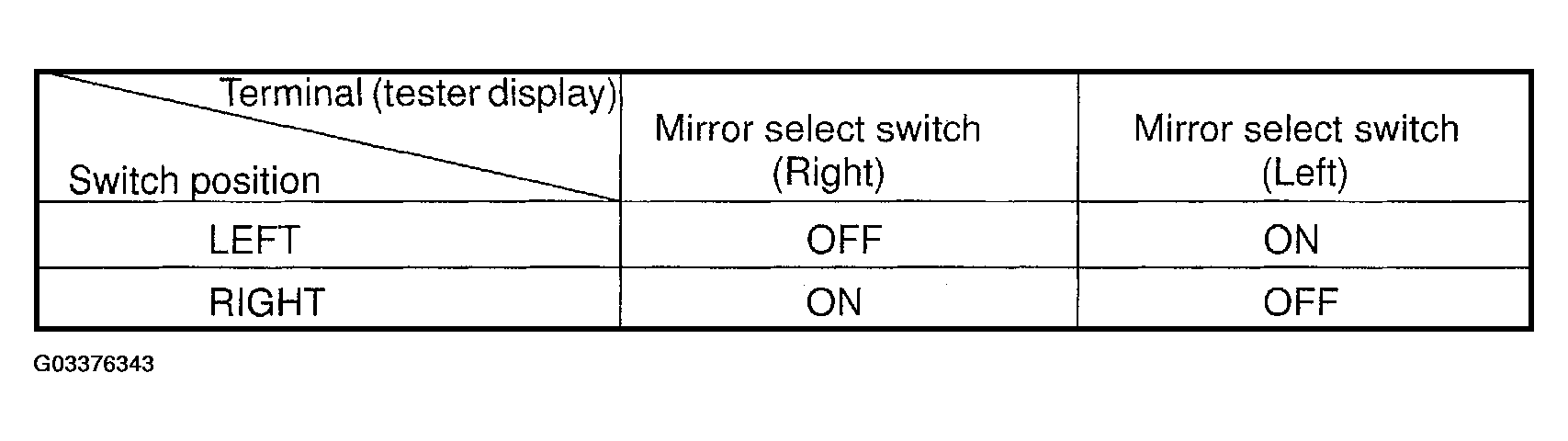

Mirror select switch

Fig 2: Identifying Mirror Select Switch Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK : Proceed to next circuit inspection shown on problem symptoms table (See PROBLEM SYMPTOMS TABLE ).
2. NG : Go to next step.
Check the mirror switch (See INSPECTION ).
1. NG : Replace the mirror switch.
2. OK : Go to next step.
Check wire harness and connector between mirror switch and driver side J/B ECU (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
1. NG : Repair or replace wire harness or connector.
2. OK : Proceed to next circuit inspection shown on problem symptoms table (See PROBLEM SYMPTOMS TABLE ).
