Illumination (Door courtesy switch signal) Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

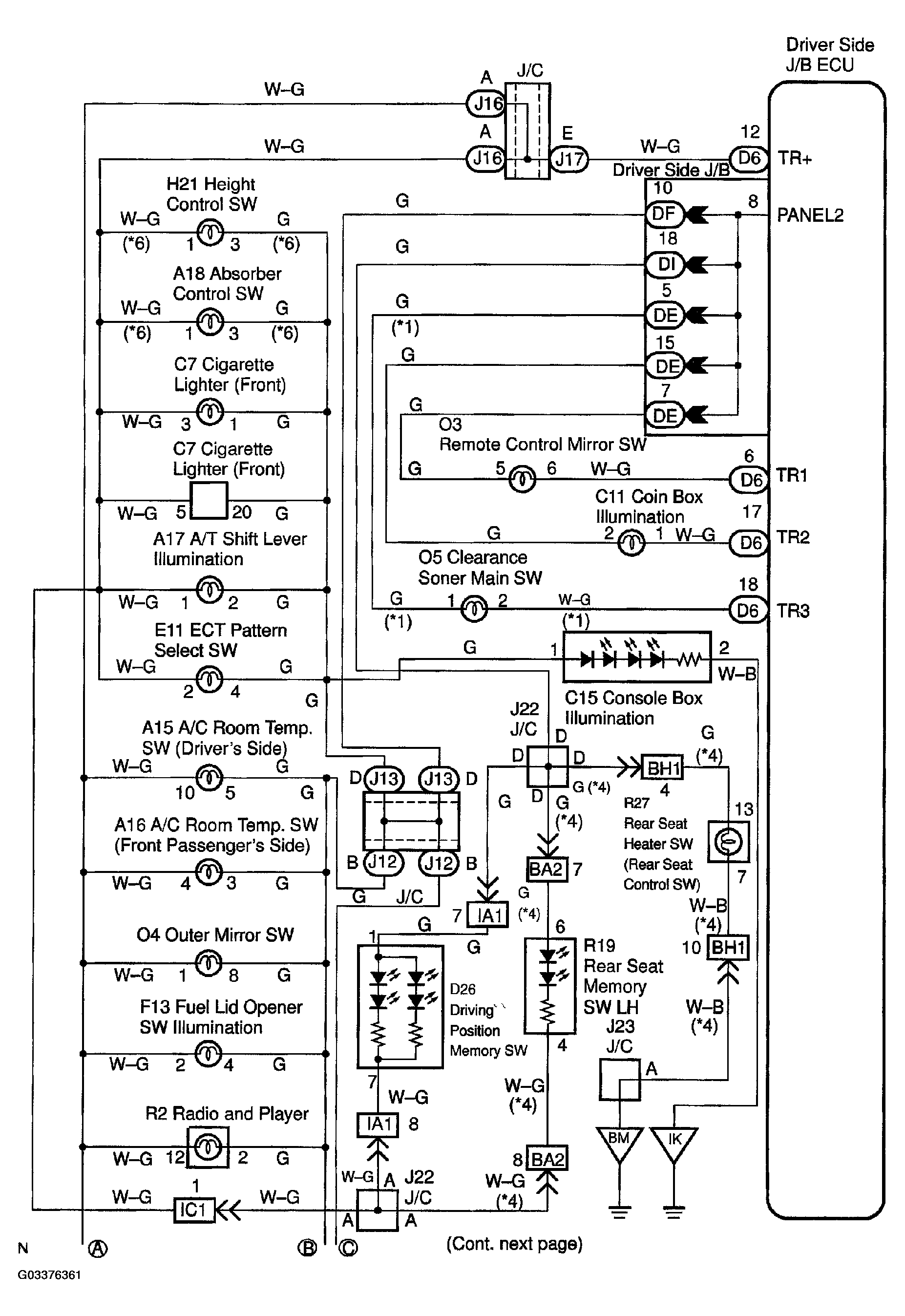

Fig 1: Identifying Illumination Circuit Wiring Diagram (1 Of 2)
G03376361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

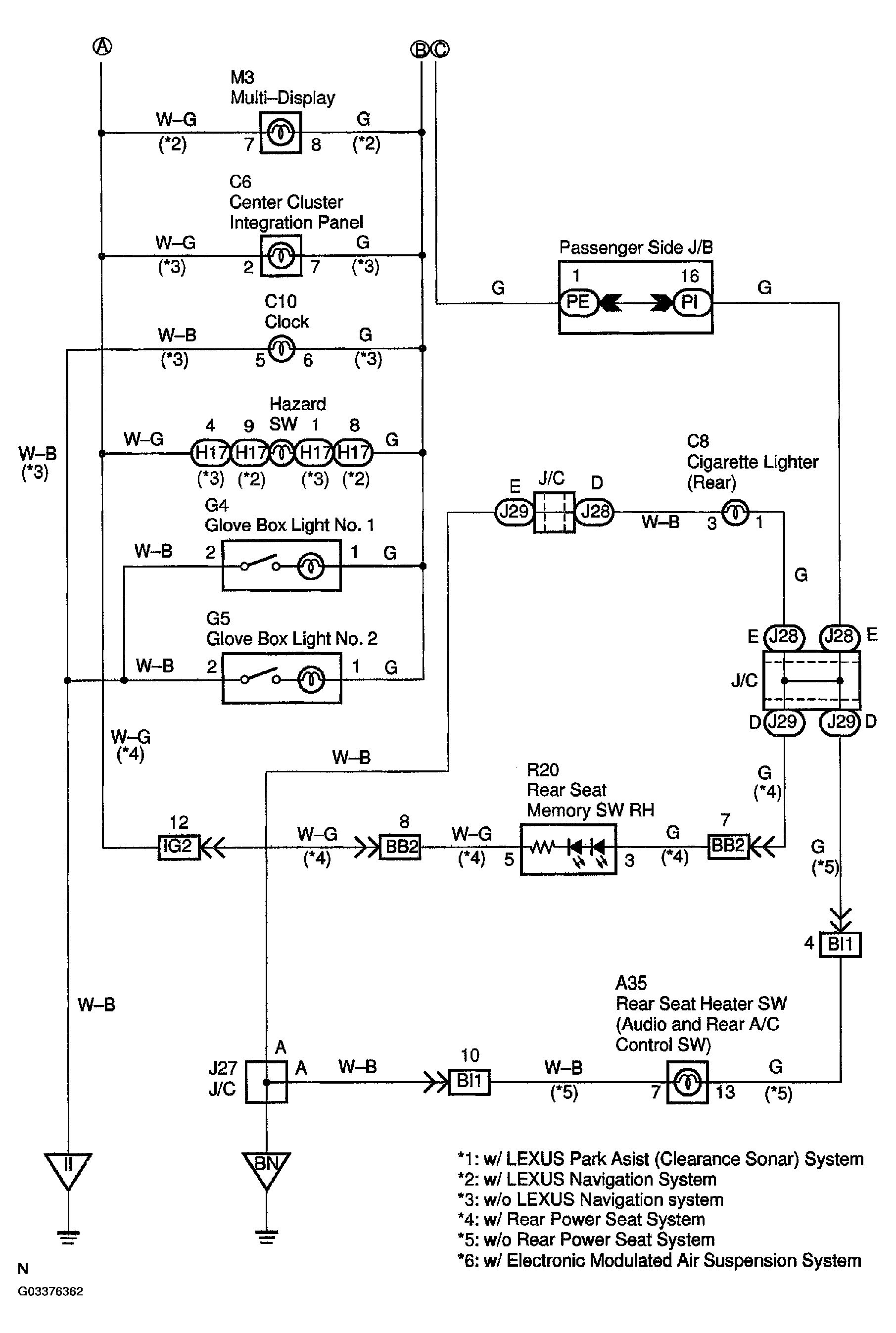

Fig 2: Identifying Illumination Circuit Wiring Diagram (2 Of 2)
G03376362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
