Engine Hood Courtesy Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

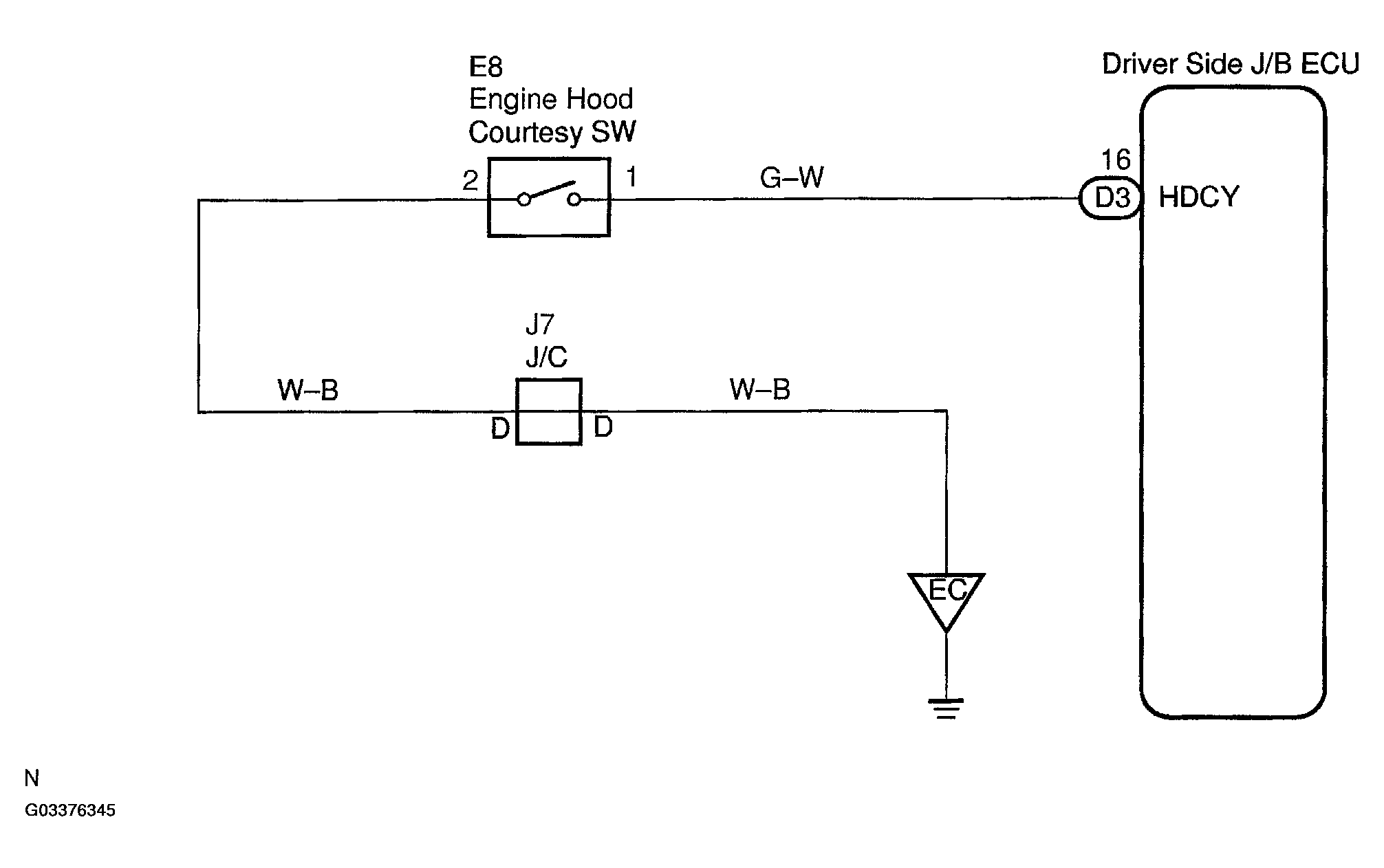

Fig 1: Identifying Engine Hood Courtesy Switch Circuit Wiring Diagram
G03376345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
