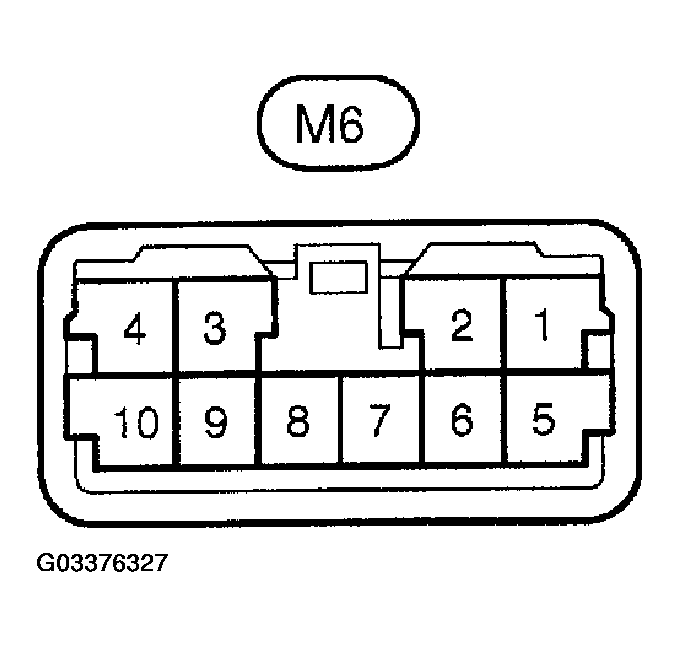

TERMINALS OF ECU
| Symbols (Terminals No.) | Wiring Color | Condition | STD Voltage (V) |
|---|---|---|---|
| DWN <-> E (M6-3 <-> M6-7) | R-B <-> WB | Sliding roof control switch TILT DOWN | 10 - 14 V |
| Others | Below 1 V | ||
| UP <-> E (M6-4 <-> M6-7) | R-Y <-> W-B | Sliding roof control switch TILT UP | 10 - 14 V |
| Others | Below 1 V | ||
| +B <-> E (M6-5 <-> M6-7) | L <-> W-B | Always | 10-14 V |
| E <-> Body ground (M6-7 <-> Body ground) | W-B <-> Body Ground | Always | 10 - 14 V |
| IG <-> E (M6-8 <-> M6-7) | LG-R <-> W-B | Ignition switch ON | 10 - 14 V |
| Ignition switch OFF or ACC | Below 1 V | ||
| OPN <-> E (M6-9 <-> M6-7) | G-B <-> W-B | Sliding roof control switch OPEN | 10 - 14 V |
| Others | Below 1 V | ||
| CLS <-> E (M6-10 <-> M6-7) | G-Y <-> W-B | Sliding roof control switch CLOSE | 10 - 14 V |
| Others | Below 1 V |
